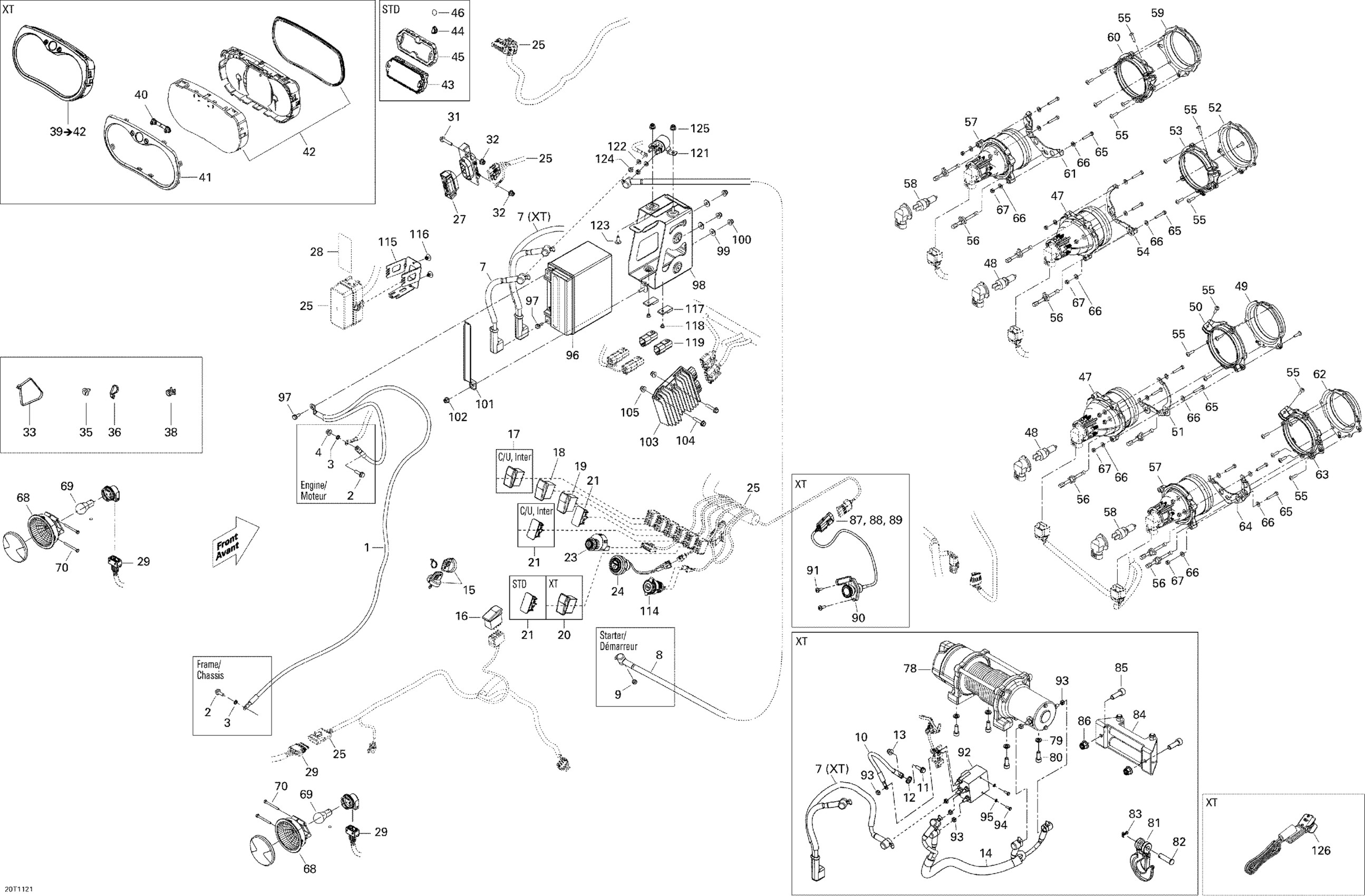

Can-Am Commander 800, 2011 10- Electrical System Diagram

#

Description
Price

1

GROUND CABLE - Call your local BRP dealership

710002147

Unavailable

2

Hex. Flange Screw M6 X 20

207662044

$2.00

3

Lock Washer Serrated M6

250200041

$1.15

4

Hex. Flange Nut M6

233061414

$1.68

5

Lock Washer Serrated M6

250200041

$1.15

6

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

7

POSITIVE CABLE - Call your local BRP dealership | STD, X

710002148

Unavailable

7

Winch Cable (-/+) | XT

710005123

$88.99

8

Positive Cable

710004383

$42.99

9

Elastic Stop Nut M6

232561414

$0.55

10

NEGATIVE CABLE - Call your local BRP dealership | XT

710004386

Unavailable

11

Hex. Flange Screw M6 X 20

207662044

$2.00

12

Lock Washer Serrated M6

250200041

$1.15

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Electrical Winch Cable | XT

710004387

$49.99

15

Black, Electronic Key

710000817

$63.49

15

Grey, Electronic Key

710002183

$63.49

16

Switch, Over ride

710002053

$19.49

17

Hi/Low Switch | Except Europe

710001725

$21.49

18

4X4 Switch

710001737

$31.99

19

PPS Sport Switch

710002199

$19.49

20

Switch Winch

710002052

$28.49

21

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

23

Ignition Switch

710008400

$78.49

24

Engine Start Button

710002594

$60.49

25

WIRING HARNESS ASSY - Call your local BRP dealership | Except Europe

710002540

Unavailable

27

Housing

710001996

$47.49

28

Decal

710002218

Unavailable

29

Rear Harness | Except Europe

710003219

$159.99

31

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Tie Wrap 368 mm

293750008

$1.04

35

Mount Dart

293730040

$1.04

36

Tie Wrap 94 mm | 4X4

293750001

$1.03

38

Tie-Rap 173 mm

293750009

$1.04

39

Speedometer Ass'y | XTP

710005075

$389.99

40

Speedometer Button | XTP

415129355

$15.80

41

Gauge Ring

415129348

$13.99

42

Lens | XTP

415129349

$24.49

43

Calibrated Speedometer | Includes 16 to 17

710003288

$349.99

44

Button

710001473

$13.71

45

Trim Ring Ass'y

710001183

$19.99

46

BRP Logo13 mm

704904615

$13.49

47

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

48

Halogen Bulb

415129249

$41.49

49

RH Low Front Housing

710001081

$19.99

50

RH Low Rear Housing

710001082

$12.99

51

RH Low Light Support

710001094

$9.09

52

LH Low Front Housing

710001083

$19.99

53

LH Low Rear Housing

710001084

$12.99

54

LH Low Light Support

710001037

$9.09

55

Phillips Screw K40 X 16

250000723

$0.98

56

Setting Screw

710001147

$12.71

57

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

58

Halogen Bulb

415129249

$41.49

59

RH High Front Housing

710001085

$19.99

60

RH High Rear Housing

710001086

$12.99

61

RH High Light Support

710001115

$5.29

62

LH High Front Housing

710001087

$19.99

63

LH High Rear Housing

710001088

$12.99

64

LH High Light Support

710001036

$5.29

65

Hex. Screw M4 X 25

207142544

$2.00

66

Flat Washer M5

234051410

$0.53

67

Elastic Stop Nut M4

232541414

$0.58

68

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

69

Bulb

520000758

$9.10

70

Hex. Screw K50 X 45

241154540

$2.11

78

WINCH - Call your local BRP dealership | XT

705003944

Unavailable

79

Socket Head Screw M8 X 20

205082044

$1.15

80

Lock Washer 8 mm

234181401

$0.92

81

Winch Hook Kit

705014949

$24.99

82

Clevis Pin

250400021

$13.18

83

Cotter Pin

250400022

$9.69

84

WINCH CABLE GUIDE - Call your local BRP dealership | XT

715001119

Unavailable

85

Not Available As Spare Part - Friction Washer

Unavailable

86

Hex. Flange Elastic Nut M10

233201414

$1.58

87

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.10

88

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

89

Clip

710000992

$4.29

90

Winch Connector

710001023

$51.99

91

Torx Screw K50 X 16

250000720

$1.69

92

Solenoid Kit | XT

715007084

$202.49

93

Elastic Stop Nut M6

232561434

$1.99

94

HEX. SCREW M4 X 10 - Call your local BRP dealership | XT

207141044

Unavailable

95

Lock Washer 4 mm

234141601

$1.15

96

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

97

Battery Bolt Kit

250000282

$7.29

98

Battery Support

710003129

$48.99

99

Flat Washer 6 mm

234062410

$0.77

100

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

101

Battery Holder

710001916

$21.99

102

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

103

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

104

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

105

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

114

DC Outlet

710001248

$37.99

115

Fuse Holder

710003335

$10.11

116

Pop Rivet 3/16"

293150103

$0.55

117

Clip

270000141

$11.49

118

Pop Rivet 3/16"

390402400

$0.35

119

Diagnostic Connector

278002704

$19.49

121

Starter Relay

710007777

$48.49

122

Lock Washer Helical M6

234161601

$1.15

123

Torx Screw M6 X 16

250000223

$2.11

124

Hex. Nut M6

232061600

$1.15

125

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

126

REMOTE CONTROL - Call your local BRP dealership | XT

710001002

Unavailable
