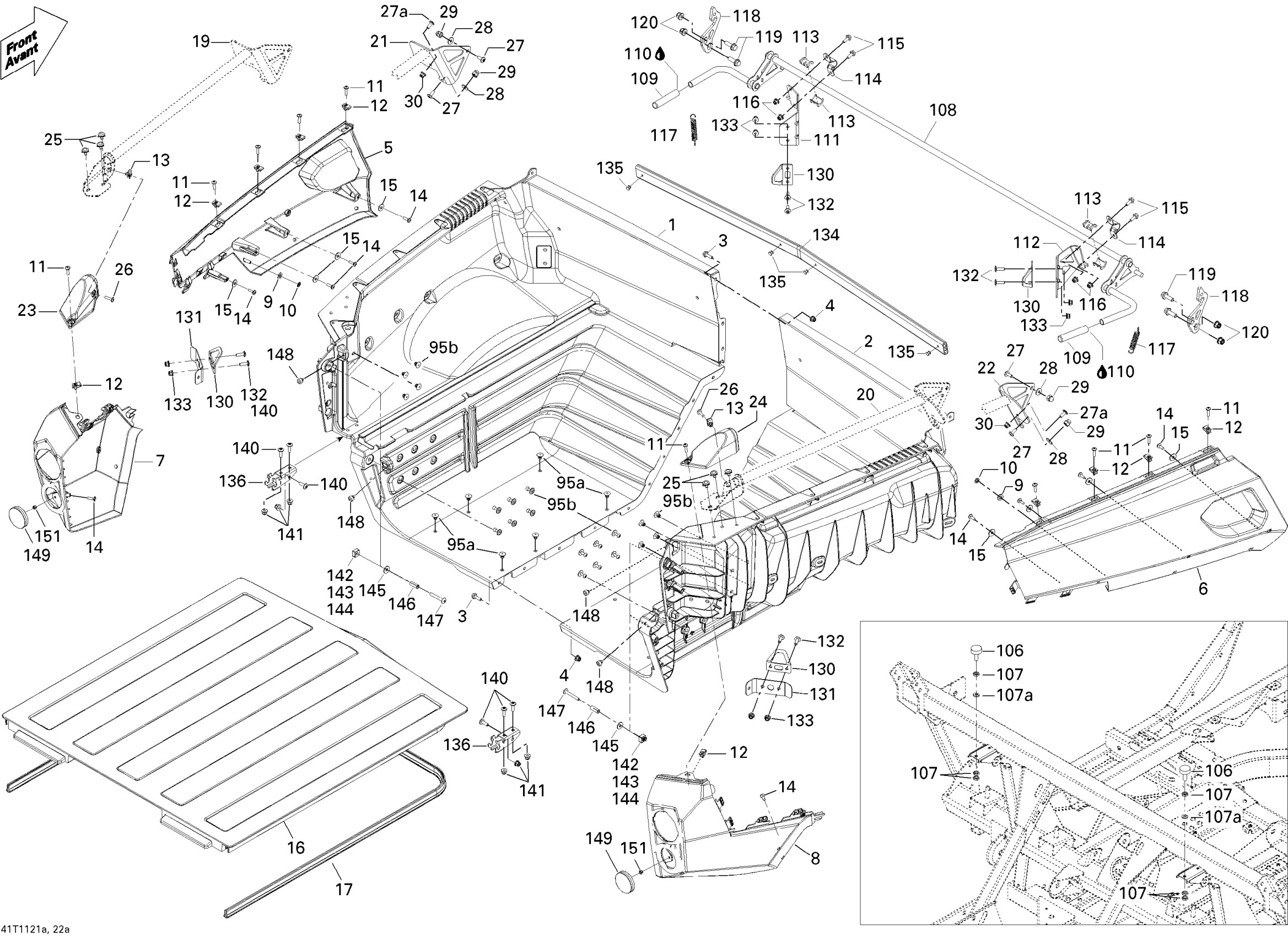

Can-Am Commander 800, 2011 09- Rear Cargo Box 1 Diagram

#

Description
Price

1

Left Box Kit

715002361

$214.99

2

RH Box Ass'y

715001257

$129.99

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5

Yellow LH Rear Fender | STD

708301242

$139.99

5

FENDER REAR L B-005 - Call your local BRP dealership | XT Camo

708300834

Unavailable

6

YELLOW RH REAR FENDER - Call your local BRP dealership | STD

708301243

Unavailable

6

FENDER REAR R B-005 - Call your local BRP dealership | XT Camo

708300835

Unavailable

7

LH Rear Facia

708301383

$23.99

8

RH Rear Facia

708301384

$23.99

9

Flat Washer 8 mm, Nylon

234081100

$1.39

10

Push Nut

732610072

$2.19

11

Torx Screw M5 X 20

250000724

$1.69

12

Panel Nut M5 X 0.8

250000958

$4.23

13

Panel Nut M5 X 0.8

250000958

$4.23

14

Torx Screw K50 X 16

250000720

$1.69

15

Stainless Steel Flat Washer

234062670

$2.11

16

Separator Pannel Ass'y | Includes 16 to 17

708300131

$279.99

17

Was 293250240 Neoprene Seal

219704451

$60.49

19

LH Welded Rail | XT

708300231

$74.99

20

RH Welded Rail | XT

708300232

$74.99

21

LH Painted Rail Cap | Except XT

708300333

$15.99

22

RH Painted Rail Cap | Except XT

708300334

$16.99

23

LH RAIL COVER - Call your local BRP dealership | XT

708300233

Unavailable

24

RH RAIL COVER - Call your local BRP dealership | XT

708300234

Unavailable

25

Pop Rivet 3/16 | XT

293150190

$5.89

26

Torx Screw M5 X 20

250000724

$1.69

27

Torx Truss Screw M6 X 16

250000721

$1.69

27a

Torx Screw M6 X 20

250000722

$1.68

28

Stainless Steel Flat Washer

234062670

$2.11

29

Domed Nut M6

232361493

$2.11

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

95a

Pop Rivet 3/16"

293150100

$1.09

95b

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

106

Frame Rubber Bumper

293720091

$9.39

107

Hex. Jam Nut M8

232180600

$0.67

107a

Lock Washer 8 mm

234181401

$0.92

108

LATCH LEVER ASS'Y - Call your local BRP dealership

708300491

Unavailable

109

Cap Latch Lever

708300358

$6.59

110

Loctite 406, 7 Oz

293800100

$36.99

111

LH Latch Lever Support

708300278

$9.69

112

RH Latch Lever Support

708300351

$9.69

113

Half Ring

705500033

$8.29

114

Clamp Reatiner

708300392

$2.68

115

Hex. Flange Screw M6 X 16

207661644

$0.74

116

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

117

Spring

708300454

$4.79

118

Box Retainer

708300136

$8.69

119

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.44

120

Hex. Flange Elastic Nut M8

233281414

$1.47

130

Retaining Plate

708300183

$9.69

131

Retaining Plate Support

708300206

$5.19

132

Torx Screw M6 x 25

250000284

$2.11

133

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

134

Front Support

708301633

$28.99

135

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

136

Upper Pivot Support

708300345

$4.79

140

Torx Screw M6 X 20

250000722

$1.68

141

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

142

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

143

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

144

Hex. Elastic Stop Nut M6

232561600

$1.15

145

Stainless Steel Flat Washer

234062670

$2.11

146

SPACER - Call your local BRP dealership

517304852

Unavailable

147

Torx Screw M6 X 45

250000215

$1.90

148

Rubber Bumper

293830005

$8.09

149

Red Reflector

705011221

$14.49

151

Elastic Stop Nut M5

232551414

$0.87
