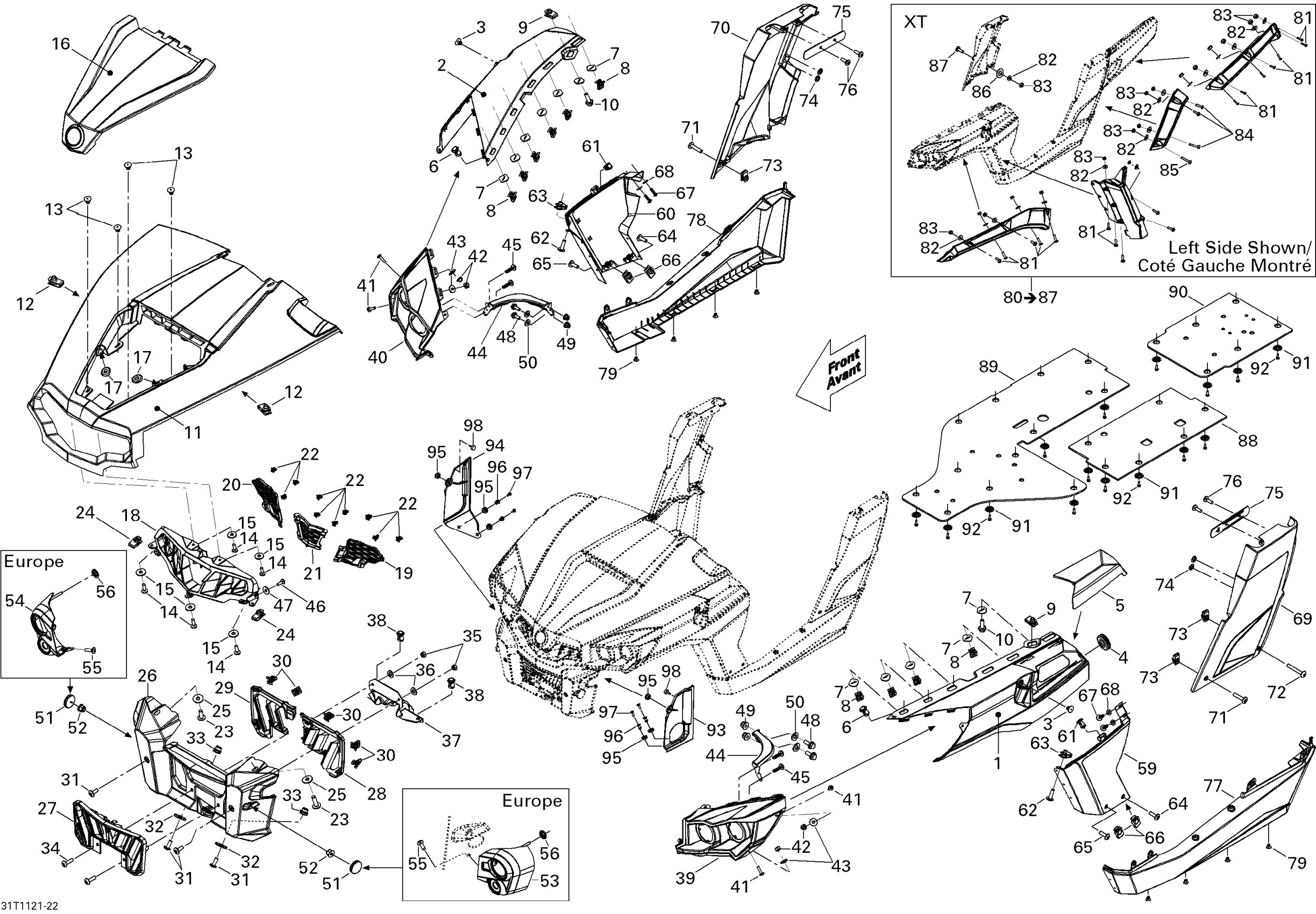

Can-Am Commander 800, 2011 09- Body And Accessories Diagram

#

Description
Price

1

YELLOW LH FRONT FENDER - Call your local BRP dealership | Yellow Models

705008194

Unavailable

1

FENDER FL B-005 - Call your local BRP dealership | Camo Models

705006768

Unavailable

2

YELLOW RH FRONT FENDER - Call your local BRP dealership | Yellow Models

705008195

Unavailable

2

FENDER FR B-005 - Call your local BRP dealership | Camo Models

705006769

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4

Grommet

517303756

$4.09

5

Yellow CVT Inlet Cover | Yellow Models

705004337

$16.49

5

CAMO CVT INLET COVER - Call your local BRP dealership | Camo Models

705004382

Unavailable

6

Tuflok Plastic Rivet

293150230

$1.47

7

Support Plate

705003841

$0.99

8

Edge Clip

517302785

$0.88

9

Panel Nut M6 X 1.0

250100198

$2.11

10

Hex. Flange Screw M6 X 20

207662044

$2.00

11

HOOD B-190 - Call your local BRP dealership | Yellow Models, Black Models

705008187

Unavailable

11

HOOD B-005 - Call your local BRP dealership | Camo Models

705004380

Unavailable

12

Panel Nut M6 X 1.0

250100198

$2.11

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

14

Torx Screw K50 X 16

250000720

$1.69

15

Stainless Steel Flat Washer

234062670

$2.11

16

YELLOW REMOVABLE HOOD - Call your local BRP dealership | Yellow Models

705007072

Unavailable

16

HOOD B-005 - Call your local BRP dealership | Camo Models

705007075

Unavailable

17

Oval Washer

705005156

$4.97

18

FASCIA UP B-160 - Call your local BRP dealership

705003629

$20.99

19

LH Upper Facia Protector

705004350

$4.09

20

RH Upper Facia Protector

705004351

$4.09

21

Center Upper Facia Protector

705004336

$4.09

22

Edge Clip

517302785

$0.88

23

Torx Screw M6 X 20

250000722

$1.68

24

Panel Nut M6 X 1.0

250100198

$2.11

25

Flat Washer 8 mm

234082410

$1.47

26

Black Front Facia

705008689

$104.99

27

Lower Front Facia Protector

705004755

$18.49

28

LH Lower Rear Facia Protector

705004819

$18.49

29

RH Lower Rear Facia Protector

705004820

$18.49

30

Edge Clip

517302785

$0.88

31

Torx Screw M6 X 16

250000755

$0.87

32

Stainless Steel Flat Washer

234062670

$2.11

33

Threaded Insert M6 X 1.0

250100242

Unavailable

34

Hex Torx Truss M8 X30

250000745

$3.17

35

Hex. Nut M8

232081414

$0.72

36

Flat Washer 8 mm

234081410

$0.83

37

Bottom Deflector | Except XT Models

705003399

$14.99

38

Tuflok Plastic Rivet

293150230

$1.47

39

LH Front Facia

705002885

$74.99

40

RH Front Facia

705002886

$74.99

41

Torx Truss Screw M6 X 30

250000843

$2.11

42

Elastic Stop Nut M6

232561434

$1.99

43

Stainless Steel Flat Washer

234062670

$2.11

44

Facia Front Support

705002891

$38.99

45

Truss Head Torx Screw K50 X 20

250000297

$2.11

46

Torx Screw K50 X 16

250000720

$1.69

47

Stainless Steel Flat Washer

234062670

$2.11

48

Hex. Flange Screw M6 X 16

207661644

$0.74

49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

50

Stainless Flat Washer M6

234061600

$0.33

51

Amber Reflector | Except Europe Model

705011222

$14.49

52

Hex. Flange Elastic Nut M5

233251414

$1.04

53

LH FLASHER CAP - Call your local BRP dealership | Europe

705008676

Unavailable

54

RH Flasher Cap | Europe

705003628

$12.69

55

Torx Screw K50 X 16

250000720

$1.69

56

Push Nut

389804300

$0.53

59

YELLOW LH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007846

Unavailable

59

PANEL_BODY FL B-005 - Call your local BRP dealership | Camo Models

705006378

Unavailable

60

YELLOW RH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007845

Unavailable

60

PANEL_BODY FR B-005 - Call your local BRP dealership | Camo Models

705006379

Unavailable

61

Tuflok Plastic Rivet

293150230

$1.47

62

Torx Screw M6 X 20

250000722

$1.68

63

Panel Nut M6 X 1.0

250100198

$2.11

64

Torx Truss Screw M6 X 20

250000350

$5.29

65

Torx Truss Screw M6 X 20

250000350

$5.29

66

Panel Nut M6 X 1.0

250100198

$2.11

67

Truss Head Torx Screw K50 X 20

250000297

$2.11

68

Flat Washer M5

234051410

$0.53

69

YELLOW LH REAR LATERAL PANEL - Call your local BRP dealership | Yellow Models

705007864

Unavailable

69

PANEL_BODY REAR L B-005 - Call your local BRP dealership | Camo Models

705006122

Unavailable

70

Yellow RH Rear Lateral Panel | Yellow Models

705007865

$104.99

70

PANEL_BODY REAR R B-005 - Call your local BRP dealership | Camo Models

705006123

Unavailable

71

Torx Truss Screw M6 X 30

250000843

$2.11

72

Torx Screw M6 X 45

250000215

$1.90

73

Panel Nut M6 X 1.0

250100198

$2.11

74

PUSH NUT - Call your local BRP dealership

250100129

Unavailable

75

Support Plate

705004261

$13.49

76

Torx Screw K50 X 16

250000720

$1.69

77

LH Lateral Middle Panel | STD

705006991

$73.99

77

LH Middle Side Pannel | XT

705006993

$73.99

78

RH Lateral Middle Panel | STD

705006992

$73.99

78

RH Middle Side Pannel | XT

705006994

$73.99

79

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

80

FENDER EXTENSION KIT - Call your local BRP dealership | Includes 80 to 87

715002451

Unavailable

81

Torx Truss Screw M6 X 30

250000843

$2.11

82

Stainless Steel Flat Washer

234062670

$2.11

83

Elastic Stop Nut M6

232561434

$1.99

84

Torx Truss Screw M6 X 20

250000350

$5.29

85

Torx Truss Screw M6 X 30

250000843

$2.11

86

Hardened Washer

706200281

$2.85

87

Torx Truss Screw M6 X 20

250000350

$5.29

88

LH PROTECTOR PLATE - Call your local BRP dealership

705007883

Unavailable

89

RH PROTECTOR PLATE - Call your local BRP dealership

705006075

Unavailable

90

Rear Protector Plate

705007227

$31.99

91

Cup | Package Hunter

705007171

$7.89

92

Hexagonal Head Screw

210262050

$2.11

93

LH Deflector | Except XT Models

705002895

$19.99

93

LH Deflector | XT

705005113

$16.99

94

RH Deflector

705002894

$19.99

95

Grommet

414036300

$2.79

96

Knob

517303439

$4.55

97

Torx Screw K50 X 16

250000720

$1.69

98

Rubber Stopper

708000759

$4.19
