Description

Price

1

Steering Column

709401389

$199.99

2

Steering Wheel | STD

709400650

$137.49

3

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

$194.99

4

Hex. Flange Elastic Nut M12

233221414

$7.69

5

Can-Am Logo

704904274

$12.99

6

Steering Shaft

709401167

$48.99

7

O-Ring

293300144

$3.82

8

Synthetic Grease, 400 G

293550010

Unavailable

9

Steering Bushing

709402725

$3.28

10

Painted Steering Wheel Support

709401391

$85.99

11

Bushing

705600799

$3.72

12

Bushing

293900106

$4.55

13

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

14

Hex. Flange Elastic Nut M8

233281414

$1.47

15

Hex. Screw M10 X 35

207103544

$1.58

16

Elastic Stop Nut M10

232500416

$1.90

17

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

207583586

Unavailable

18

Hex. Elastic Flange Nut M8

233281416

$1.48

19

Hex. Flange Elastic Nut M12

233221414

$7.69

20

Adjustment Cylinder

709402506

$72.99

21

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000649

Unavailable

22

Elastic Stop Nut M6

232561414

$0.55

23

Steering Center | STD

709400780

$13.49

24

Phillips Screw K40 X 16

250000723

$0.98

25

RH Ball Joint

709402302

$36.99

26

Hardened Washer

706200281

$2.85

27

Nut M12

250100099

$2.09

28

Cotter Pin

211400013

$0.37

29

Steering Ass'y | Includes 29 to 31

709401185

$360.49

30

LH BOOT KIT - Call your local BRP dealership

715900077

Unavailable

31

RH BOOT KIT - Call your local BRP dealership

715900078

Unavailable

32

Hex. Flange Screw M8 X 95

207689534

$4.23

33

Hex. Flange Elastic Nut M8

233281414

$1.47

34

Hex. Flange Screw M8 X 20

207682044

$1.15

35

Cluster Support | STD

709400760

$21.99

36

Speedometer Cover

709400514

$16.99

37

Latch Indicator Cover

709400573

$11.99

38

Truss Head Torx Screw K50 X 20

250000297

$2.11

39

Torx Truss Screw M6 X 20

250000350

$5.29

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

Upper Cluster Cover | X, XT

707900124

$16.49

42

Cluster Support | X, XT

707900013

$16.49

43

Panel Nut M6 X 1.0

250100198

$2.11

44

Torx Truss Screw M6 X 16

250000721

$1.69

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

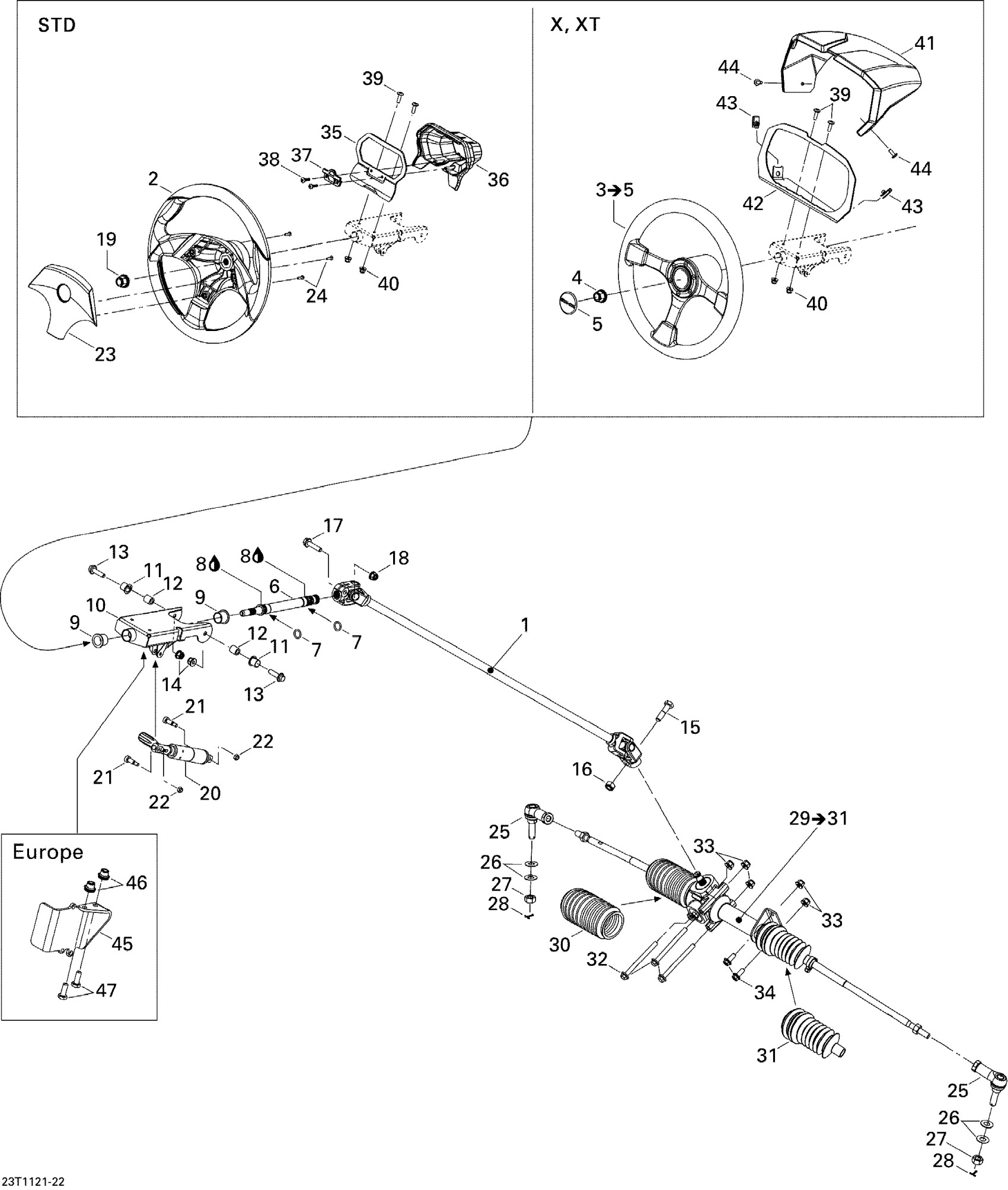

Can-Am Commander 800, 2011 07- Steering Diagram

Steering Column

Steering Wheel | STD

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

Hex. Flange Elastic Nut M12

Can-Am Logo

Steering Shaft

O-Ring

Synthetic Grease, 400 G

Steering Bushing

Painted Steering Wheel Support

Bushing

Bushing

Hex. Flange Screw M8 X 30 | DS 650 X

Hex. Flange Elastic Nut M8

Hex. Screw M10 X 35

Elastic Stop Nut M10

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

Hex. Elastic Flange Nut M8

Hex. Flange Elastic Nut M12

Adjustment Cylinder

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

Elastic Stop Nut M6

Steering Center | STD

Phillips Screw K40 X 16

RH Ball Joint

Hardened Washer

Nut M12

Cotter Pin

Steering Ass'y | Includes 29 to 31

LH BOOT KIT - Call your local BRP dealership

RH BOOT KIT - Call your local BRP dealership

Hex. Flange Screw M8 X 95

Hex. Flange Elastic Nut M8

Hex. Flange Screw M8 X 20

Cluster Support | STD

Speedometer Cover

Latch Indicator Cover

Truss Head Torx Screw K50 X 20

Torx Truss Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Upper Cluster Cover | X, XT

Cluster Support | X, XT

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts
