Description

Price

1

Suspension Upper Arm

706200796

$190.99

2

Bushing

706200181

$3.14

3

Sleeve

706201587

$3.79

4

Bushing

706202445

$14.30

5

Cushion

706201062

$2.30

6

Wear Plate

706201063

$0.95

7

Hex. Flange Screw M10 X 70

207607046

$2.96

8

Ball Joint

706202044

$35.99

9

Hex. Flange Elastic Nut M10

233201436

$2.11

10

Hex. Cap Screw M10 X 225

250001032

$12.64

11

Flat Washer M10

250200129

Unavailable

12

RH Lower Suspension Arm

706200744

$190.99

13

Ball Joint

706202507

$61.99

14

Grease Fitting

408200700

$3.49

15

Synthetic Grease, 400 G

293550010

Unavailable

16

LH Lower Suspension Arm

706200742

$190.99

17

Hex. Flange Elastic Nut M10

233201436

$2.11

18

Hex. Flange Screw M10 X 55

207605544

$3.38

19

Not Available As Spare Part - Friction Washer

Unavailable

19a

Not Available As Spare Parts

XXX

Unavailable

19b

Not Available As Spare Parts

XXX

Unavailable

20

Front Shock | STD

706200780

$206.49

20

Front Shock | XT Yellow Model

706200782

$195.99

20a

Bushing

715900122

$11.06

21

YELLOW SPRING - Call your local BRP dealership | STD

706201497

Unavailable

21

YELLOW FRONT SPRING - Call your local BRP dealership | XT Yellow Model

706200860

Unavailable

21

RED FRONT SPRING - Call your local BRP dealership | XT Red Model

706201367

Unavailable

21

BLACK FRONT SPRING - Call your local BRP dealership | XT Camo Model

706201369

Unavailable

22

Adjustment Ring

706000910

$16.49

23

Protector Ring | STD, XT

706000911

$13.99

24

Spring Stopper

706000567

$15.99

25

RH Protector

706201670

$17.54

26

LH Protector

706201669

$17.54

27

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

28

Circlip

293370035

$2.64

29

Nut M12

250100099

$2.09

30

Hardened Washer

706200281

$2.85

31

Cotter Pin

211400017

$0.33

32

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

33

Hex. Flange Elastic Nut M10

233201414

$1.58

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

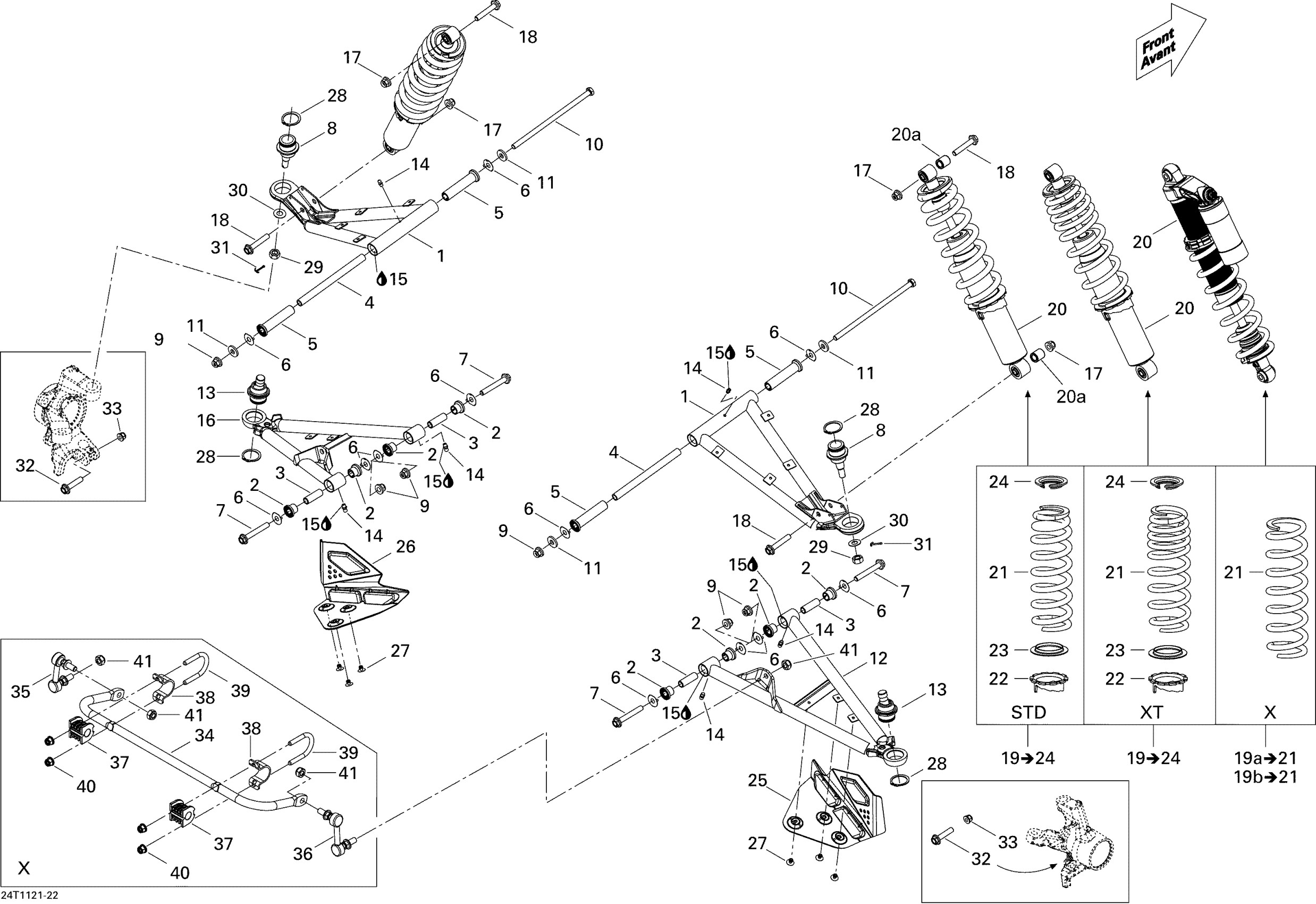

Can-Am Commander 800, 2011 07- Front Suspension Diagram

Suspension Upper Arm

Bushing

Sleeve

Bushing

Cushion

Wear Plate

Hex. Flange Screw M10 X 70

Ball Joint

Hex. Flange Elastic Nut M10

Hex. Cap Screw M10 X 225

Flat Washer M10

RH Lower Suspension Arm

Ball Joint

Grease Fitting

Synthetic Grease, 400 G

LH Lower Suspension Arm

Hex. Flange Elastic Nut M10

Hex. Flange Screw M10 X 55

Not Available As Spare Part - Friction Washer

Not Available As Spare Parts

Not Available As Spare Parts

Front Shock | STD

Front Shock | XT Yellow Model

Bushing

YELLOW SPRING - Call your local BRP dealership | STD

YELLOW FRONT SPRING - Call your local BRP dealership | XT Yellow Model

RED FRONT SPRING - Call your local BRP dealership | XT Red Model

BLACK FRONT SPRING - Call your local BRP dealership | XT Camo Model

Adjustment Ring

Protector Ring | STD, XT

Spring Stopper

RH Protector

LH Protector

Pop Rivet 3/16" | DS 650 X

Circlip

Nut M12

Hardened Washer

Cotter Pin

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

Hex. Flange Elastic Nut M10

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts
