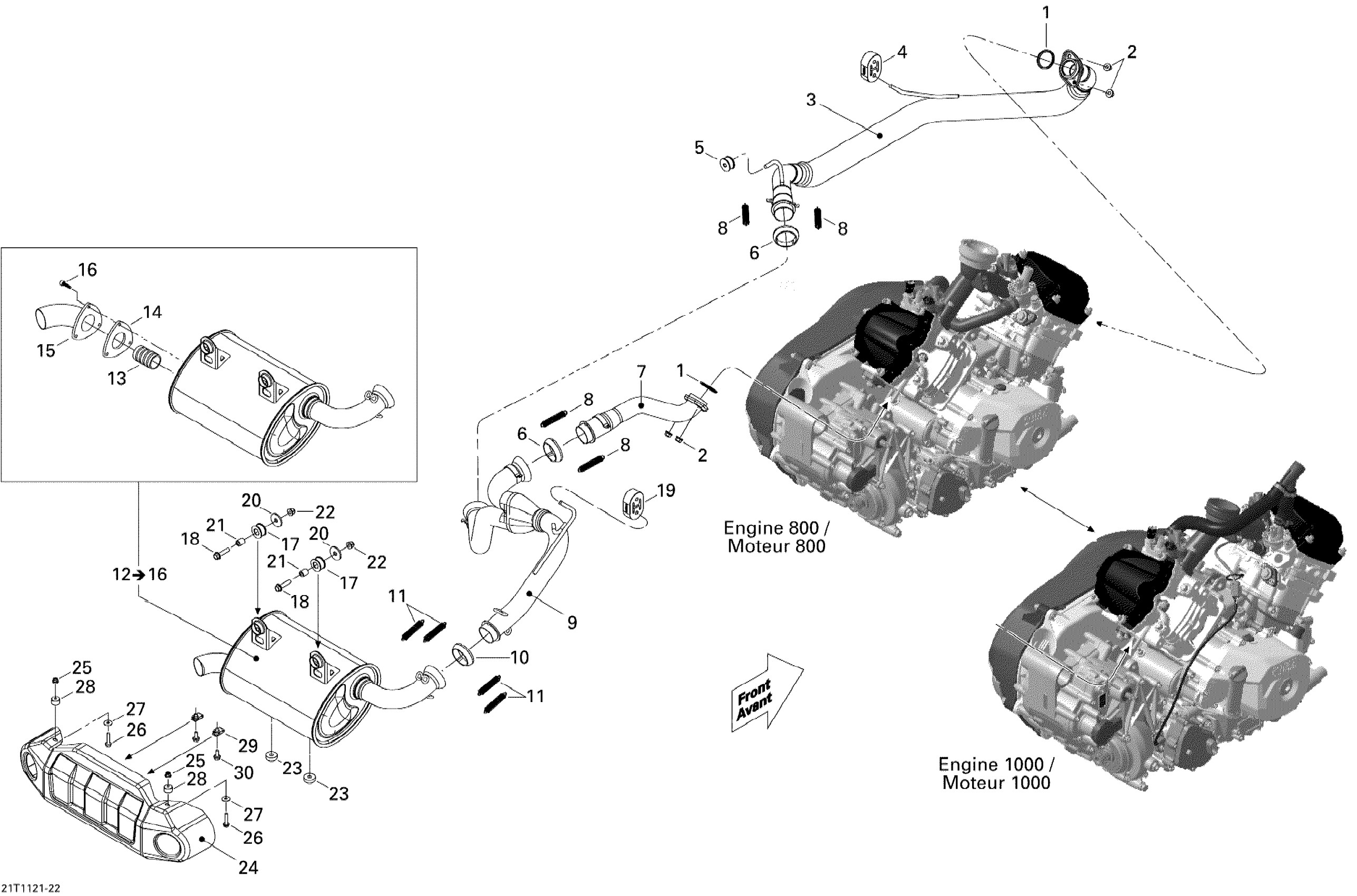

Can-Am Commander 800, 2011 01- Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$11.60

2

Hex. Flange Nut M8

233081416

$1.15

3

Front Head Pipe

707601203

$269.99

4

Rubber Bumper

707600638

$15.81

5

Anti-Vibration Rubber

707600702

$8.57

6

Exhaust Gasket

707601033

$13.77

7

Rear Head Pipe

707601018

$153.49

8

Spring

415107100

$6.35

9

Link Head Pipe

707601020

$269.99

10

Exhaust Gasket

707601033

$13.77

11

Spring

415107100

$6.35

12

MUFFLER_EXHAUST ASSY - Call your local BRP dealership | Includes 12 to 16

707600545

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Spark Arrestor

707601803

$49.99

14

Gasket

715900090

$13.69

15

Muffler Outlet End Piece

715900091

$35.99

16

Socket Head Screw M6 X 20

205062060

$2.32

17

Vibration Damper

707603323

$11.65

18

Hex. Flange Screw M8 X 35

207683544

$1.69

19

Rubber Bumper

707600638

$15.81

20

Washer

503032900

$3.28

21

Bushing

293900106

$4.55

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Grommet

709200285

$9.69

24

Deflector

707600675

$43.99

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

27

Flat Washer

250200082

$0.42

28

Bushing

707000882

$4.29

29

Panel Nut M6 X 1.0

250100198

$2.11

30

Hex. Flange Screw M6 X 16

207661644

$0.74
