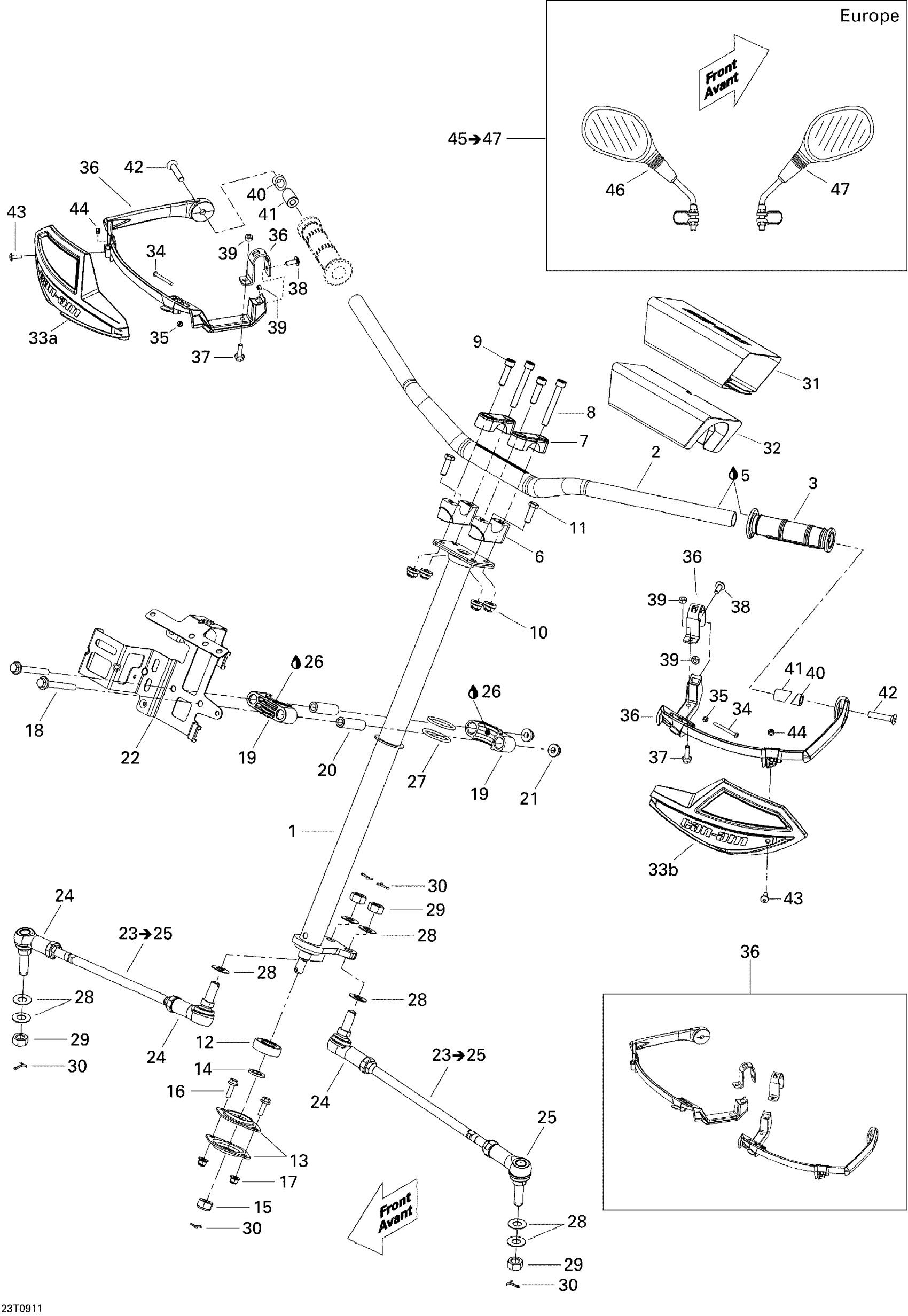

Can-Am Renegade 800R EFI X, 2009 07- Steering Diagram

#

Description
Price

1

Main Tube, Black

709400971

$184.99

2

Aluminum Handle Bar

709400513

$63.49

3

Handle Grip

709400493

$14.83

5

Loctite 406, 7 Oz

293800100

$36.99

6

Lower Mounting Clamp

709402750

$25.99

7

Support

709400496

$22.49

8

Socket Head Screw M8 X 60

205086060

$4.12

9

Socket Screw M8 X 30

205083060

$2.96

10

Hex. Elastic Flange Nut M8

233281416

$1.48

11

Hex. Screw M8 X 30

207183060

$1.58

12

Ball Bearing

709400439

$19.49

13

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

14

Flat Washer 12 mm

234021410

$0.72

15

Hex. Flange Elastic Nut M12

250000047

$1.90

16

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Hex. Flange Screw M8 X 70

207687044

$7.41

19

Half Bushing

709400471

$14.30

20

BUSHING - Call your local BRP dealership

709400072

Unavailable

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

23

Tie Rod Ass'y | Includes 21 to 23

709400485

Unavailable

24

LH Ball Joint

709402303

$36.99

25

Ball Joint, RH Threads

709400487

$52.99

26

Synthetic Grease, 400 G

293550010

Unavailable

27

O-Ring

293300068

$7.65

28

Hardened Washer

706200281

$2.85

29

Nut M12

250100099

$2.09

30

Cotter Pin

211400013

$0.37

31

Cover B-190

709402414

$30.99

32

Foam

709400422

$17.49

33a

RH AIR DEFLECTOR - Call your local BRP dealership

709400530

Unavailable

33b

LH AIR DEFLECTOR - Call your local BRP dealership

709400531

Unavailable

34

Socket Head Screw M4 X 40 | X

205444086

$1.69

35

Elastic Stop Nut M4

232541414

$0.58

36

Air Deflector Support Kit | X

715001378

$138.49

37

Hex. Flange Screw M6 X 20

207662044

$2.00

38

Torx Screw M6 X 16

250000223

$2.11

39

Hex. Elastic Stop Nut M6

232561600

$1.15

40

Small Bracket | DS 650 X

709400161

$21.99

41

Large Bracket | DS 650 X

709400162

$20.99

42

Socket Head Screw | X

205384034

$6.49

43

Torx Screw M5 X 14

250000742

$1.47

44

Hex. Elastic Nut M5 | X

232551600

$1.15

45

Mirror KIT | Europe, Includes 31 to 33

708200112

Unavailable

46

LH Mirror | Europe

709400406

$32.99

47

RH Mirror | Europe

709400523

$35.99
