Description

Price

1

GROUND CABLE - Call your local BRP dealership

710002147

Unavailable

2

Hex. Flange Screw M6 X 20

207662044

$2.00

3

Lock Washer Serrated M6

250200041

$1.15

4

Hex. Flange Nut M6

233061414

$1.68

5

Lock Washer Serrated M6

250200041

$1.15

6

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

7

POSITIVE CABLE - Call your local BRP dealership | STD, X

710002148

Unavailable

7

Winch Cable (-/+) | XT

710005123

$88.99

8

Positive Cable

710004383

$42.99

9

Elastic Stop Nut M6

232561414

$0.55

10

NEGATIVE CABLE - Call your local BRP dealership | XT

710004386

Unavailable

11

Hex. Flange Screw M6 X 20

207662044

$2.00

12

Lock Washer Serrated M6

250200041

$1.15

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Electrical Winch Cable | XT

710004387

$49.99

15

Black, Electronic Key

710000817

$63.49

15

Grey, Electronic Key

710002183

$63.49

16

Switch, Over ride

710002053

$19.49

17

Hi/Low Switch | Except Europe

710001725

$21.49

18

4X4 Switch

710001737

$31.99

19

PPS Sport Switch

710002199

$19.49

20

Switch Winch

710002052

$28.49

21

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

22

Switch Hazard | Europe

710002076

$19.49

23

Ignition Switch

710008400

$78.49

24

Engine Start Button

710002594

$60.49

25

WIRING HARNESS ASSY - Call your local BRP dealership | Except Europe

710002540

Unavailable

26

Main Harness Ass'y

710002165

Unavailable

27

Housing

710001996

$47.49

28

Decal

710002218

Unavailable

29

Rear Harness | Except Europe

710003219

$159.99

29

Rear Harness

710003220

$229.99

30

Tail Gate Harness Ass'y

710002220

Unavailable

31

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Tie Wrap 368 mm

293750008

$1.04

34

Tie-Rap 180 mm

414115200

$0.11

35

Mount Dart

293730040

$1.04

36

Tie Wrap 94 mm | 4X4

293750001

$1.03

37

Clip

414227300

$1.67

38

Tie-Rap 173 mm

293750009

$1.04

39

Speedometer Ass'y | XTP

710005075

$389.99

40

Speedometer Button | XTP

415129355

$15.80

41

Gauge Ring

415129348

$13.99

42

Lens | XTP

415129349

$24.49

43

Calibrated Speedometer | Includes 16 to 17

710003288

$349.99

44

Button

710001473

$13.71

45

Trim Ring Ass'y

710001183

$19.99

46

BRP Logo13 mm

704904615

$13.49

47

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

48

Halogen Bulb

415129249

$41.49

49

RH Low Front Housing

710001081

$19.99

50

RH Low Rear Housing

710001082

$12.99

51

RH Low Light Support

710001094

$9.09

52

LH Low Front Housing

710001083

$19.99

53

LH Low Rear Housing

710001084

$12.99

54

LH Low Light Support

710001037

$9.09

55

Phillips Screw K40 X 16

250000723

$0.98

56

Setting Screw

710001147

$12.71

57

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

58

Halogen Bulb

415129249

$41.49

59

RH High Front Housing

710001085

$19.99

60

RH High Rear Housing

710001086

$12.99

61

RH High Light Support

710001115

$5.29

62

LH High Front Housing

710001087

$19.99

63

LH High Rear Housing

710001088

$12.99

64

LH High Light Support

710001036

$5.29

65

Hex. Screw M4 X 25

207142544

$2.00

66

Flat Washer M5

234051410

$0.53

67

Elastic Stop Nut M4

232541414

$0.58

68

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

69

Bulb

520000758

$9.10

70

Hex. Screw K50 X 45

241154540

$2.11

71

Flasher | Europe

710002047

$32.99

72a

Flat Washer 6 mm

234061410

$1.36

72

Torx Screw M6 x 25

250000284

$2.11

73

Day Light | Europe

710001726

$35.99

74

License Light

710002055

$58.49

75

Bulb

219800128

$2.46

76

Lock Washer Helical M6

234161601

$1.15

77

Hex. Nut M6

232061600

$1.15

78

WINCH - Call your local BRP dealership | XT

705003944

Unavailable

79

Socket Head Screw M8 X 20

205082044

$1.15

80

Lock Washer 8 mm

234181401

$0.92

81

Winch Hook Kit

705014949

$24.99

82

Clevis Pin

250400021

$13.18

83

Cotter Pin

250400022

$9.69

84

WINCH CABLE GUIDE - Call your local BRP dealership | XT

715001119

Unavailable

85

Not Available As Spare Part - Friction Washer

Unavailable

86

Hex. Flange Elastic Nut M10

233201414

$1.58

87

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.10

88

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

89

Clip

710000992

$4.29

90

Winch Connector

710001023

$51.99

91

Torx Screw K50 X 16

250000720

$1.69

92

Solenoid Kit | XT

715007084

$202.49

93

Elastic Stop Nut M6

232561434

$1.99

94

HEX. SCREW M4 X 10 - Call your local BRP dealership | XT

207141044

Unavailable

95

Lock Washer 4 mm

234141601

$1.15

96

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

97

Battery Bolt Kit

250000282

$7.29

98

Battery Support

710003129

$48.99

99

Flat Washer 6 mm

234062410

$0.77

100

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

101

Battery Holder

710001916

$21.99

102

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

103

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

104

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

105

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

106

Horn

710004791

$38.99

107

Flasher Unit

710003239

$78.49

108

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

109

Hex. Flange Screw M6 X 16

207661644

$0.74

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

111

Turn Signal | Europe

710001721

$209.99

111a

Flasher Decal | Europe

704902614

$19.99

112

Hex. Forming Screw M5 X 16

210251650

$1.15

113

Lock Washer 5 mm | Europe

234151401

$0.55

114

DC Outlet

710001248

$37.99

115

Fuse Holder

710003335

$10.11

116

Pop Rivet 3/16"

293150103

$0.55

117

Clip

270000141

$11.49

118

Pop Rivet 3/16"

390402400

$0.35

119

Diagnostic Connector

278002704

$19.49

121

Starter Relay

710007777

$48.49

122

Lock Washer Helical M6

234161601

$1.15

123

Torx Screw M6 X 16

250000223

$2.11

124

Hex. Nut M6

232061600

$1.15

125

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

126

REMOTE CONTROL - Call your local BRP dealership | XT

710001002

Unavailable

127

Flasher Decal | Europe

704902614

$19.99

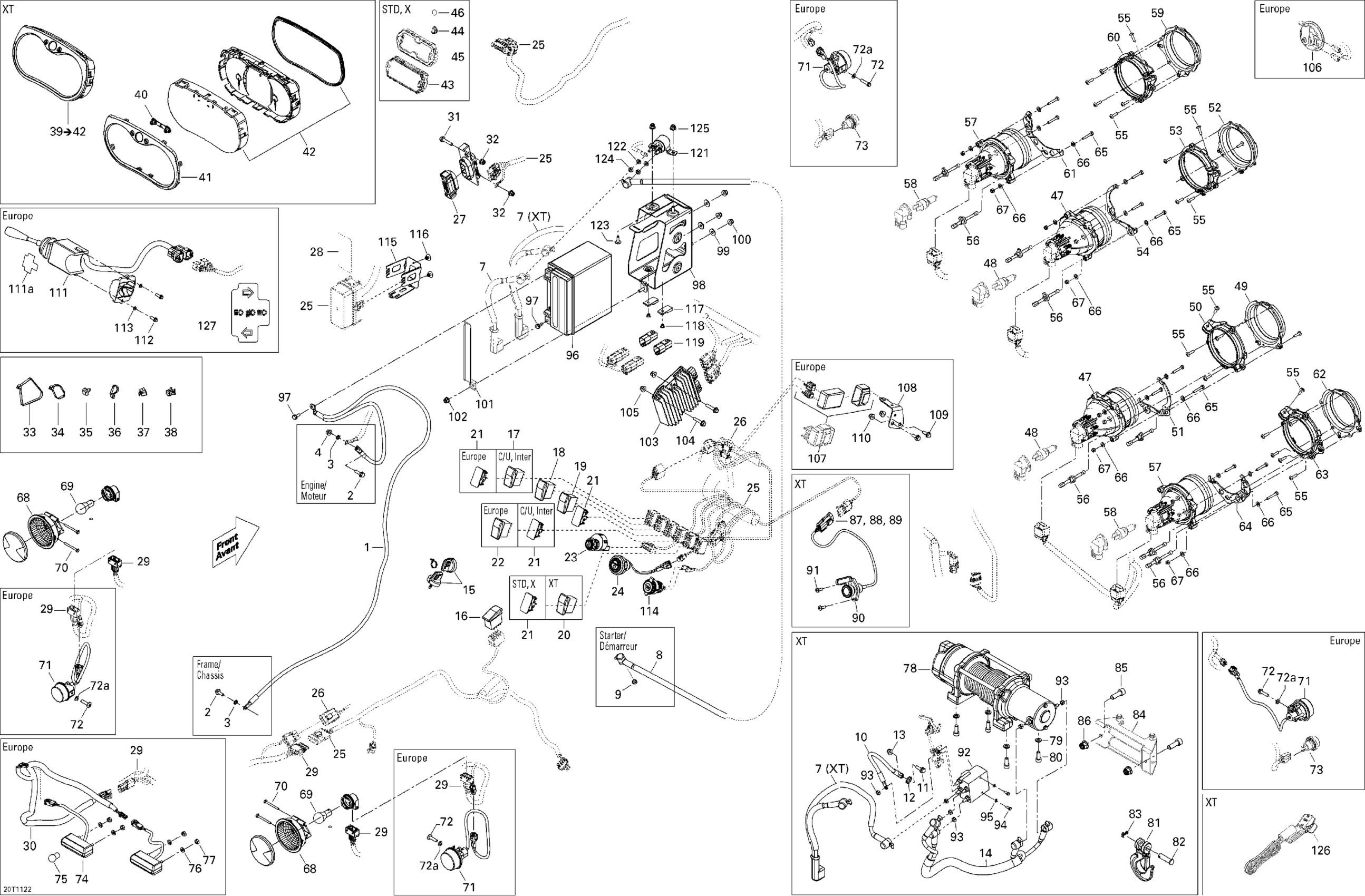

Can-Am Commander 1000, 2011 10- Electrical System Diagram

GROUND CABLE - Call your local BRP dealership

Hex. Flange Screw M6 X 20

Lock Washer Serrated M6

Hex. Flange Nut M6

Lock Washer Serrated M6

Hex. Flange Screw M6 X 16, Scotch Grip

POSITIVE CABLE - Call your local BRP dealership | STD, X

Winch Cable (-/+) | XT

Positive Cable

Elastic Stop Nut M6

NEGATIVE CABLE - Call your local BRP dealership | XT

Hex. Flange Screw M6 X 20

Lock Washer Serrated M6

Hex. Flange Elastic Nut M6 x 1.0

Electrical Winch Cable | XT

Black, Electronic Key

Grey, Electronic Key

Switch, Over ride

Hi/Low Switch | Except Europe

4X4 Switch

PPS Sport Switch

Switch Winch

Plug Carling | Australia, Brazil, Europe, Japan

Switch Hazard | Europe

Ignition Switch

Engine Start Button

WIRING HARNESS ASSY - Call your local BRP dealership | Except Europe

Main Harness Ass'y

Housing

Decal

Rear Harness | Except Europe

Rear Harness

Tail Gate Harness Ass'y

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Hex. Flange Elastic Nut M6 x 1.0

Tie Wrap 368 mm

Tie-Rap 180 mm

Mount Dart

Tie Wrap 94 mm | 4X4

Clip

Tie-Rap 173 mm

Speedometer Ass'y | XTP

Speedometer Button | XTP

Gauge Ring

Lens | XTP

Calibrated Speedometer | Includes 16 to 17

Button

Trim Ring Ass'y

BRP Logo13 mm

Low Beam Ass'y | Includes 1 to 2

Halogen Bulb

RH Low Front Housing

RH Low Rear Housing

RH Low Light Support

LH Low Front Housing

LH Low Rear Housing

LH Low Light Support

Phillips Screw K40 X 16

Setting Screw

High Beam Ass'y | Includes 11 to 12

Halogen Bulb

RH High Front Housing

RH High Rear Housing

RH High Light Support

LH High Front Housing

LH High Rear Housing

LH High Light Support

Hex. Screw M4 X 25

Flat Washer M5

Elastic Stop Nut M4

Tail Light Ass'y | Includes 32 to 33

Bulb

Hex. Screw K50 X 45

Flasher | Europe

Flat Washer 6 mm

Torx Screw M6 x 25

Day Light | Europe

License Light

Bulb
