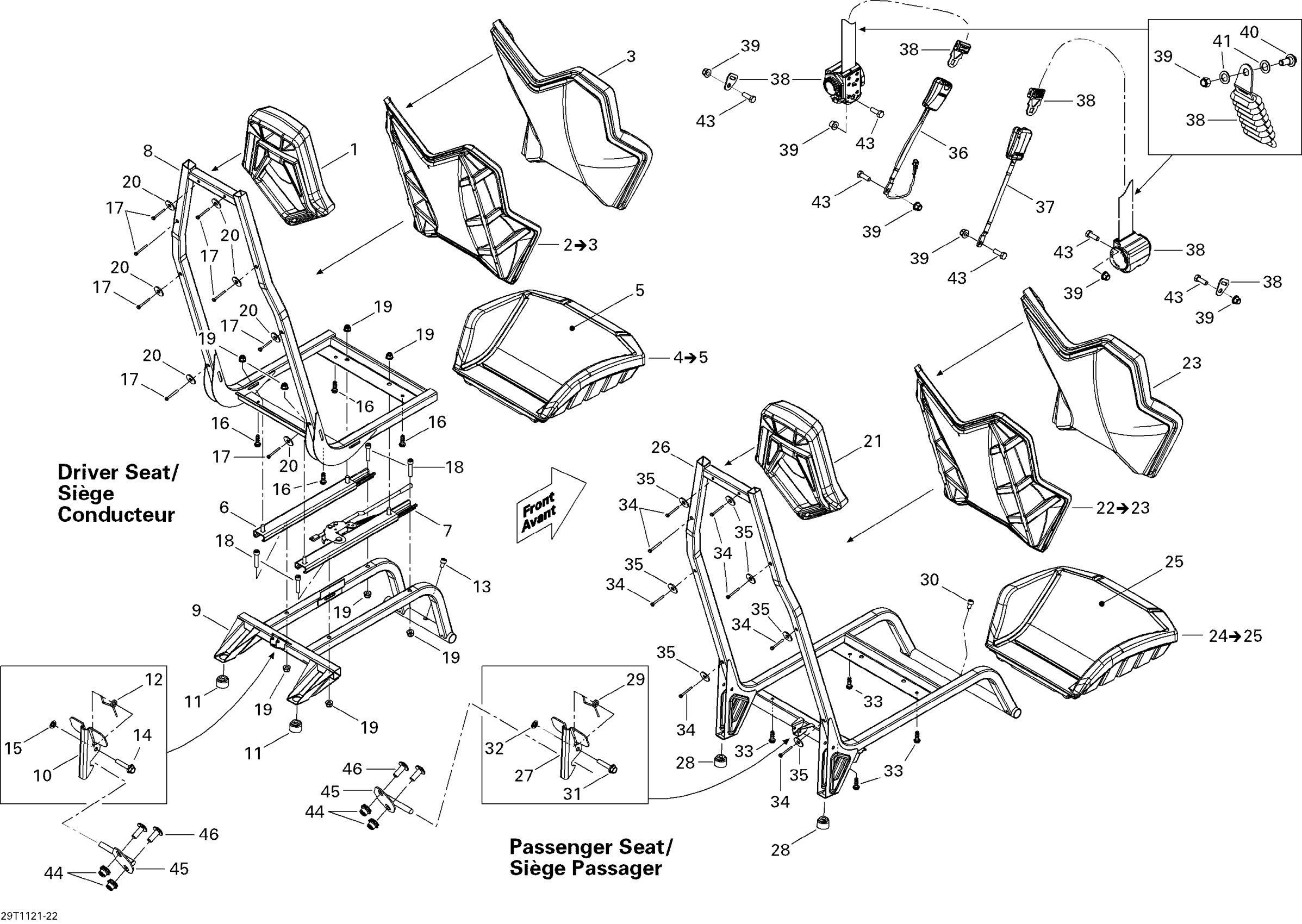

Can-Am Commander 1000, 2011 09- Seat Diagram

#

Description
Price

1

HEAD REST - Call your local BRP dealership

708000711

Unavailable

2

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

2

Backrest Ass'y X | Includes 2 to 3, X Model

708000864

Unavailable

3

Backrest Cover

708000675

$97.99

3

BACKREST COVER - Call your local BRP dealership | X Model

708000865

Unavailable

4

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

4

KIT CUSHION ASS'Y, MODEL X - Call your local BRP dealership | Includes 4 to 5, X model

703500942

Unavailable

5

Seat Cover

708001103

$117.99

5

Seat Cover | X Model

708000868

Unavailable

6

LH Rail

708000848

$53.99

7

RH RAIL - Call your local BRP dealership

708000846

Unavailable

8

Driver Seat Frame

708000739

Unavailable

9

Seat Member

708000667

$56.99

10

Seat Latch

708001355

$2.59

11

Rubber Bumper

708001671

$2.89

12

Spring

708000921

$1.29

13

Socket Screw M10 X 16

205501644

$4.29

14

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

15

Push Nut

732610072

$2.19

16

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

17

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

18

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Stainless Steel Flat Washer

234062670

$2.11

21

HEAD REST - Call your local BRP dealership

708000711

Unavailable

22

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

22

Backrest Ass'y X | Includes 2 to 3, X Model

708000864

Unavailable

23

Backrest Cover

708000675

$97.99

23

BACKREST COVER - Call your local BRP dealership | X Model

708000865

Unavailable

24

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

24

KIT CUSHION ASS'Y, MODEL X - Call your local BRP dealership | Includes 4 to 5, X model

703500942

Unavailable

25

Seat Cover

708001103

$117.99

25

Seat Cover | X Model

708000868

Unavailable

26

Passenger Seat Frame

708000690

Unavailable

27

Seat Latch

708001355

$2.59

28

Rubber Bumper

708001671

$2.89

29

Spring

708000921

$1.29

30

Socket Screw M10 X 16

205501644

$4.29

31

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

32

Push Nut

732610072

$2.19

33

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

34

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

35

Stainless Steel Flat Washer

234062670

$2.11

36

Driver Buckle Side

708002061

$70.99

36

Driver Buckle Side | Europe

708000856

$123.49

37

Passenger Buckle Side

708000844

$53.99

37

PASSENGER BUCKLE SIDE - Call your local BRP dealership | Europe

708000857

Unavailable

38

SAFETY BELT - Call your local BRP dealership

708001108

$209.99

38

SAFETY BELT - Call your local BRP dealership | Europe

708001130

Unavailable

39

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

40

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

40

Safety Belt Screw

708000890

$3.79

41

Position Washer

708000891

$1.29

43

HEX. SCREW M12 X 35 - Call your local BRP dealership

207123544

Unavailable

44

Threaded Insert M6 X 1.0

250100242

Unavailable

45

RETAINING ROD - Call your local BRP dealership

708001238

$11.99

46

Torx Screw M6 X 16

250000223

$2.11
