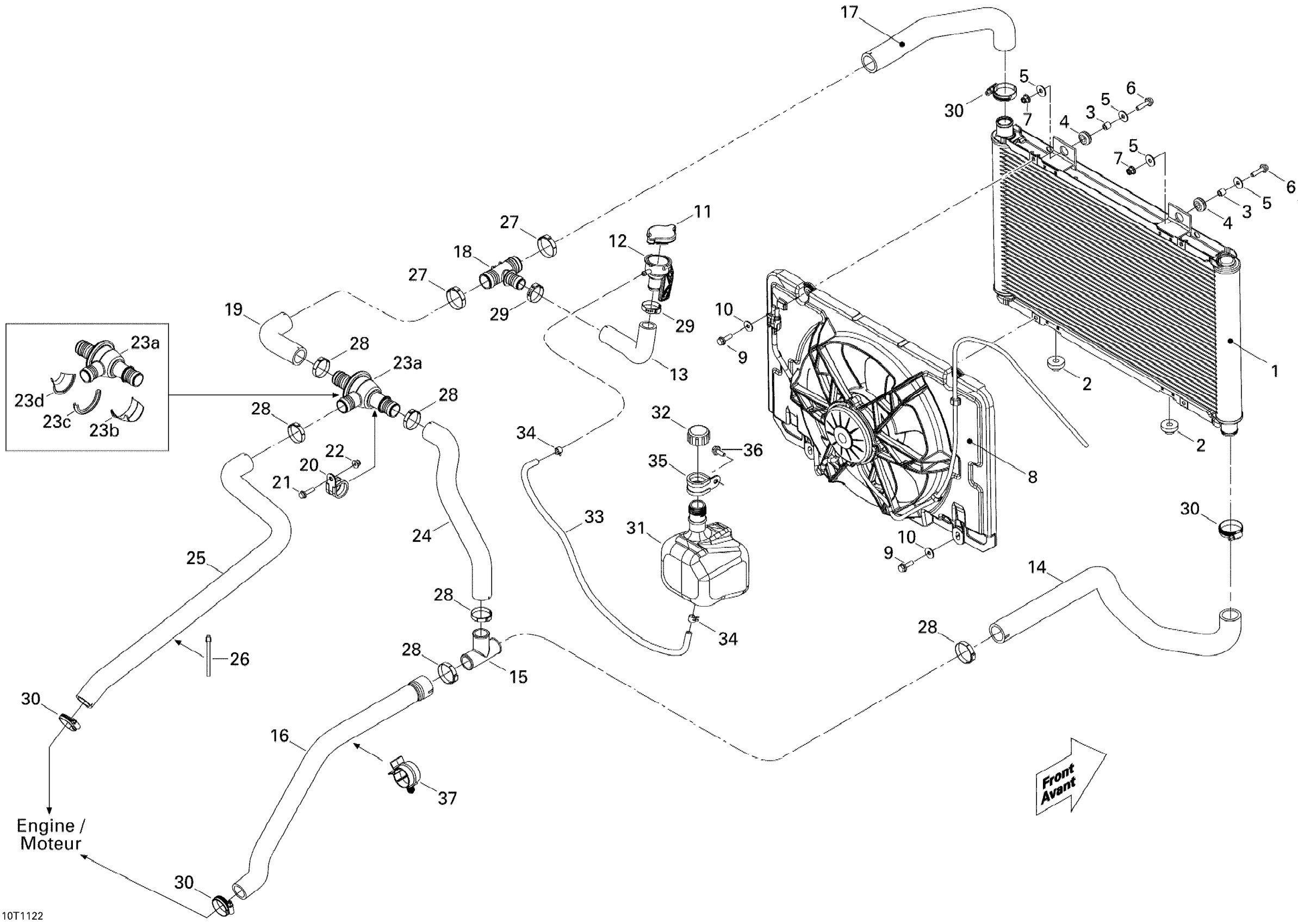

Can-Am Commander 1000, 2011 01- Cooling System, Until Sept 1st 2010 Diagram

#

Description
Price

1

Radiator

709200395

$370.99

2

Grommet

709200285

$9.69

3

Bushing

293900105

$7.65

4

Grommet

709000582

$4.69

5

Flat Washer

250200082

$0.42

6

Hex. Flange Screw M6 X 25

207662534

$2.11

7

Flange Elastic Nut M6

233261434

$4.44

8

Fan Ass'y

709200566

$279.99

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Flat Washer 6 mm

234062410

$0.77

11

Radiator Pressure Cap

709200207

$25.49

12

Filler Neck

709200179

$18.49

13

Filler Neck Hose

709200264

$11.07

14

RADIATOR INLET HOSE - Call your local BRP dealership

709200263

Unavailable

15

T-Fitting

509000219

$15.89

16

PUMP HOSE - Call your local BRP dealership

709200356

Unavailable

17

Radiator Outlet Hose

709200265

$12.63

18

T-Fitting

509000372

$10.33

19

INTERMEDIATE HOSE - Call your local BRP dealership

709200290

Unavailable

20

Hose Retainer

293650218

$9.39

21

Hex. Flange Screw M6 X 25

207662534

$2.11

22

Flange Elastic Nut M6

233261434

$4.44

23a

Thermostat

709200406

$98.99

23b

REFLECTOR - Call your local BRP dealership

709200385

Unavailable

23c

REFLECTOR - Call your local BRP dealership

709200386

Unavailable

23d

REFLECTOR - Call your local BRP dealership

709200387

Unavailable

24

RECIRCULATION HOSE - Call your local BRP dealership

709200266

Unavailable

25

INTERMEDIATE HOSE - Call your local BRP dealership

709200268

Unavailable

26

Tie Wrap 368 mm

293750008

$1.04

27

Oetiker Gear Clamp 36.1MM

509000045

$8.29

28

Oetiker Gear Clamp 36.1MM

509000045

$8.29

29

Crimp Clamp

293650099

$4.29

30

Norma Gear Clamp

293650098

$4.44

31

Coolant Tank Ass'y

709200624

$27.99

32

Tank Cap

709200587

$5.40

33

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

34

Spring Clamp

414554800

$0.88

35

Hose Anchor

709200036

$11.12

36

Hex. Flange Screw M6 X 16

207661644

$0.74

37

Retainer

275500590

$9.69
