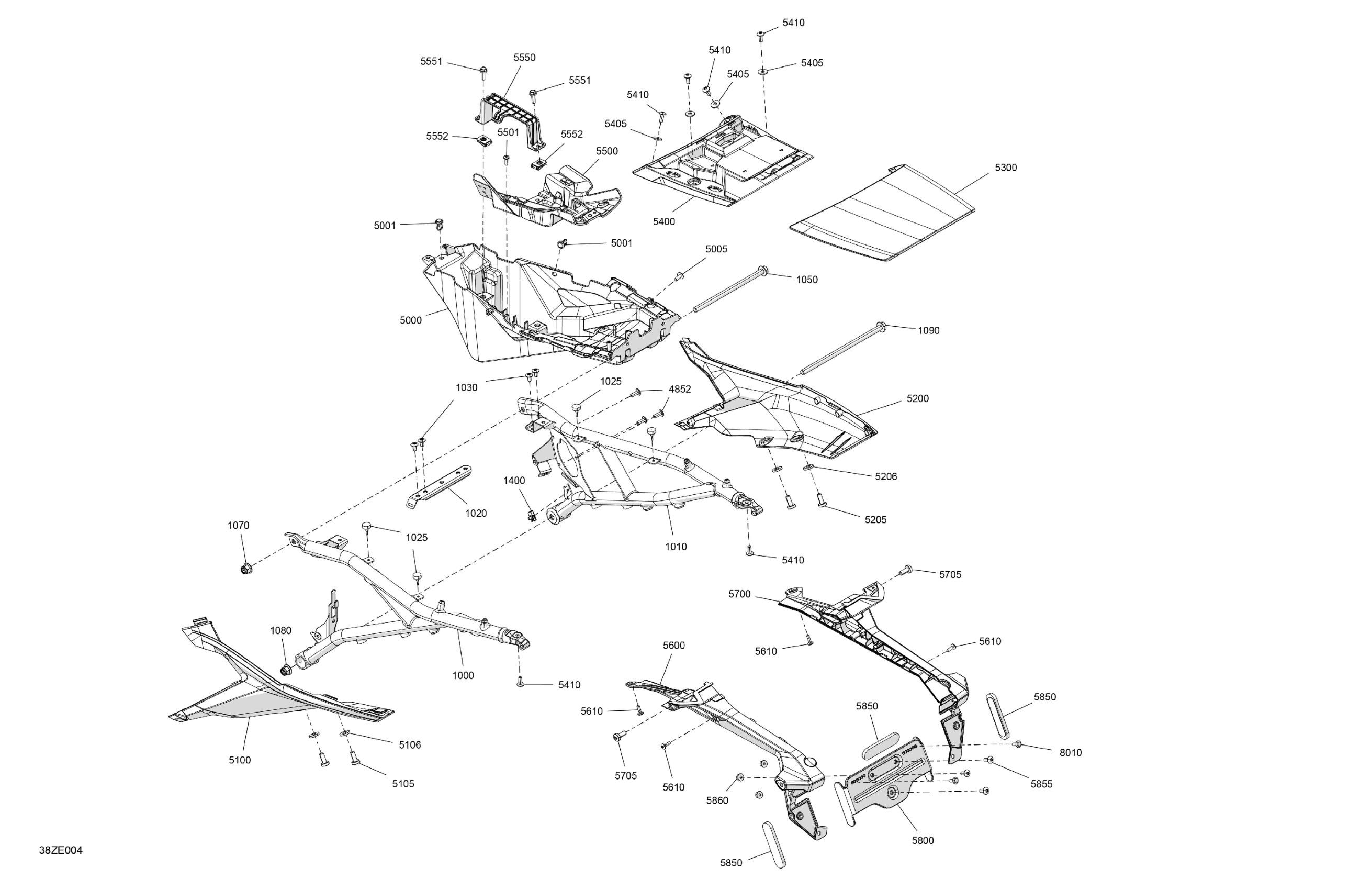

Can-Am International - PULSE - E-Motor 20kw - SS73 - J9SB - Sterling Silver, 2025 07- Body - Cargo Diagram

Description

Price

1000

LH Rear Chassis Extension

705211708

$159.99

1010

RH Rear Chassis Extension

705211709

$159.99

1020

Front Upper Cross Member

705211725

$17.49

1025

Seat Stopper

708003866

$4.59

1030

Torx Truss Screw M6 X 12

250000767

$2.00

1050

Geoblack, Hex. Flange Screw M10 X 185

250001334

$20.49

1070

Hex. Flange Elastic Nut M10

250100246

$3.17

1080

Hex. Flange Elastic Nut M10

250100246

$3.17

1090

Geoblack, Hex. Flange Screw M10 X 215

250001335

$25.99

1400

Spring Nut U M5 X 0.8

250100209

$4.13

4852

Torx Head Screw M6 X 16

250000717

$2.11

5000

Under Fender Trim

705017446

$54.99

5001

Tuflok Plastic Rivet

293150230

$1.47

5005

Torx Head Screw M6 X 16

250000717

$2.11

5100

Deep Black, LH Rear Fairing

705019079

$40.99

5105

Torx Truss M8 X 25

250000874

$2.11

5106

Flat Washer M8

250200208

$5.69

5200

Deep Black, RH Rear Fairing

705019080

$51.99

5205

Torx Truss M8 X 25

250000874

$2.11

5206

Flat Washer M8

250200208

$5.69

5300

Sterling Silver Satin, Rear Upper Fairing

705018373

$169.99

5400

Accessory Support

705017900

$38.99

5405

Stainless Steel Flat Washer

234062670

$2.11

5410

Torx Head Screw M6 X 16

250000717

$2.11

5500

Battery Support

705020009

$5.09

5501

Torx Screw K50 X 16

250000720

$1.69

5550

Battery Lock

705018485

$1.09

5551

Hex. Flange Screw M6 X 20

207662044

$2.00

5552

Panel Nut M6 X 1.0

250100198

$2.11

5600

LH Rear Fender

705211852

$18.49

5610

Torx Screw K50 X 16

250000720

$1.69

5700

RH Rear Fender

705211853

$18.49

5705

Torx Truss M8 X 25

250000874

$2.11

5800

License Plate Support

705209835

$6.39

5850

Red, Reflector

705015551

$9.59

5855

Torx Head Screw M6 X 16

250000717

$2.11

5860

Hex. Elastic Flange Nut M6

233161464

$1.01

8010

Hex. Plastic Screw M4.8 X 16

243141630

$2.11
