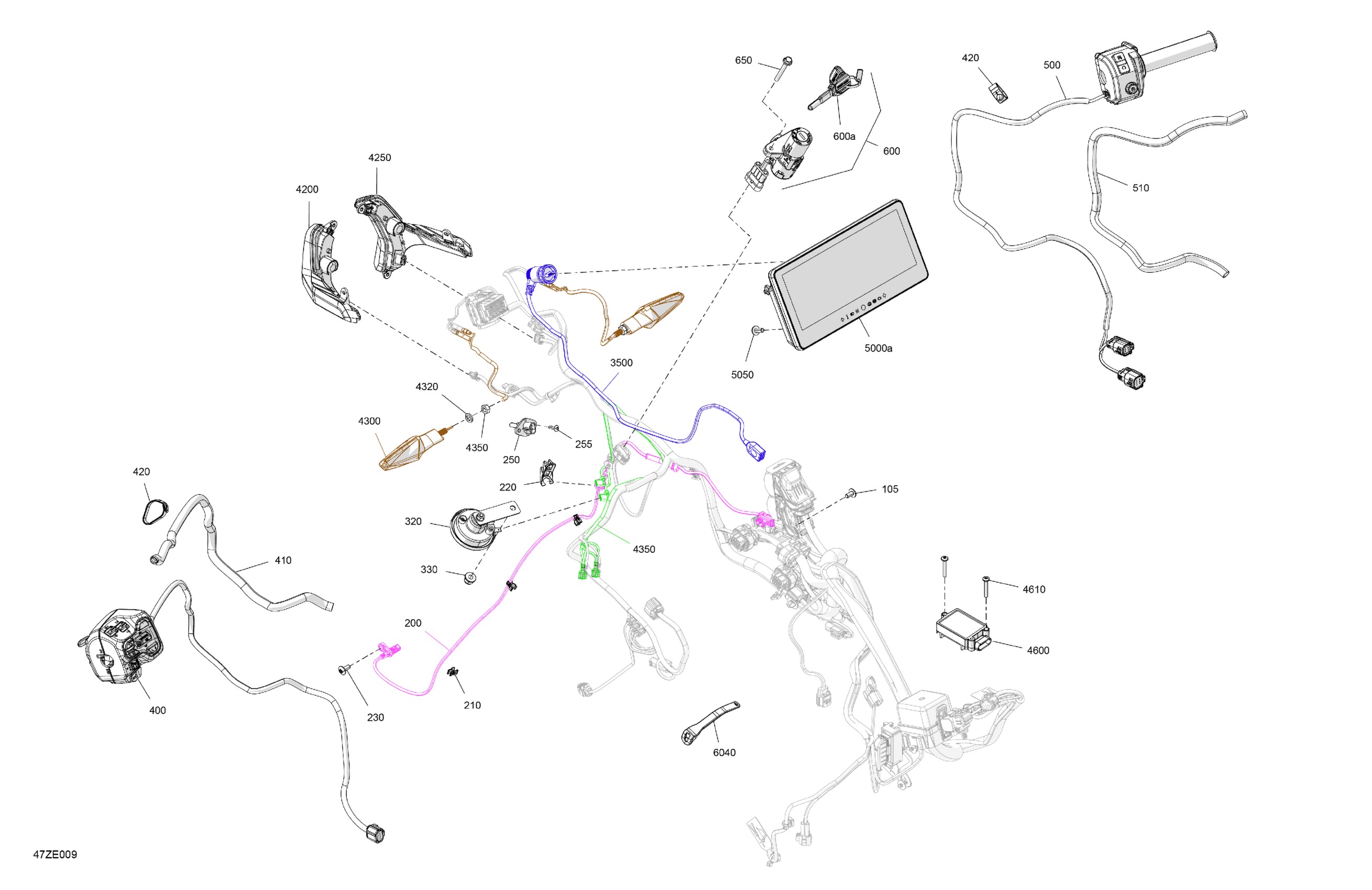

Can-Am North America - ORIGIN - E-Motor 20kw - SS73 - J8SA - Sterling Silver, 2025 08- Electric - Front Electric Diagram

Description

Price

105

Torx Truss Screw M6 X 12

250000767

$2.00

200

Speed Sensor

710006982

$83.99

210

Cable Support

710010345

$4.09

220

Cable Support

710010346

$5.09

230

Torx Truss M6X14

250000789

$5.39

250

Air Temperature Sensor

515176366

$19.99

255

Torx-Truss Pt K40 X 16

250000759

$2.11

320

Horn

710010706

$146.99

330

Elastic Flange Nut M8

233281466

$1.01

400

LH Front Multifunction Switch Ass'y

710008918

$509.99

410

Braided Sheath 9,53 Mm Id

710010591

$16.27

420

Retaining Strap

710010134

$0.80

500

RH Multifunction Switch & Twist Throttle

710008981

$264.99

510

Braided Sheath 9,53 Mm Id

710010591

$16.27

600

Ignition Switch | Includes 600 to 600a

710007600

$296.49

600a

Blank Ignition Key

219800574

$26.49

650

Hex. Flange Screw M6 X 50

207665054

$4.76

3500

USB-A Wiring Harness

710009776

$76.99

4200

LH Auxiliary Light

710009674

$163.99

4250

RH Auxiliary Light

710009673

$163.99

4300

Turn Signal Amber Light

710009747

$52.99

4320

Slotted Washer

710006520

$1.15

4350

Slotted Nut

710006521

$2.11

4600

External Module GPS

278004172

$189.99

4610

Torx Screw K50 X 35

250001111

$14.49

4620

GPS Wiring Harness | Not Shown

710010841

$64.99

5000a

Multifunction Gauge 10

710010374

$2,039.99

5050

Torx Truss Screw M6 X 16

250000721

$1.69

6040

Retaining Hook

520003482

$2.11
