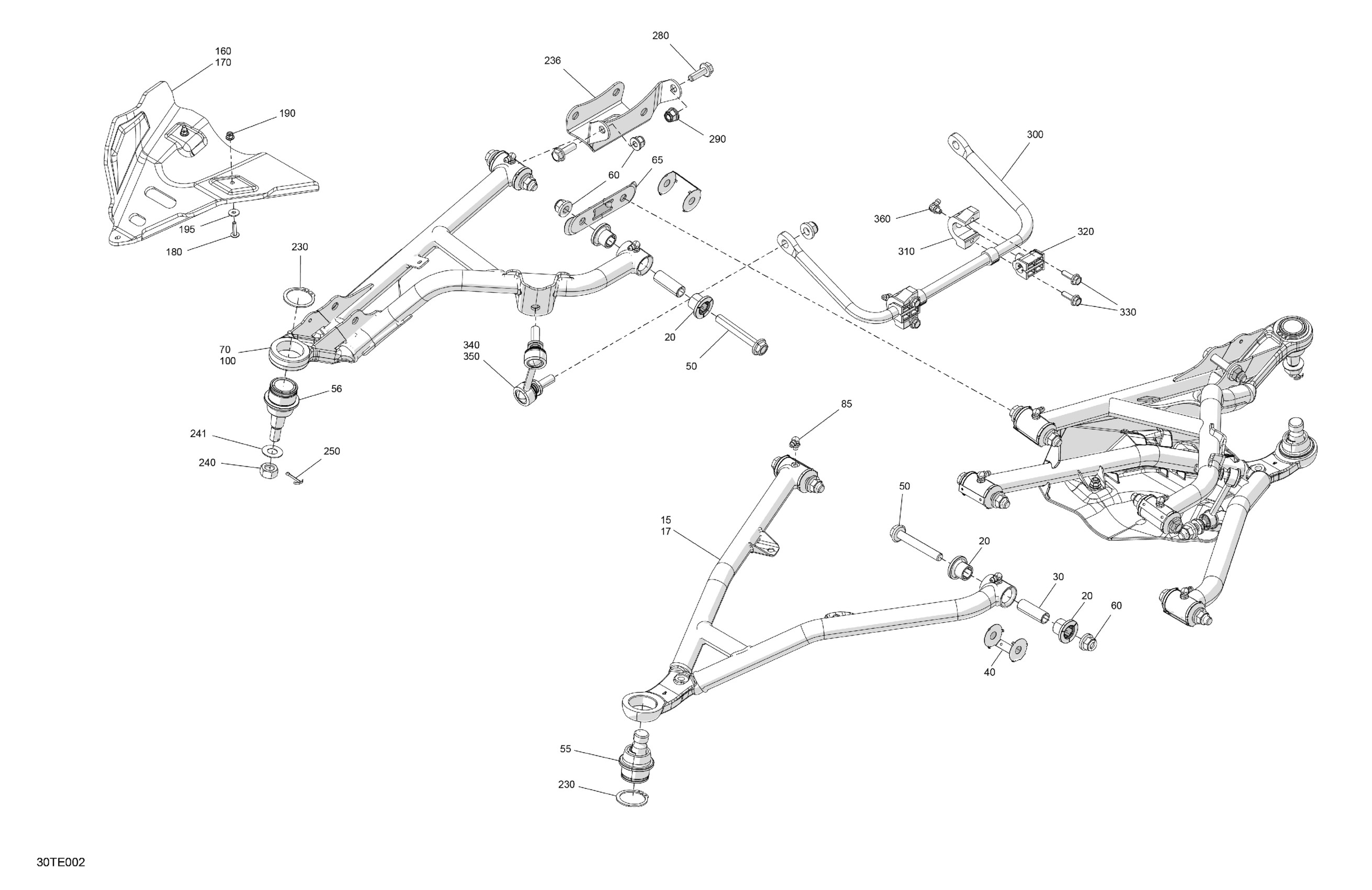

Can-Am CE - RENEGADE - 4X4 - XXC - 650 EFI - 5RSA - Catalyst Gray - 2025 05- Suspension - Front Components Diagram

Description

Price

LH Lower Suspension Arm

706204637

$158.99

RH Lower Suspension Arm

706204638

$158.99

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Spacer

706204623

Unavailable

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Hex. Flange Screw M10 X 70

207607046

$2.96

Ball Joint

706202045

$35.99

Ball Joint

706202044

$35.99

Hex. Flange Elastic Nut M10

233201436

$2.11

Front Suspension Cross Member

706205645

$5.29

RH Upper Suspension Arm

706204572

$158.99

Grease Elbow Fitting

293550085

$1.15

100

LH Upper Suspension Arm

706204571

$158.99

160

LH Front Joint Guard

706205519

$18.49

170

RH Front Joint Guard

706205520

$10.99

180

Torx Screw M6 X 16

250000755

$0.87

190

Hex. Flange Elastic Nut M6

233261494

$1.58

195

Stainless Steel Flat Washer

234062670

$2.11

230

Circlip

293370035

$2.64

236

Upper Front Holder

705203247

$15.99

240

Hex Nut M12

250100239

$2.00

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

280

Hex. Flange Screw M8 X 25

207682544

$1.35

290

Hex. Flange Elastic Nut M8

233281414

$1.47

300

Sway Bar

706203715

$126.99

310

Clamp

706203929

$25.99

320

Stabilizer Bar Bushing

706204796

$12.65

330

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

340

LH Sway Bar Link

706203290

$72.99

350

RH Sway Bar Link

706203291

$72.99

360

Grease Elbow Fitting

293550085

$1.15
