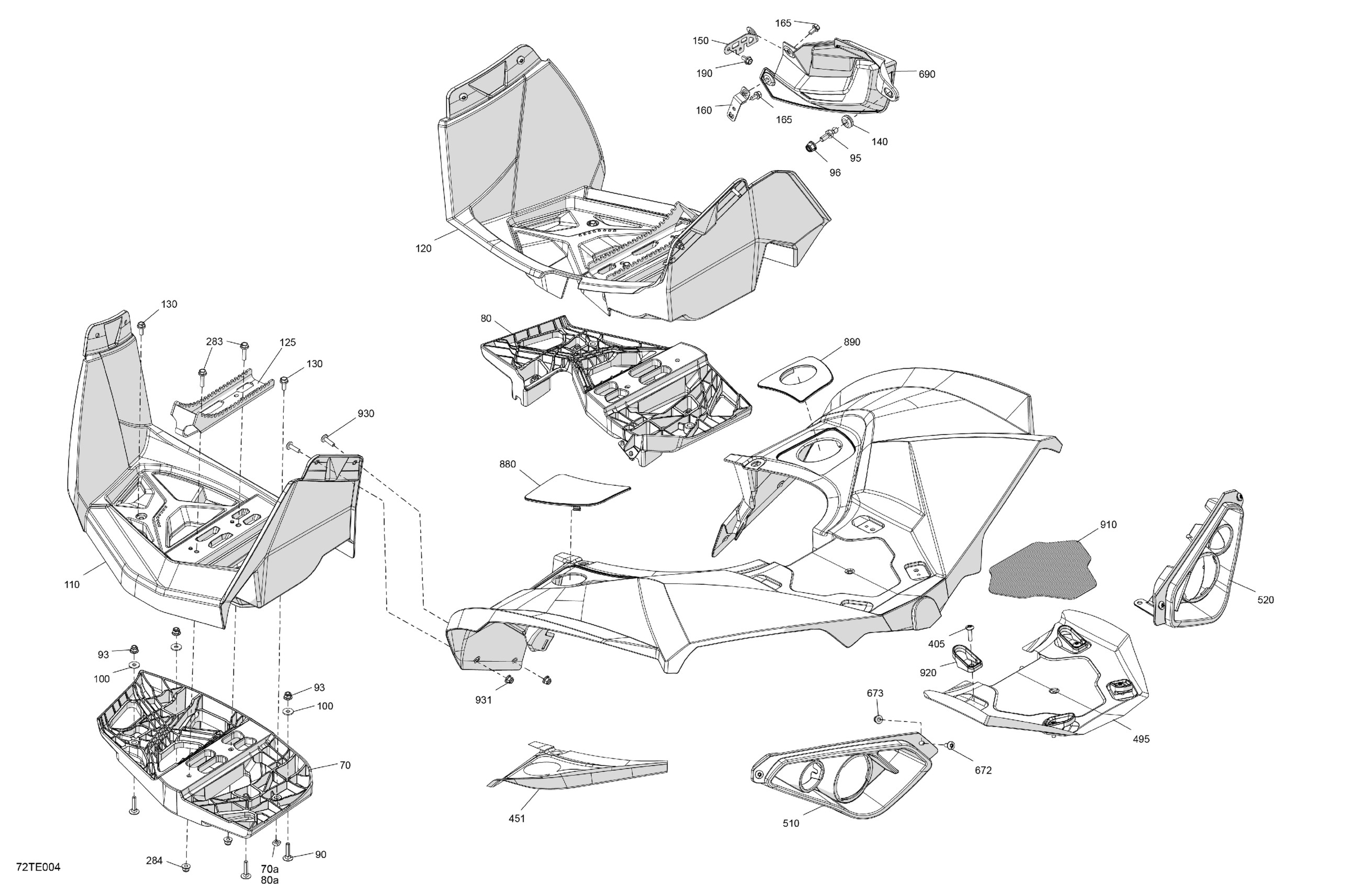

Can-Am CE - RENEGADE - 4X4 - XXC - 1000R EFI - 5MSA - Catalyst Gray - 2025 07- Body - Rear Section Diagram

Description

Price

LH Footboard

705004176

$49.99

70a

Square Nut M6

232862412

$1.49

RH Footboard

705004177

$49.99

80a

Square Nut M6

232862412

$1.49

Carriage Bolt M6 X 30

207763044

$4.44

Flange Elastic Nut M6

233261434

$4.44

Ball Head Stud

250300039

$7.51

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Flat Washer 6 mm

234062410

$0.77

110

LH Footboard/Fender

705004730

$134.99

120

RH Footboard/Fender

705004729

$134.99

125

Footrest

705002326

$43.99

130

Hex. Flange Screw M6 X 16

207661654

$2.11

140

Overmolded Grommet

293720130

$4.69

150

Engine Cover Support

705011461

$10.49

160

Engine Cover Support

705003646

$9.23

165

Hex. Flange Screw M6 X 12

210261250

$1.90

190

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

283

Hex. Flange Screw M6 X 25

207662554

$1.48

284

Flange Elastic Nut M6

233261434

$4.44

405

Torx Screw M6 X 25

250000758

$2.11

451

Heat Shield

707003638

$36.99

495

Reflective Sheet

705005840

$9.39

510

LH Rear Facia | Europe

705004927

$15.99

520

RH Rear Facia | Europe

705004926

$15.99

672

Torx Screw M6 X 16

250000755

$0.87

673

Flange Elastic Nut M6

233261434

$4.44

690

Engine Cover

705004966

$14.49

880

LH Rear Body Panel Cap

705017923

$13.99

890

RH Rear Body Panel Cap

705017924

$15.99

910

Rear Carpet

705002343

$19.49

920

Hook

705017925

$16.99

930

Torx Screw M6 X 20

250000712

$2.11

931

Flange Elastic Nut M6

233261434

$4.44
