Description

Price

1

Upper Arm Bracket

706201360

$158.99

2

LH Upper Arm

706200763

Unavailable

3

RH Upper Arm

706200764

Unavailable

4

Bushing

706200181

$3.14

5

SPACER BUSHING - Call your local BRP dealership

706200677

Unavailable

6

Sleeve

706201587

$3.79

7

Hex. Flange Screw M10 X 70

207607046

$2.96

8

Ball Joint

706200653

$44.99

9

Hex. Flange Elastic Nut M10

233201436

$2.11

10

ARM_SUSPENSION RH ECOAT - Call your local BRP dealership

706201047

Unavailable

11

Grease Fitting

408200700

$3.49

12

Synthetic Grease, 400 G

293550010

Unavailable

13

ARM_SUSPENSION LH ECOAT - Call your local BRP dealership

706201045

Unavailable

14

Hex. Flange Screw M10 X 65

207606536

$4.44

15

Hex. Flange Elastic Nut M10

233201436

$2.11

16

Hex. Flange Screw M10 X 55

207605544

$3.38

17

FRONT SHOCK - Call your local BRP dealership

706200667

Unavailable

18

SPRING_COMPRESSION B-176 PAINTED - Call your local BRP dealership | Red

706200775

Unavailable

18

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | Yellow

706200829

Unavailable

19

Adjuster Ring

706002356

$18.49

20

Spring Stopper

706200881

$12.99

21

Cap

706200785

$4.69

22

Not Available As Spare Parts

XXX

Unavailable

23

RH Protector

706201670

$17.54

24

LH Protector

706201669

$17.54

25

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

26

Hex. Flange Screw M8 X 20

207682044

$1.15

27

Hex. Flange Elastic Nut M8

233281414

$1.47

28

Circlip 32 mm

293370009

$1.39

29

UPPER ARM BRACKET - Call your local BRP dealership

706200405

Unavailable

30

Nut M12

250100099

$2.09

31

Hardened Washer

706200281

$2.85

32

LH UPPER ARM BRACKET - Call your local BRP dealership

706201039

Unavailable

33

RH UPPER BRACKET - Call your local BRP dealership

706200736

Unavailable

34

Pop Rivet 3/16"

390402300

$0.75

35

Hex. Elastic Flange Nut M8

233281416

$1.48

36

Cotter Pin

211400017

$0.33

37

Hex. Flange Screw M8 X 70

207687044

$7.41

38

Hex. Flange Elastic Nut M8

233281414

$1.47

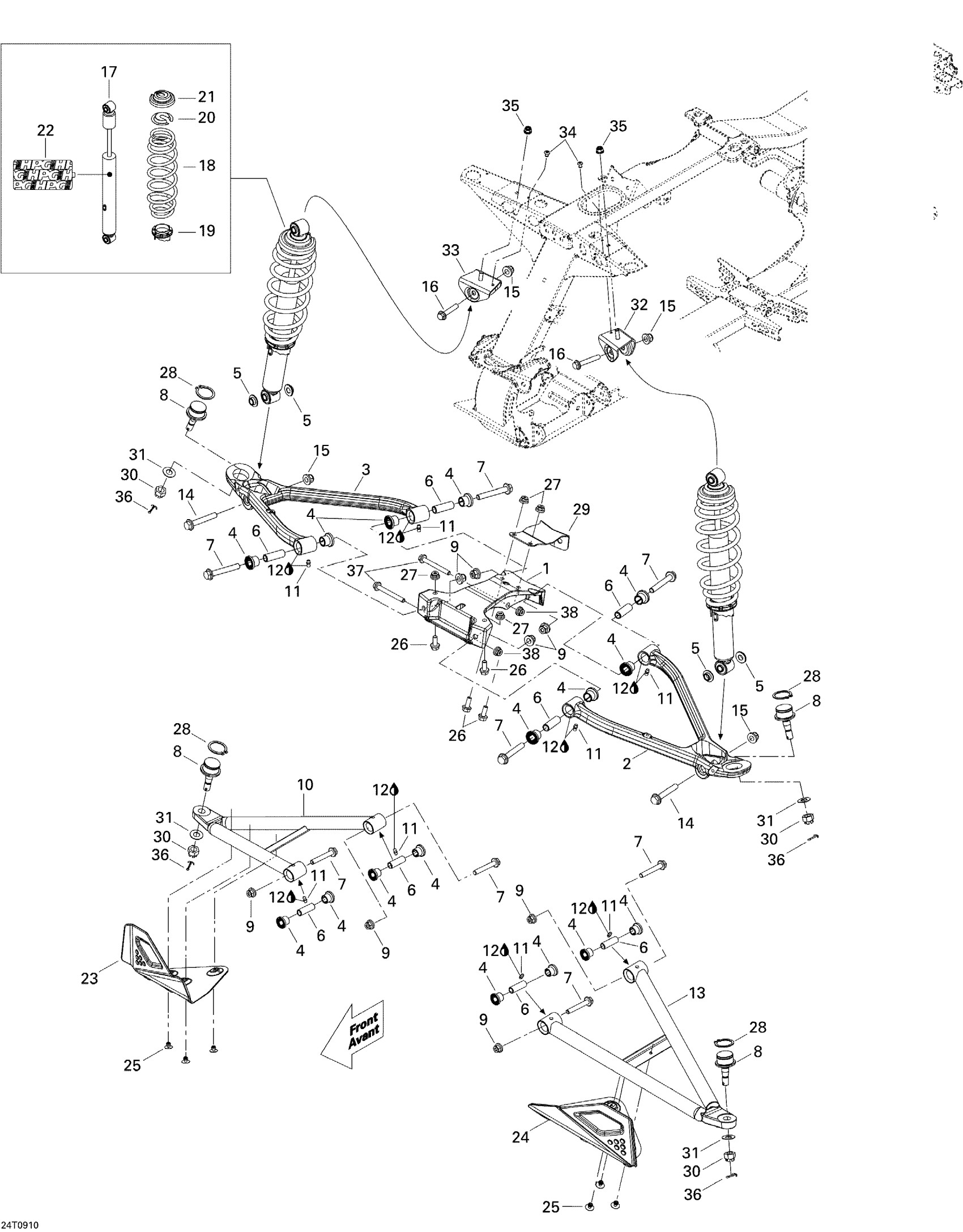

Can-Am Renegade 500, 2009 07- Front Suspension 500 Diagram

Upper Arm Bracket

LH Upper Arm

RH Upper Arm

Bushing

SPACER BUSHING - Call your local BRP dealership

Sleeve

Hex. Flange Screw M10 X 70

Ball Joint

Hex. Flange Elastic Nut M10

ARM_SUSPENSION RH ECOAT - Call your local BRP dealership

Grease Fitting

Synthetic Grease, 400 G

ARM_SUSPENSION LH ECOAT - Call your local BRP dealership

Hex. Flange Screw M10 X 65

Hex. Flange Elastic Nut M10

Hex. Flange Screw M10 X 55

FRONT SHOCK - Call your local BRP dealership

SPRING_COMPRESSION B-176 PAINTED - Call your local BRP dealership | Red

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | Yellow

Adjuster Ring

Spring Stopper

Cap

Not Available As Spare Parts

RH Protector

LH Protector

Pop Rivet 3/16" | DS 650 X

Hex. Flange Screw M8 X 20

Hex. Flange Elastic Nut M8

Circlip 32 mm

UPPER ARM BRACKET - Call your local BRP dealership

Nut M12

Hardened Washer

LH UPPER ARM BRACKET - Call your local BRP dealership

RH UPPER BRACKET - Call your local BRP dealership

Pop Rivet 3/16"

Hex. Elastic Flange Nut M8

Cotter Pin

Hex. Flange Screw M8 X 70

Hex. Flange Elastic Nut M8
