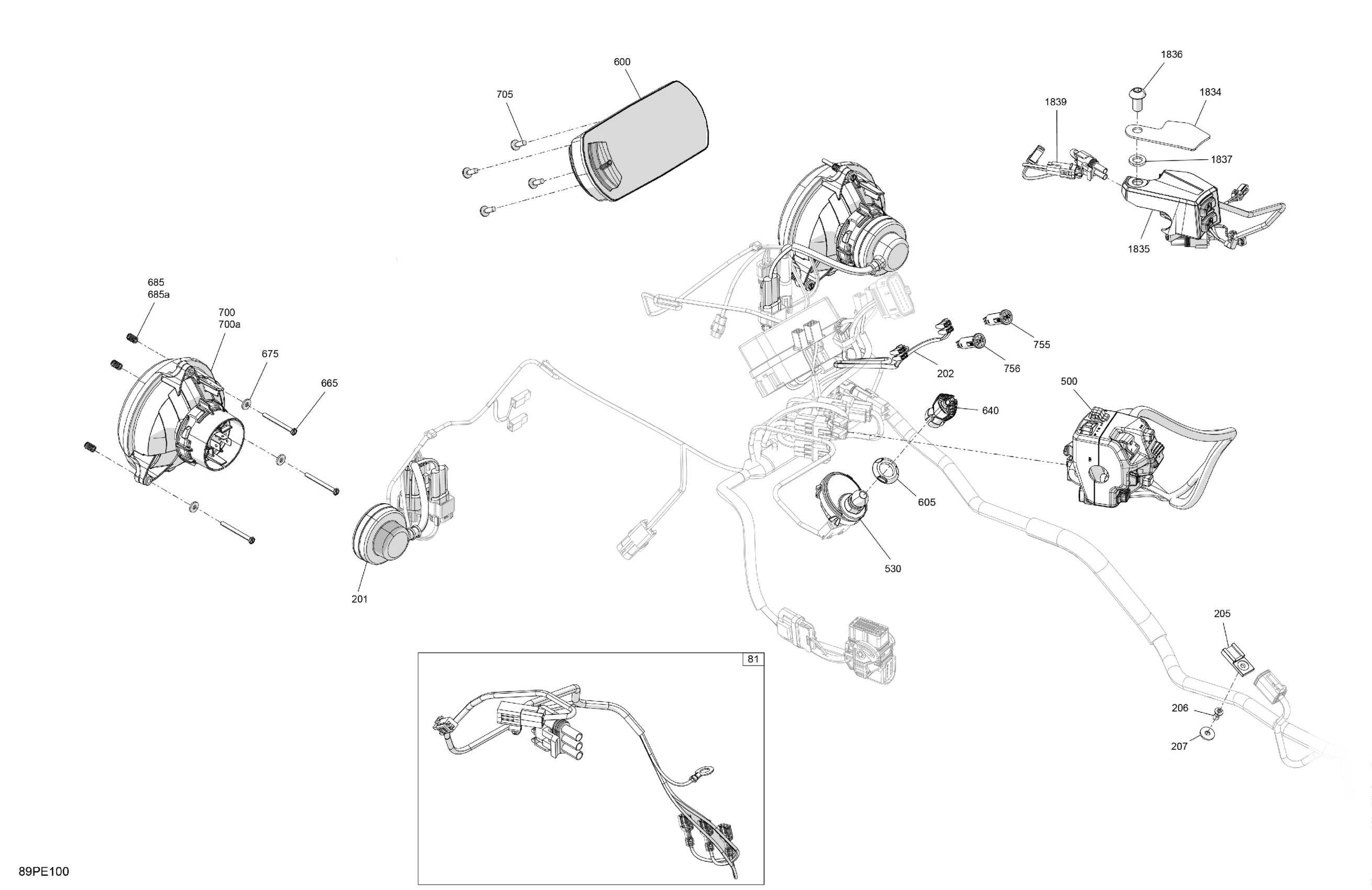

Can-Am CE - OUT-MAX - 6X6 - XU+ - 450 EFI - 5ESA - Tundra Green - 2025 08- Electric - Front Section Diagram

Description

Price

Winch Wiring Harness

710008412

$44.99

201

Light Cable

710005780

$23.99

202

Tell Tale Wiring Harness

710007825

$24.99

205

Clip

270000141

$11.49

206

Pop Rivet 3/16 X ,551

293150301

$0.77

207

Washer | DS 650 X

391301600

$0.48

500

LH Front Switch Housing

710006672

$248.99

530

Terminal DESS One Wire

515179305

$74.99

600

Multifunction Compact Gauge

710008298

$389.99

605

Specialized Nut

278004274

$3.28

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

665

Hex. Screw K40 X 45

250000718

$2.11

675

Flat Washer

517225900

$0.18

685

Spring

517168600

$7.39

685a

Spring

517168600

$7.39

700

Low Beam

710003900

$114.99

700a

Bulb, 12V 35/35W

710000871

$34.99

705

Torx Screw K50 X 16

250000720

$1.69

755

Pilot Light Trailer Flasher

710005766

$9.29

756

Pilot Light Tail Lamp

710005767

$9.39

1834

Top Plate

715004008

$21.99

1835

Multifonction Housing Ass'y

710004990

$154.99

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$9.69

1837

Washer

503192496

$0.77

1838

Housing Switch Support

710009590

$36.99

1839

Cable

710004567

$12.76
