Description

Price

10

RH Fender Support | Includes 1000 to 1000a

708302667

$279.99

10a12

Clinch Nut M6 Hexsert

605636003

$4.23

20

LH Fender Support | Includes 1010 to 1010a

708302668

$279.99

20a11

Clinch Nut M6 Hexsert

605636003

$4.23

30

RH Cargo Fender

708302687

$204.99

40

CARGO FENDER LH - Call your local BRP dealership

708302688

$134.99

50

Fastening Plate | Includes 1040 to 1040a

708302628

$33.99

50a

Clinch Nut M6 Hexsert

605636003

$4.23

60

Rear Support Tube | Includes 1050 to 1050a

708302619

$55.99

60a

Clinch Nut M6 Hexsert

605636003

$4.23

70

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

80

Torx Head Screw M6 X 16

250000717

$2.11

100

Middle Area | Includes 100 to 100a.c

705206831

Unavailable

100a3

Avex Rivet

390909200

$0.30

105

Black, Wheel Cap

503192771

$2.39

110

RH Light Cover

708302734

$13.99

120

LH Light Cover

708302735

$13.99

125

Torx Screw M6 X 20

250000722

$1.68

130

Torx Truss Screw M6 X 25

250000807

$2.11

135

Torx Truss Screw M6 X 25

250000807

$2.11

140

Torx Screw M6 X 45

250000748

$1.90

150

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

160a

D-Ring

708302990

$4.29

160b

Tie-Down Ring Spring

708302991

$2.39

160c

Tie-Down Ring Bracket

708302992

$2.39

180

Socket Screw HD.CTSK.DIN.7991 | not shown

205362096

$15.28

190

BRP Logo 68 mm

219902672

$13.99

200

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

200a

Bulb

520000758

$9.10

210

Flasher | Europe

710002964

$35.99

215

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

220

Red, Reflector

705016982

$14.49

225

Flange Elastic Nut M5

233251434

$2.00

230

Light | Includes 220j to 220j1

710008467

$58.49

235

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

280

LH Side Rail

708302788

$65.99

290

RH Side Rail

708302789

$65.99

310

Hex. Flange Screw

207664554

$2.11

320

Hex. Flange Elastic Nut M6

233261466

$2.00

330

Hex. Flange Screw M8 X 20

207682046

$1.90

340

Hex. Elastic Flange Nut M8

233281416

$1.48

350

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

590

Torx Screw M6 X 20

250000722

$1.68

595

Hex. Flange Elastic Nut M6

233261494

$1.58

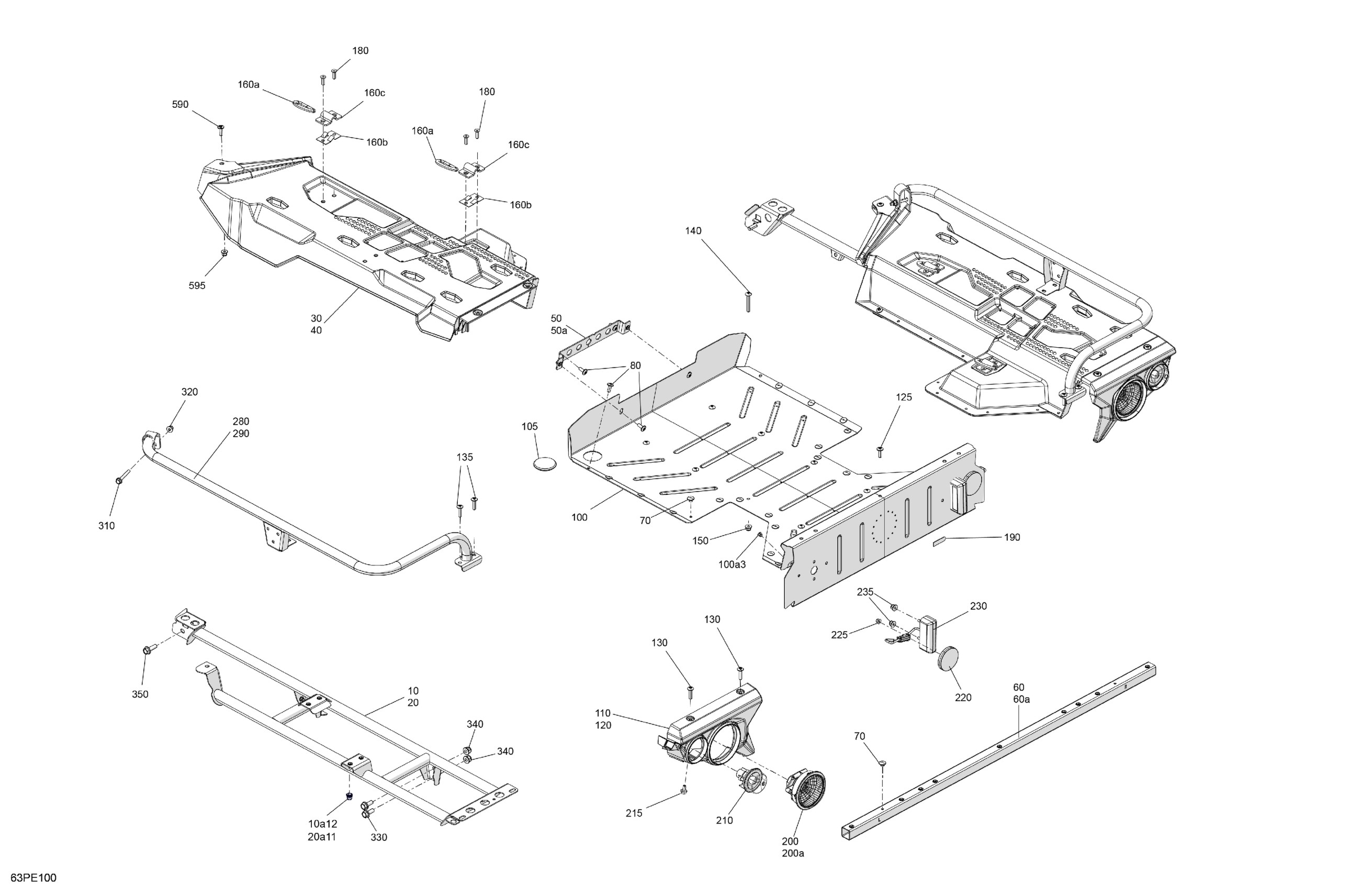

Can-Am CE - OUT-MAX - 6X6 - XU+ - 450 EFI - 5ESA - Tundra Green - 2025 07- Body - Cargo Diagram

RH Fender Support | Includes 1000 to 1000a

Clinch Nut M6 Hexsert

LH Fender Support | Includes 1010 to 1010a

Clinch Nut M6 Hexsert

RH Cargo Fender

CARGO FENDER LH - Call your local BRP dealership

Fastening Plate | Includes 1040 to 1040a

Clinch Nut M6 Hexsert

Rear Support Tube | Includes 1050 to 1050a

Clinch Nut M6 Hexsert

Black, Pop Rivet 3/16 X ,425

Torx Head Screw M6 X 16

Middle Area | Includes 100 to 100a.c

Avex Rivet

Black, Wheel Cap

RH Light Cover

LH Light Cover

Torx Screw M6 X 20

Torx Truss Screw M6 X 25

Torx Truss Screw M6 X 25

Torx Screw M6 X 45

Hex. Flange Elastic Nut M6 x 1.0

D-Ring

Tie-Down Ring Spring

Tie-Down Ring Bracket

Socket Screw HD.CTSK.DIN.7991 | not shown

BRP Logo 68 mm

Tail Light Ass'y | Includes 32 to 33

Bulb

Flasher | Europe

Hex. Flange Screw M6 X 12, Scotch Grip

Red, Reflector

Flange Elastic Nut M5

Light | Includes 220j to 220j1

Hex. Flange Elastic Nut M6 x 1.0

LH Side Rail

RH Side Rail

Hex. Flange Screw

Hex. Flange Elastic Nut M6

Hex. Flange Screw M8 X 20

Hex. Elastic Flange Nut M8

Hex Flange Screw M8 X 25 S.Grip

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6
