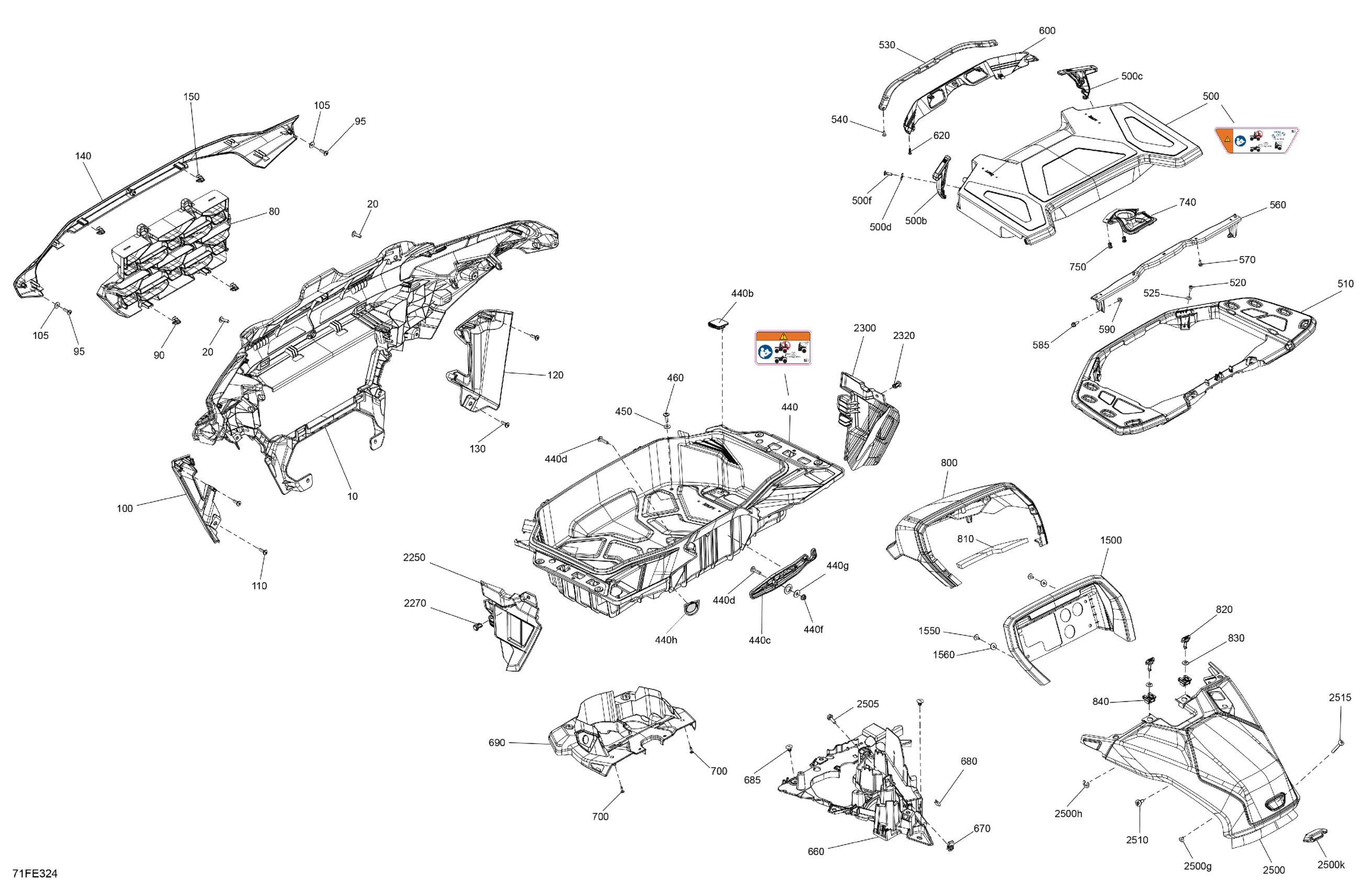

Can-Am CE - OUT-MAX - 4X4 - LTD - 1000R - 4WSD - Dusty Navy - 2025 07- Body - Front Section Diagram

#

Description
Price

10

Front Grille

705015377

$88.99

20

Screw Torx M6 X 20

250001257

$1.68

80

Air Inlet Grille

705017947

$26.99

90

Clip

517306478

$1.09

95

Torx Screw K50 X 16

250000720

$1.69

100

LH Grille Trim

705018179

$18.49

105

Washer M5

250200025

$0.74

110

Torx Screw K50 X 16

250000720

$1.69

120

RH Grille Trim

705018185

$18.49

130

Torx Screw K50 X 16

250000720

$1.69

140

Dusty Navy Blue, Front Grille Trim

705019485

$89.99

150

Clip

517306478

$1.09

440

Front Storage Box Kit

715010525

$229.99

440b

Box Cap

705015244

$9.49

440c

Cam

705018769

$11.99

440d

Torx Truss Screw M6 X 25

250000807

$2.11

440f

Hex. Flange Nut M6

233161414

$2.11

440g

Flat Washer

250200097

$2.11

440h

Body Cap

705014660

$6.39

450

Stainless Steel Flat Washer

234062670

$2.11

460

Screw Torx M6 X 20

250001257

$1.68

500

Front Box Cover Kit

715010805

$79.99

500b

Latch

707901191

$8.49

500c

Latch

707901192

$8.49

500d

Washer M5

250200025

$0.74

500f

Torx Screw K50 X 16

250000720

$1.69

510

Front Luggage Rack Ass'y

705019088

$90.99

520

Screw Torx M6 X 20

250001257

$1.68

525

Flat Washer 6 mm

234062410

$0.77

530

Rack Reinforcement

705211758

$61.99

540

Screw PT Type K-50 X 16

250000959

$2.11

560

Rack Reinforcement

705211757

$61.99

570

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

585

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

590

Hex. Flange Nut M8

233181414

$1.15

600

Front Box Trim

705017864

$89.99

620

Torx Screw Truss Head K50X20 T20

250000760

$2.11

660

Multi Purpose Support

705018722

$15.49

670

Panel Nut M6 X 1.0

250100198

$2.11

680

Clip

414479100

$1.90

685

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

690

Dashboard Support

705017688

$44.99

700

Torx Screw K50 X 16

250000720

$1.69

740

Seperation Panel

705019227

$45.99

750

Tuflok Plastic Rivet

293150230

$1.47

800

Dashboard

705015788

$46.99

810

Foam

705015867

$8.59

820

Quarter Turn

708400278

$4.29

830

Washer

708400286

$3.99

840

Clip

708400285

$3.99

1500

Console Trim

705018176

$46.99

1550

Plastite Screw M4 X 10

250000805

$2.11

1560

Washer M5

250200025

$0.74

2250

LH Front Radiator Deflector

705015256

$19.99

2270

Tuflok Plastic Rivet

293150230

$1.47

2300

RH Front Radiator Deflector

705015257

$19.99

2320

Tuflok Plastic Rivet

293150230

$1.47

2500

Glove Box Ass'y | Includes 2500 to 2500k

705019692

$76.99

2500g

Plastite Screw M4 X 10

250000805

$2.11

2500h

Circlip

293370050

$0.46

2500k

Insulating Pad

293830251

$10.49

2505

Hex. Flange Screw M6 X 20

207662046

$2.11

2510

Torx Screw M6 X 20

250000722

$1.68

2515

Torx Screw K50 X 16

250000720

$1.69
