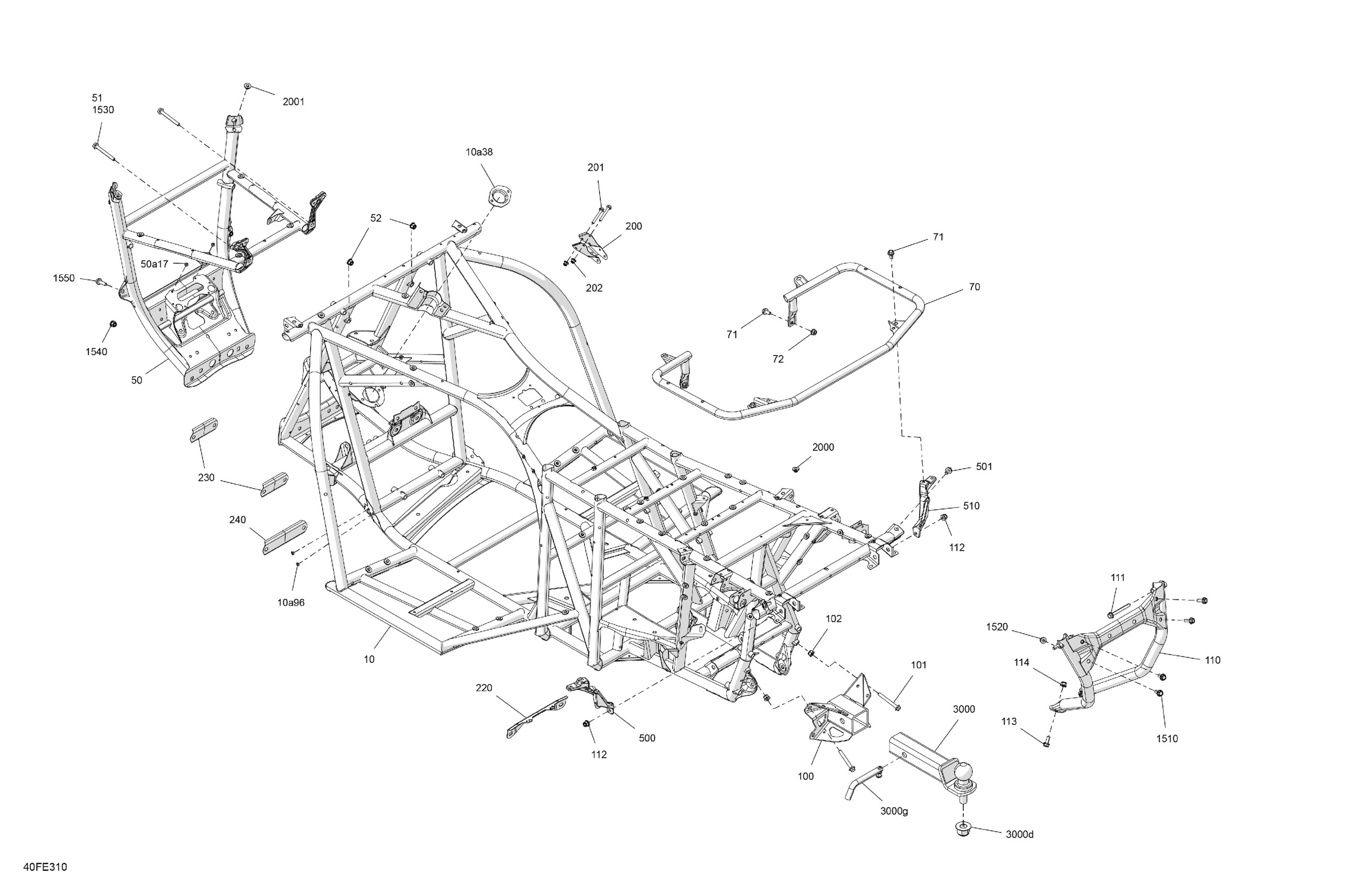

Can-Am CE - OUT-MAX - 4X4 - DPS - 1000R - 4RSB - Granite Grey - 2025 06- Frame - System Diagram

Chassis Ass'y | Includes 10 to 10a108a

715010300

$2,959.99

Lower Bearing Support

709402713

$43.99

Pop Rivet 3/16 X ,425

293150293

$0.35

Front Bumper | Includes 50 to 50a17

705211446

$264.99

Pop Rivet 3/16 X ,425

293150293

$0.35

Hex. Flange Screw M8 X 70

207687044

$7.41

Hex. Flange Elastic Nut M8

233281414

$1.47

Rear Bumper Anchorage

705211733

$248.99

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

Hex. Flange Nut M8

233181414

$1.15

Hex Torx Truss M8 X30

250000745

$3.17

Trailer Hitch | Includes 100 to 100a3

705211925

Unavailable

Hex. Flange Screw, M8 X 65

207686544

$13.16

Hex. Flange Elastic Nut M8

233281414

$1.47

Rear Chassis Reinforcement Kit

715010516

$91.99

Hex. Flange Screw M8 X 70

207687044

$7.41

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47

Lever Support

705208228

$12.49

Hex. Flange Screw M6 X 45

207664544

$1.46

Hex. Flange Elastic Nut M6

233261466

$2.00

Rear Suspension Arm Reinforcement

705209026

$5.29

Front Upper Suspension Arm Reinforcement

705212296

$5.49

Front Lower Suspension Arm Reinforcement

705211664

$5.49

LH Machined Bumper Anchorage

705211736

$37.99

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

RH Machined Bumper Anchorage

705211738

$37.99

Hex Screw Washer Head M8 X 20

207582054

$3.17

Hex. Flange Nut M8

233181414

$1.15

Hex. Flange Screw S.Grip M8 X 75

250001296

$3.06

Hex. Flange Nut M8

233181414

$1.15

Hex Screw Washer Head M8 X 20

207582054

$3.17

Threaded Insert

293450383

$2.61

Threaded Insert

293450383

$2.61

Trailer Hitch Ass'y | Includes 3000 to 3000g

705211765

$122.99

Elastic Flange Nut M20

250100104

$12.66

Hitch Pin

705204490

$52.99
