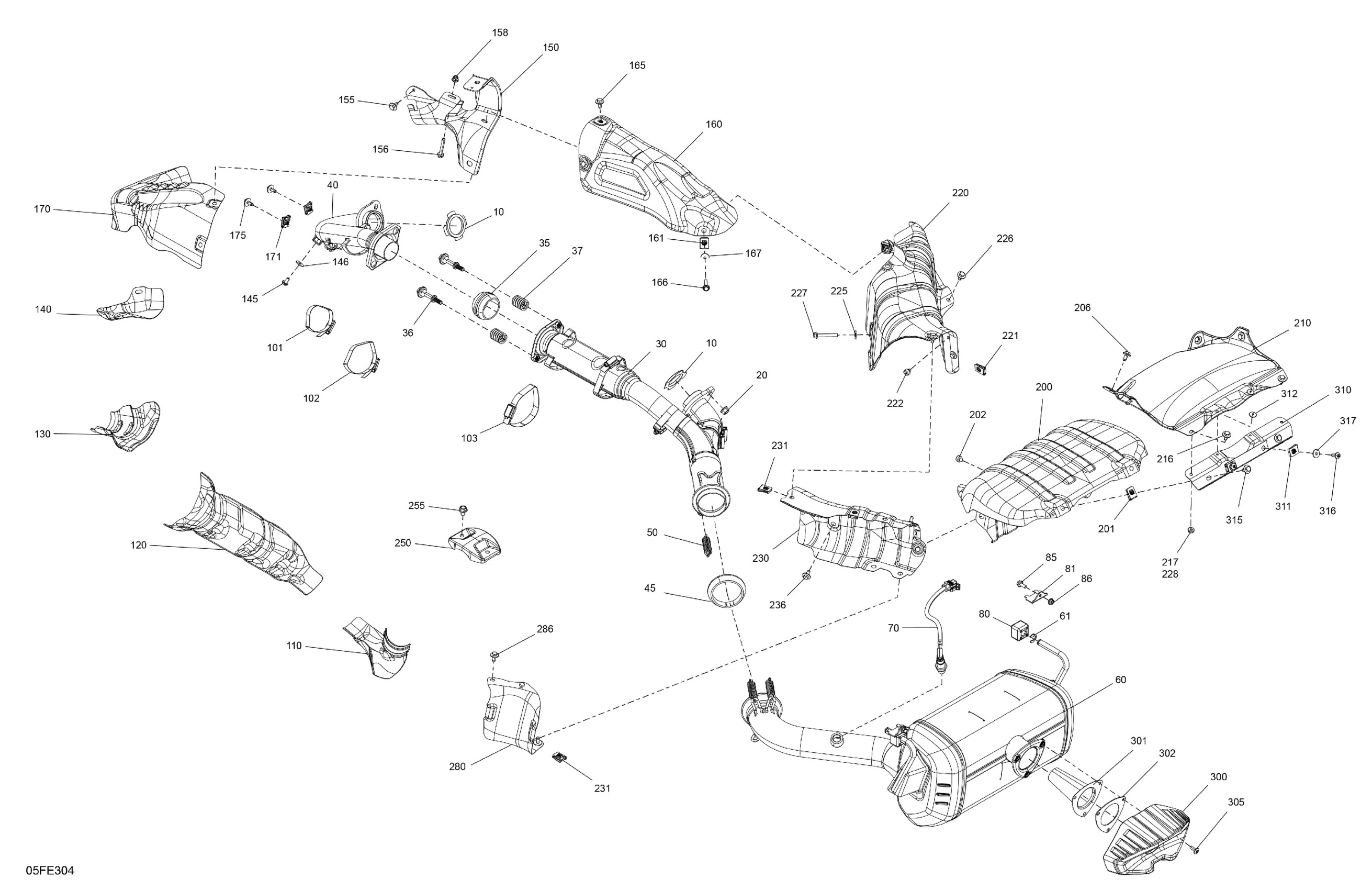

Can-Am CE - OUTLANDER - 4X4 - XT - 850 - 4ESR - Fiery Red Metallic - 2025 02- Engine - Exhaust Diagram

#

Description
Price

10

Exhaust Gasket

707602697

$5.98

20

Hex. Flange Nut

233081436

$2.00

30

Rear Exhaust Pipe

707603659

$677.99

35

Exhaust Gasket

707603774

$14.49

36

Hex. Flange Screw M8 X 38

250001306

$2.09

37

Compression Spring

707603775

$33.99

40

Front Exhaust Pipe

707602613

$142.99

45

Exhaust Gasket

707603179

$8.57

50

Spring

707601834

$6.35

60

Exhaust Muffler

707602621

$741.49

61

External Retaining Ring

293370184

$1.89

70

Oxygen Sensor

707600872

$144.99

80

Vibration Damper

707603000

$7.90

81

Muffler Support

707603200

$18.54

85

Hex Flange Screw M6 X 16

250000906

$5.29

86

Hex. Flange Nut M6

233161414

$2.11

101

Tridon Gear Clamp

293650337

$12.49

102

Tridon Gear Clamp

293650338

$12.49

103

Tridon Gear Clamp

293650339

$12.49

110

Heat Shield

707603823

$85.99

120

Heat Shield

707603822

$85.99

130

Heat Shield

707603821

$85.99

140

Heat Shield

707603845

$53.99

145

Hex. Flange Screw M6 X 12

250000574

$2.11

146

Flat Washer

250200082

$0.42

150

Heat Shield Support

707603607

$19.02

155

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.17

156

Hex. Flange Screw M6 X 45

207664544

$1.46

158

Hex. Flange Nut M6

233061414

$1.68

160

Heat Shield

707602584

$36.99

161

Panel Nut M6 X 1.0

250100208

$1.46

165

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.17

166

Hex. Flange Screw M6 X 45

207664544

$1.46

167

Flat Washer 6 mm

234062410

$0.77

170

Heat Shield

707603265

$36.99

171

Panel Nut M6 X 1.0

250100208

$1.46

175

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.17

200

Heat Shield

707603239

$36.99

201

Panel Nut M6 X 1.0

250100208

$1.46

202

Rubber Bumper

293830005

$8.09

206

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.17

210

Heat Shield

707603768

$60.99

216

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.17

217

Hex. Flange Nut M6

233161414

$2.11

220

Heat Shield

707603237

$36.99

221

Panel Nut M6 X 1.0

250100208

$1.46

222

Rubber Bumper

293830005

$8.09

225

Flat Washer 6 mm

234062410

$0.77

226

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.17

227

Hex. Flange Screw M6 X 45

207664544

$1.46

228

Hex. Flange Nut M6

233061414

$1.68

230

Heat Shield

707603003

$36.99

231

Panel Nut M6 X 1.0

250100208

$1.46

236

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.17

250

Heat Shield

707603005

$13.49

255

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

280

Heat Shield

707603006

$13.49

286

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.17

300

Muffler Trim

707603759

$84.99

301

Spark Arrestor

707603520

$10.11

302

Exhaust Gasket

707603102

$8.57

305

Torx Head Screw M6 X 16

250000717

$2.11

310

Heat Shield Support

707603767

$6.35

311

Panel Nut M6 X 1.0

250100208

$1.46

312

Pop Rivet

293150310

$0.58

315

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.17

316

Torx Head Screw M6 X 16

250000717

$2.11

317

Stainless Steel Flat Washer

234062670

$2.11
