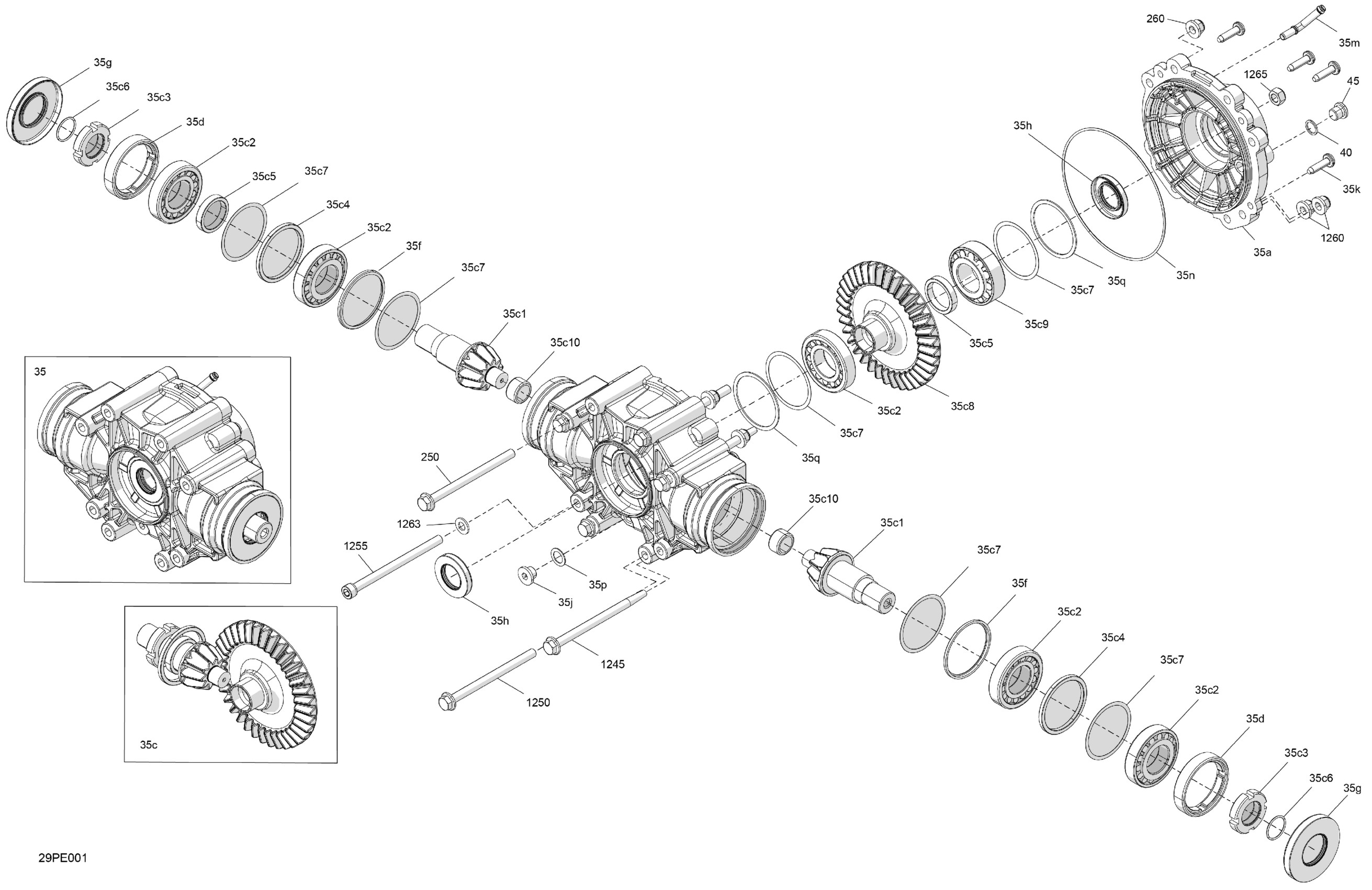

Can-Am CE - OUTLANDER - 6X6 - XU+ - 1000 EFI - 2HSA - Boreal Green - 2025 04- Drive - Middle Drive Unit Diagram

Description

Price

Middle Drive Unit Ass'y | Includes 35 to 35r

705503692

$1,324.49

35a

Case Cover | Built Feb 2019 and Up

705503089

$66.49

35c

Gear Kit - 10/36 teeth | Built Feb 2019 and Up

703501031

$389.99

35c1

Geart 10 Teeth

705502809

Unavailable

35c2

Roller Bearing

705502174

Unavailable

35c3

Nut

705501550

$21.99

35c4

Differential Shim

705501552

Unavailable

35c5

Differential Shim

705501553

Unavailable

35c6

O-Ring

705501554

$5.03

35c7

Differential Shim

705501725

Unavailable

35c8

Gear 36 Tooth

705502810

Unavailable

35c9

Roller Bearing

705502173

Unavailable

35c10

Needle Bearing

705501760

Unavailable

35d

Nut

705501549

$32.99

35f

Differential Shim

705501586

Unavailable

35g

Oil Seal

705501557

$19.49

35h

Oil Seal

705501556

$17.99

35j

Fill Level Plug | 4X4

705500504

$10.01

35k

Screw

705502063

$3.24

35m

Breather Tube

705501584

$14.99

35n

O-Ring

705501711

$10.54

35p

Copper Washer | 4X4

705500506

$0.45

35q

Differential Shim

705501555

Unavailable

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

250

Hex. Flange Screw M10 X 135

250001041

$5.59

260

Hex. Flange Elastic Nut M10

233201436

$2.11

1245

Hex. Flange Screw M10x145

705502741

$8.09

1250

Hex. Flange Screw M10 X 135

250001041

$5.59

1255

Screw Socket HD M10 X 140

250001094

Unavailable

1260

Hex. Flange Elastic Nut M10

233201436

$2.11

1263

WASHER M10 - Call your local BRP dealership

20005

Unavailable

1265

Elastic Stop Nut M10

232500416

$1.90
