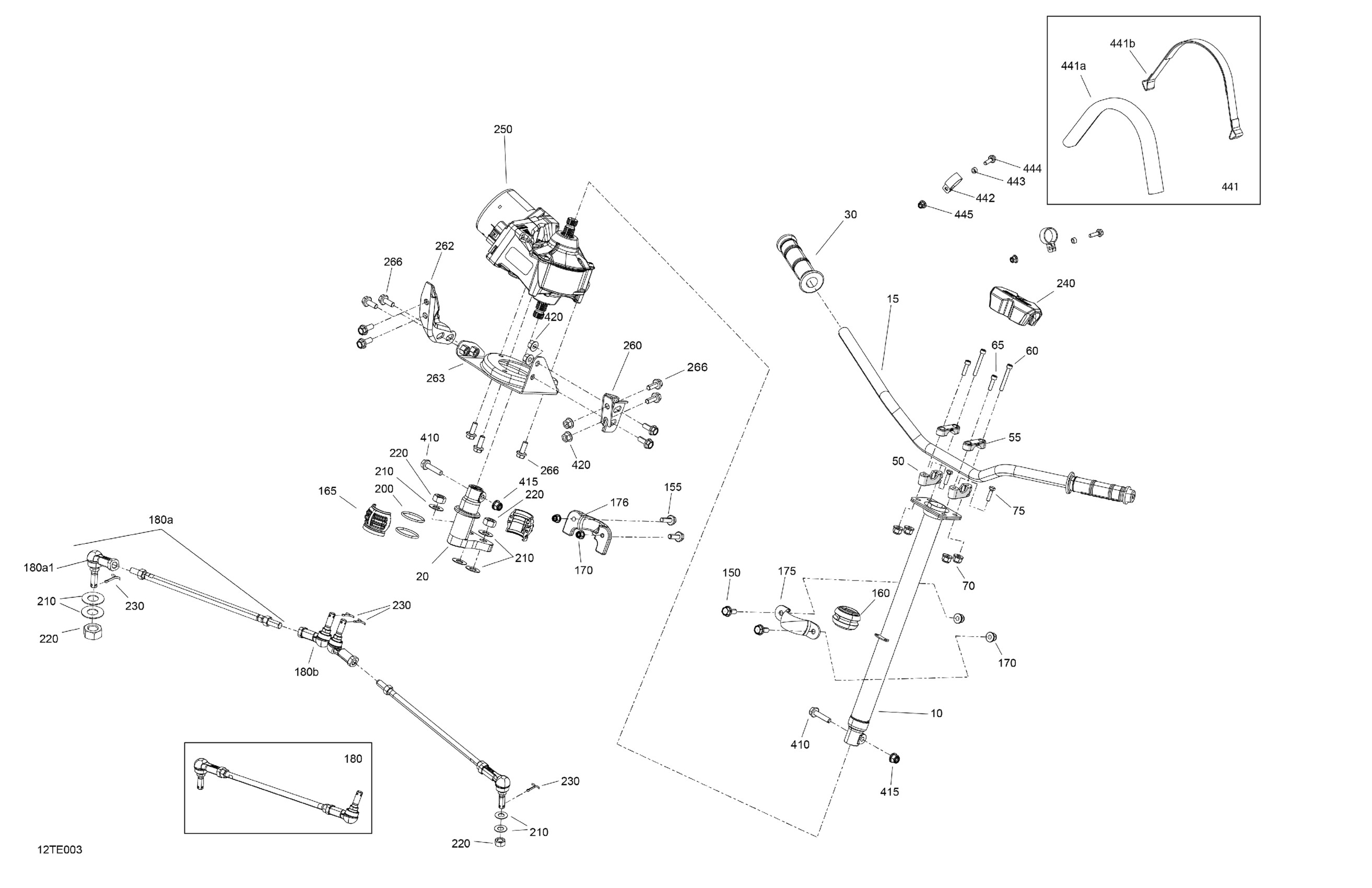

Can-Am CE - RENEGADE - 4X4 - XMR - 1000R EFI - 5USD - Hyper Silver - 2025 03- Mechanic - Steering Diagram

Main Tube Kit | Model With DPS

703501108

$74.99

Anodized Handlebar | Package XTP, XXC

709402292

$63.49

Pitman Arm | Model XMR

703501161

$43.99

Handle Grip

709400493

$14.83

Lower Mounting Clamp

709402750

$25.99

Upper Mounting Clamp

709402749

$25.99

Socket Head Screw M8 X 60

205086060

$4.12

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Screw M8 X 30

207183060

$1.58

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 25

207682544

$1.35

Spherical Bushing

709402169

$7.65

Spherical Half Bushing

709400783

$7.65

Hex. Elastic Flange Nut M8

233281416

$1.48

Upper Column Attachment

709400827

$1.09

Column Attachment

709401428

$38.99

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$110.99

Not Available As Spare Parts

XXX

Unavailable

LH Ball Joint

709402303

$36.99

RH Ball Joint

709402302

$36.99

O-Ring

293300068

$7.65

Hardened Washer

706200281

$2.85

Hex Nut M12

250100239

$2.00

Cotter Pin

211400013

$0.37

Steering Cover | XTP

709402328

$90.99

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

LH Power Steering Bracket | Model With DPS

709402184

$18.49

RH Power Steering Support

709402978

$28.99

Power Steering Support

709402969

$19.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.72

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Nut

233081436

$2.00

Strap Ass'y | Package XMR

506152115

$44.49

Strap Ass'y | Package XMR

506152115

$44.49

Strap Ass'y | Package XMR

506152115

$44.49

Deep Black, Crimp Clamp

709402998

$19.99

Bushing | Package XMR

506152156

$5.61

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6

233261466

$2.00
