Description

Price

10

Radiator

709200762

$419.99

20

Cooling Fan

715009561

$259.99

30

Hex Flange Screw M6 X 16

250000906

$5.29

40

Flat Washer 6 mm

234062410

$0.77

50

Grommet

709200948

$8.89

60

Hex. Flange Elastic Nut M6

233261466

$2.00

70

Overmolded Grommet

293720130

$4.69

80

Bushing

709001288

$9.09

90

Flat Washer

250200082

$0.42

100

Hex. Flange Screw M6 X 30

207663046

$1.69

110

Radiator Pressure Cap

709200207

$25.49

140

Norma Spring Clamp

293650108

$4.12

150

Norma Spring Clamp

293650109

$4.12

160

Norma Spring Clamp

293650108

$4.12

200

Coolant Hose

709201479

$34.99

210

Plug

709201461

$13.75

220

Tuflok Plastic Rivet

293150230

$1.47

240

Coolant Hose

709201478

$34.99

300

Hose

709201480

$34.99

310

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

310a

Not Available As Spare Parts

XXX

Unavailable

320

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

320a

Not Available As Spare Parts

XXX

Unavailable

330

Spring Clamp

414554800

$0.88

340

Spring Clamp

414420700

$0.72

360

Tube

709201205

$19.49

390

End Piece Latch

517304075

$4.69

400

Panel Latch

517303981

$12.99

500

Support

709201380

$38.99

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

520

Brake Pedal Spring

705600792

$9.10

530

Filler Neck

709200422

$18.49

540

Hex. Flange Screw M6 X 20

207662034

$2.11

550

Panel Nut M6 X 1.0

250100198

$2.11

570

Crimp Clamp

293650332

$4.44

600

Coolant Tank Ass'y | Includes 290 to 290b

703501190

$104.99

600b

Cap

709200586

$11.11

610

Hose Anchor

709200036

$11.12

620

Hex. Flange Screw M6 X 16

207661646

$1.36

630

Panel Nut M6 X 1.0

250100208

$1.46

640

Grommet

705003264

$4.09

650

Male Connector

414580700

$4.12

660

Bumper Reinforcement

705211684

$249.99

670

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

680

Hex. Flange Nut M8

233181414

$1.15

690

Panel Nut M8 X 1.25

250100236

$4.13

710

Gasket

709201191

$8.57

720

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

730

Hood Ass'y | Includes 730 to 730c

709201249

$289.99

730c

Edge Clip

517302785

$0.88

760

Spacer

709201214

$2.68

780

Torx Screw M6 X 45

250000748

$1.90

800

Gasket

709201192

$8.57

840

Tool Kit Support

709201464

$53.99

842

Washer M5

250200025

$0.74

843

Torx Screw K50 X 16

250000720

$1.69

844

Retaining Strap

708303885

$3.06

860

Hood

709201212

$28.99

870

Torx Truss Screw M6 X 20

250000488

$2.11

871

Torx Screw M6 X 35

250000541

$2.11

880

Hex. Flange Elastic Nut M6

233261466

$2.00

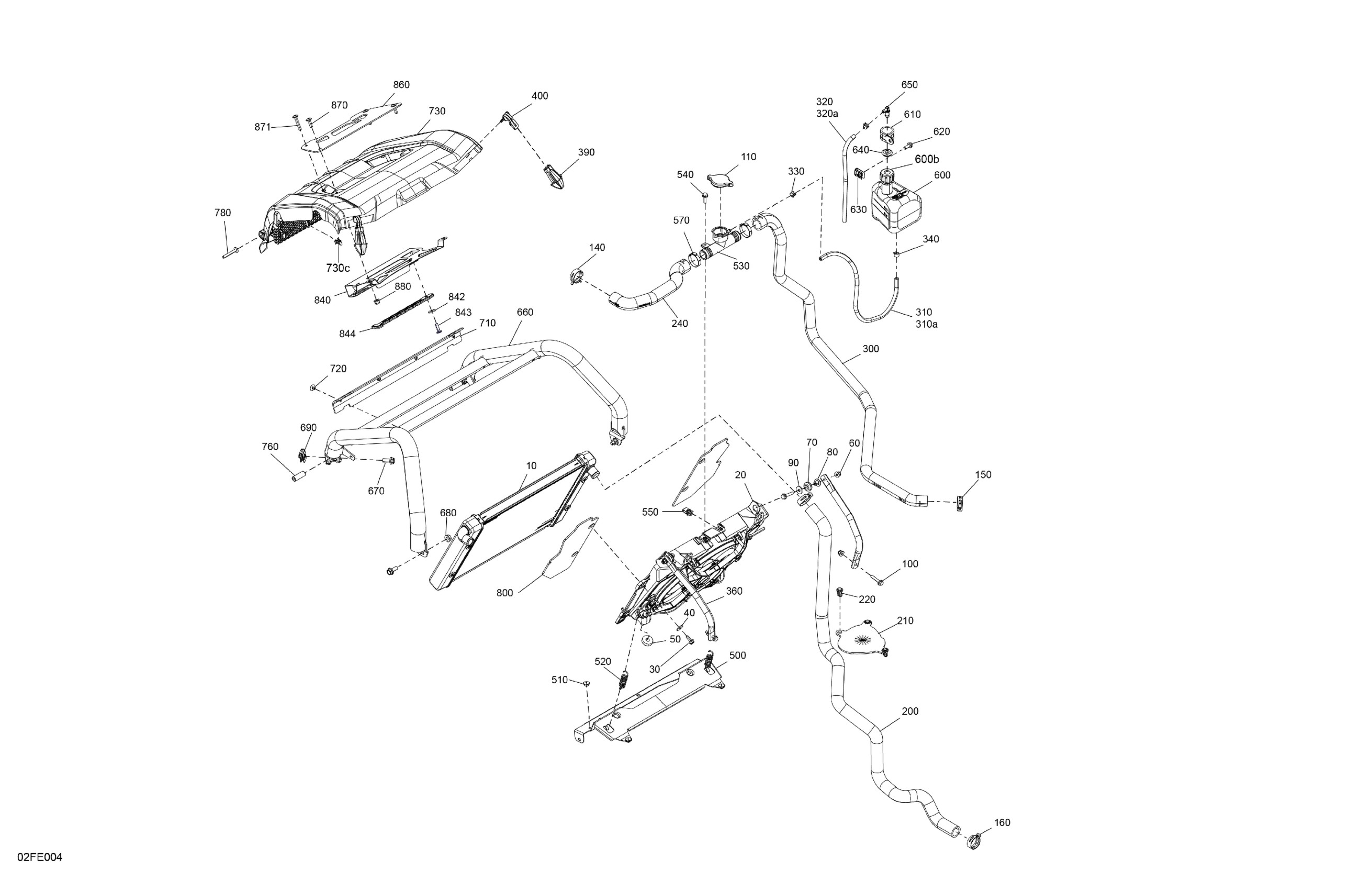

Can-Am CE - OUTLANDER - 4X4 - XMR - 700 - 1SSC - Legion Red - 2025 02- Engine - Cooling Diagram

Radiator

Cooling Fan

Hex Flange Screw M6 X 16

Flat Washer 6 mm

Grommet

Hex. Flange Elastic Nut M6

Overmolded Grommet

Bushing

Flat Washer

Hex. Flange Screw M6 X 30

Radiator Pressure Cap

Norma Spring Clamp

Norma Spring Clamp

Norma Spring Clamp

Coolant Hose

Plug

Tuflok Plastic Rivet

Coolant Hose

Hose

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Not Available As Spare Parts

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Not Available As Spare Parts

Spring Clamp

Spring Clamp

Tube

End Piece Latch

Panel Latch

Support

Black, Pop Rivet 3/16 X ,425

Brake Pedal Spring

Filler Neck

Hex. Flange Screw M6 X 20

Panel Nut M6 X 1.0

Crimp Clamp

Coolant Tank Ass'y | Includes 290 to 290b

Cap

Hose Anchor

Hex. Flange Screw M6 X 16

Panel Nut M6 X 1.0

Grommet

Male Connector

Bumper Reinforcement

Hex. Flange Screw M8 X 20, Scotch Grip

Hex. Flange Nut M8

Panel Nut M8 X 1.25

Gasket

Black, Pop Rivet 3/16 X ,425

Hood Ass'y | Includes 730 to 730c

Edge Clip

Spacer

Torx Screw M6 X 45

Gasket

Tool Kit Support

Washer M5

Torx Screw K50 X 16

Retaining Strap

Hood

Torx Truss Screw M6 X 20

Torx Screw M6 X 35

Hex. Flange Elastic Nut M6
