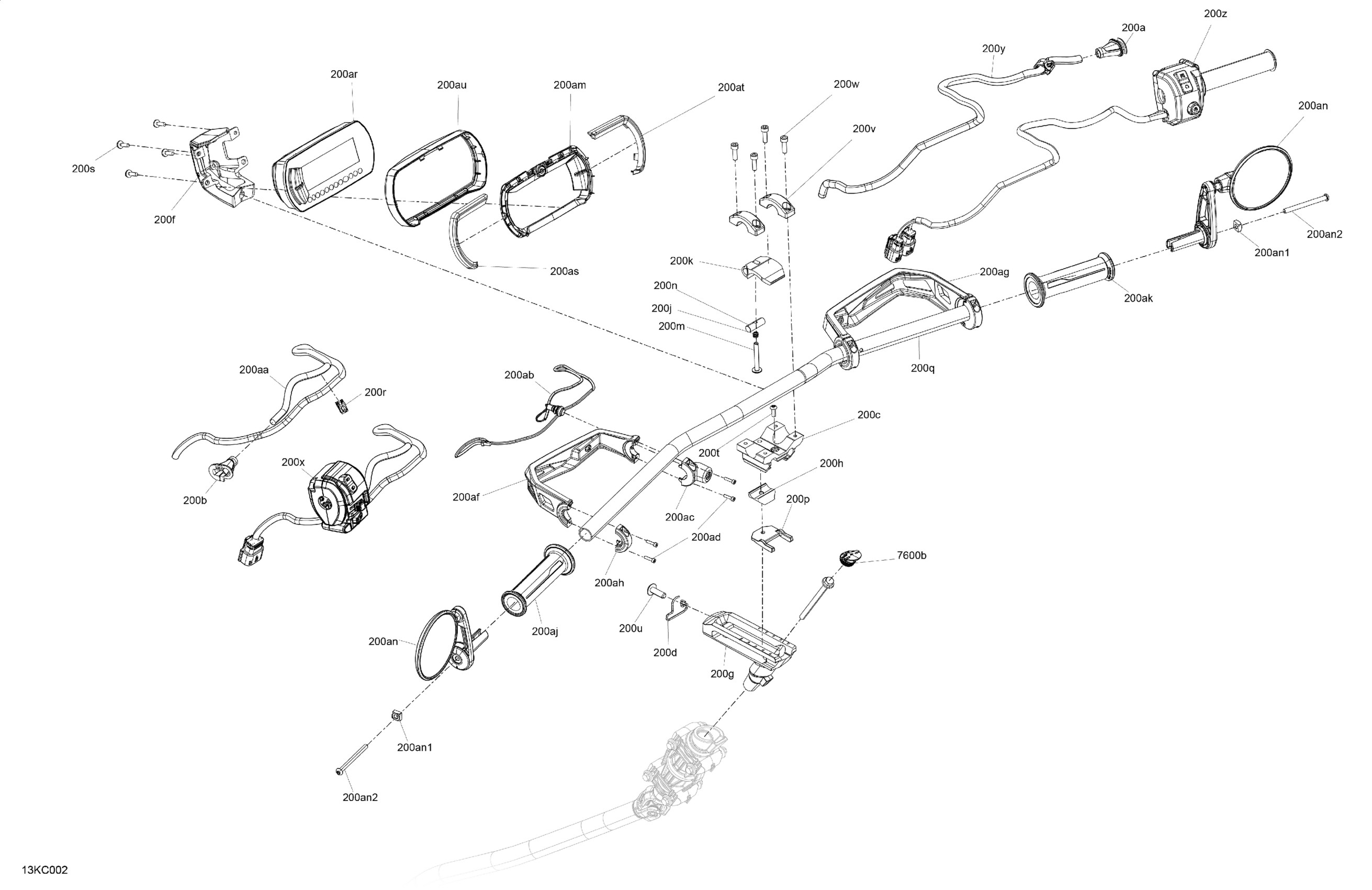

Can-Am 009 - RYKER RALLY 900 ACE, International, 2023 03- Mechanic - Handlebar Diagram

Description

Price

200a

Fairlead

709402502

$3.09

200b

Fairlead

709402513

$3.09

200c

Slide

709402452

$33.99

200d

Steel Cable Support

709402267

$14.99

200f

Deep Black, Cluster Support

709402243

$33.99

200g

Deep Black, Stem

709402683

$129.99

200h

Adjuster Block

506153164

$1.49

200j

Compression Spring

709402427

$4.99

200k

Deep Black, Release Lever

709402279

$24.49

200m

Torx-Truss Screw M6 X 45

709402444

$4.65

200n

Pin Lever

709402454

$8.50

200p

Rocker Arm

709402273

$14.22

200q

Bright White, Handlebar

709402843

$35.99

200r

Fairlead

709402707

$3.09

200s

Torx Screw K50 X 16

250000720

$1.69

200t

Screw-Torx Button Head M5 X 14

235551454

$7.51

200u

Torx Truss M8 X 25

250000874

$2.11

200v

Deep Black, Handle Bar Clamp

709402255

$4.59

200w

Socket Head Screw M6 X 20 S.Grip

205562054

$1.90

200x

LH Multifunction Switch

710007370

$148.49

200y

Braided Sleeve

415130141

$55.99

200z

RH Multifunction Switch & Twist Throttle

710007369

$264.99

200aa

Braided Sleeve

415130141

$55.99

200ab

Switch

710009333

$32.99

200ac

Switch Support

709402275

$17.59

200ad

Black, Socket Head Screw M4 X 16

250001011

$1.47

200af

Hand Guard Kit

219400998

$106.49

200ag

Hand Guard Kit

219400998

$106.49

200ah

Deep Black, Outside Fixing Clamp

709402171

$4.86

200aj

LH Handle Grip

709401984

$20.49

200ak

RH Handle Grip

709401985

$20.49

200am

Gauge Trim

709402742

$13.99

200an

Rear-View Mirror Ass'y

705018904

$19.49

200an1

Square Nut M6

232862412

$1.49

200an2

Torx Screw Button Head M6 X 70

235567084

$7.51

200ar

Multifunction Gauge Compact Mono

710008108

$409.99

200as

Deep Black, LH Trim Gauge

709402210

$28.99

200at

Deep Black, RH Trim Gauge

709402211

$28.99

200au

Rear Cluster Cap

709402092

$13.99

7600b

Cap

709402276

$0.99
