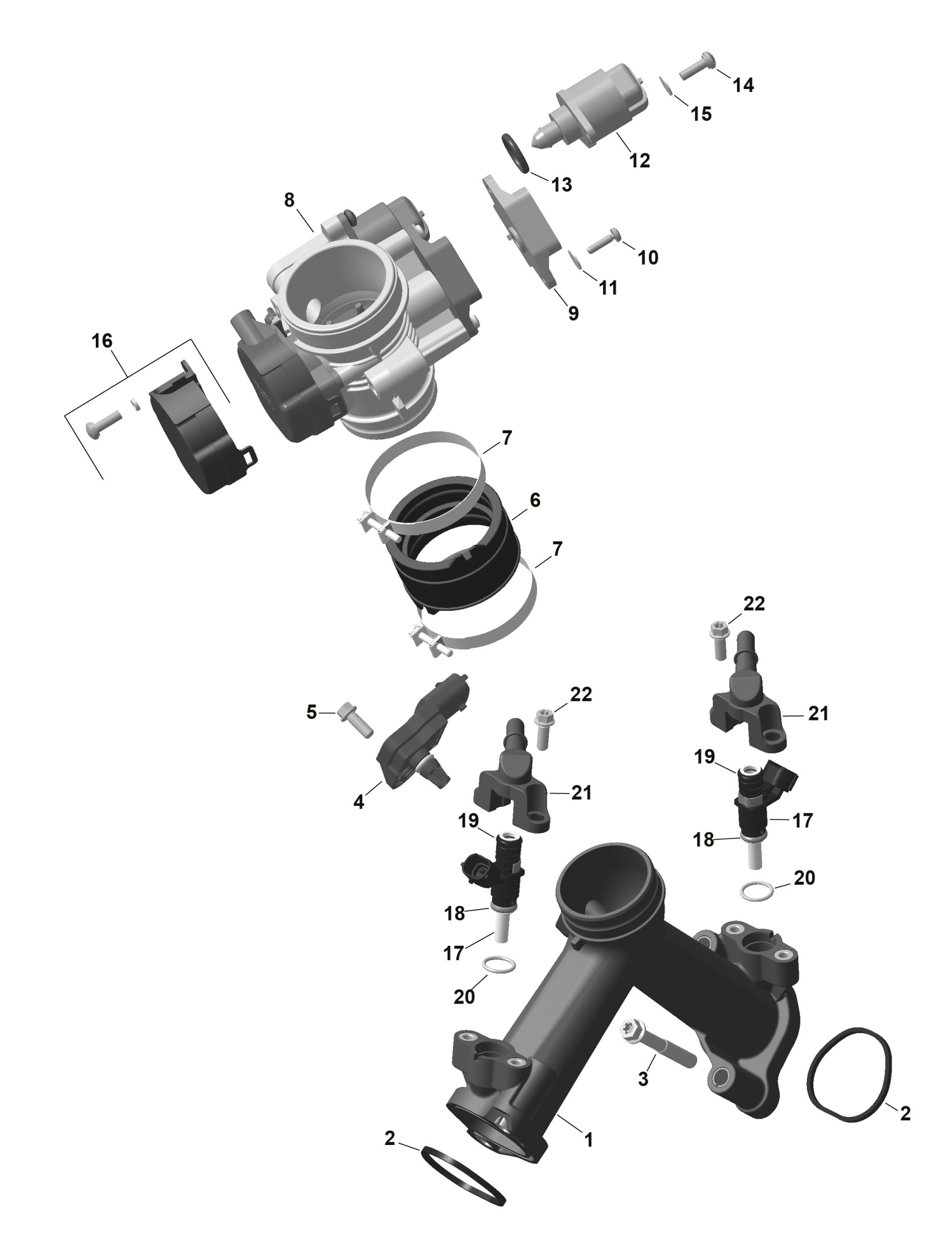

Can-Am International - OUT-MAX - 6X6 - DPS - 650 EFI - 5YSB - Tundra Green - 2025 01- ROTAX - Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420667581

$139.99

2

Gasket

420630642

$5.39

3

Torx Flange Screw M8 X 55

420641213

$7.41

4

Pressure And Temperature Sensor

420874658

$119.99

5

Hex. Flange Screw M6 X 12

420440149

$2.11

6

Intake Adaptor

420267480

$15.89

7

Clamp

420251480

$14.28

8

Throttle Body Ass'y | Includes 8 to 16

420685326

$709.99

9

Position Sensor

420866120

$98.99

10

Not Available As Spare Parts

XXX

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Idle Air Control Valve

420665941

$179.99

13

O-Ring

420631780

$4.44

14

Snap Ring

420845710

$4.12

15

Binding Head Screw M5 X 16

420440911

$14.28

16

Cover Kit

420281540

$20.99

17

Injection Valve Ass'y | Includes 17 to 19

420874840

$174.99

18

O-Ring

420431890

$7.49

19

O-Ring

420631220

$14.28

20

O-Ring

420631296

$0.76

21

Fuel Rail

420874901

$24.49

22

Torx Flange Screw M6 X 16

420440164

$2.19
