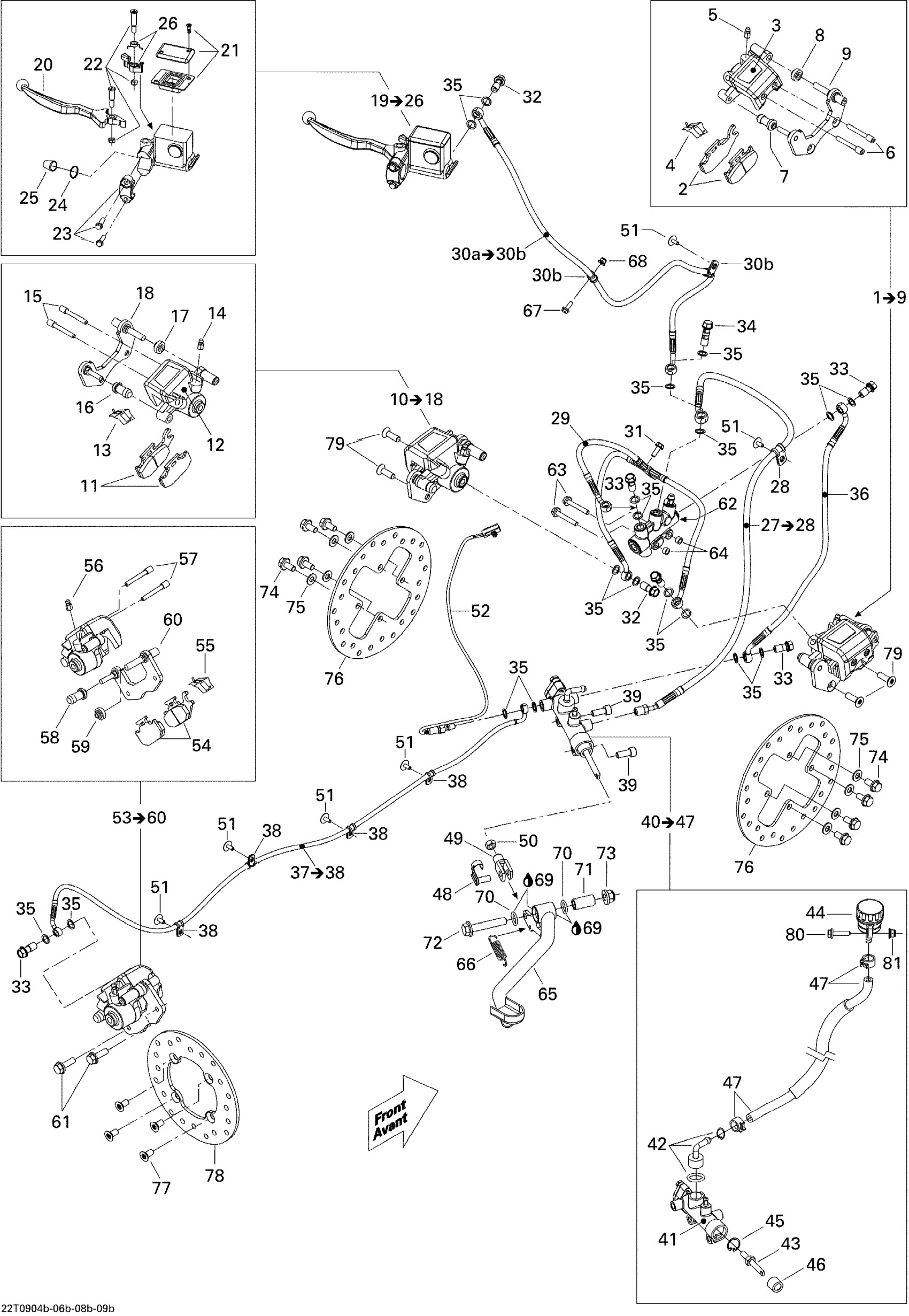

Can-Am Outlander Max 650 EFI XT, 2009 06- Hydraulic Brakes Europe Diagram

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

705600728

Unavailable

Brake Pad Kit

705600004

$51.99

Piston Set

705600078

$38.99

Spring

705600079

$15.81

Bleeding Screw

705600080

$16.87

Pin Set (2)

705600081

$20.49

Compression Boot

705600082

$10.06

Compression Boot

705600083

$10.06

Not Available As Spare Part - Friction Washer

Unavailable

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

705600729

Unavailable

Brake Pad Kit

705600014

$51.99

Piston Set

705600078

$38.99

Spring

705600079

$15.81

Bleeding Screw

705600080

$16.87

Pin Set (2)

705600081

$20.49

Compression Boot

705600082

$10.06

Compression Boot

705600083

$10.06

LH Caliper Support

705600297

Unavailable

Front Master Cylinder | Includes 19 to 26

705600844

$229.99

Lever Arm

705600243

$54.99

Cap Set

705600084

$24.99

Brake Lever Bolt Kit

705600246

$14.81

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

Brake Hose | Includes 27 to 28

705600691

Unavailable

Clamp

293650256

$5.49

BRAKE HOSE - Call your local BRP dealership

705600690

Unavailable

BRAKE HOSE - Call your local BRP dealership | Includes 30a to 30b

705600697

Unavailable

Clamp

293650256

$5.49

Hexagonal Head Screw

210262050

$2.11

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

Banjo Bolt

705600958

$6.35

Copper Washer

705601628

$4.44

LINE BRAKE - Call your local BRP dealership

705600759

Unavailable

Brake Line | Includes 34 to 35

705600930

$81.49

Clamp

293650256

$5.49

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

MASTER CYLINDER - Call your local BRP dealership | Includes 40 to 47

705600715

Unavailable

Piston Set

705600255

$64.49

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

Circlip

705600068

Unavailable

Compression Boot

705600090

Unavailable

OIL HOUSING HOSE - Call your local BRP dealership

705600262

Unavailable

Pin Kit

219702305

$34.99

Yoke

705600100

Unavailable

Hex. Nut M8

232081414

$0.72

Pop Rivet 3/16"

390406500

$0.88

Switch

710003837

$42.49

Rear Caliper | Includes 48 to 56

705600577

$317.99

LH Brake Pad Kit

705600398

$51.99

Spring

705600079

$15.81

Bleeding Screw

705600080

$16.87

Pin Set (2)

705600081

$20.49

Compression Boot

705600082

$10.06

Compression Boot

705600083

$10.06

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

SPLITTER - Call your local BRP dealership

705600617

Unavailable

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

Bushing | DS 650 X

293900104

$5.50

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

Unavailable

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Synthetic Grease, 400 G

293550010

Unavailable

O-RING - Call your local BRP dealership

293300053

Unavailable

SPACER - Call your local BRP dealership

705600283

Unavailable

Hex. Flange Screw M10 X 55

207605544

$3.38

Hex. Flange Elastic Nut M10

233201414

$1.58

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

Conical Spring Washer M8

234281474

$1.48

Disk Brake

705600603

$50.99

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

Disk Brake

705600604

$50.99

Torx Screw M8 X 25, Scotch Grip

250000143

$2.19

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
