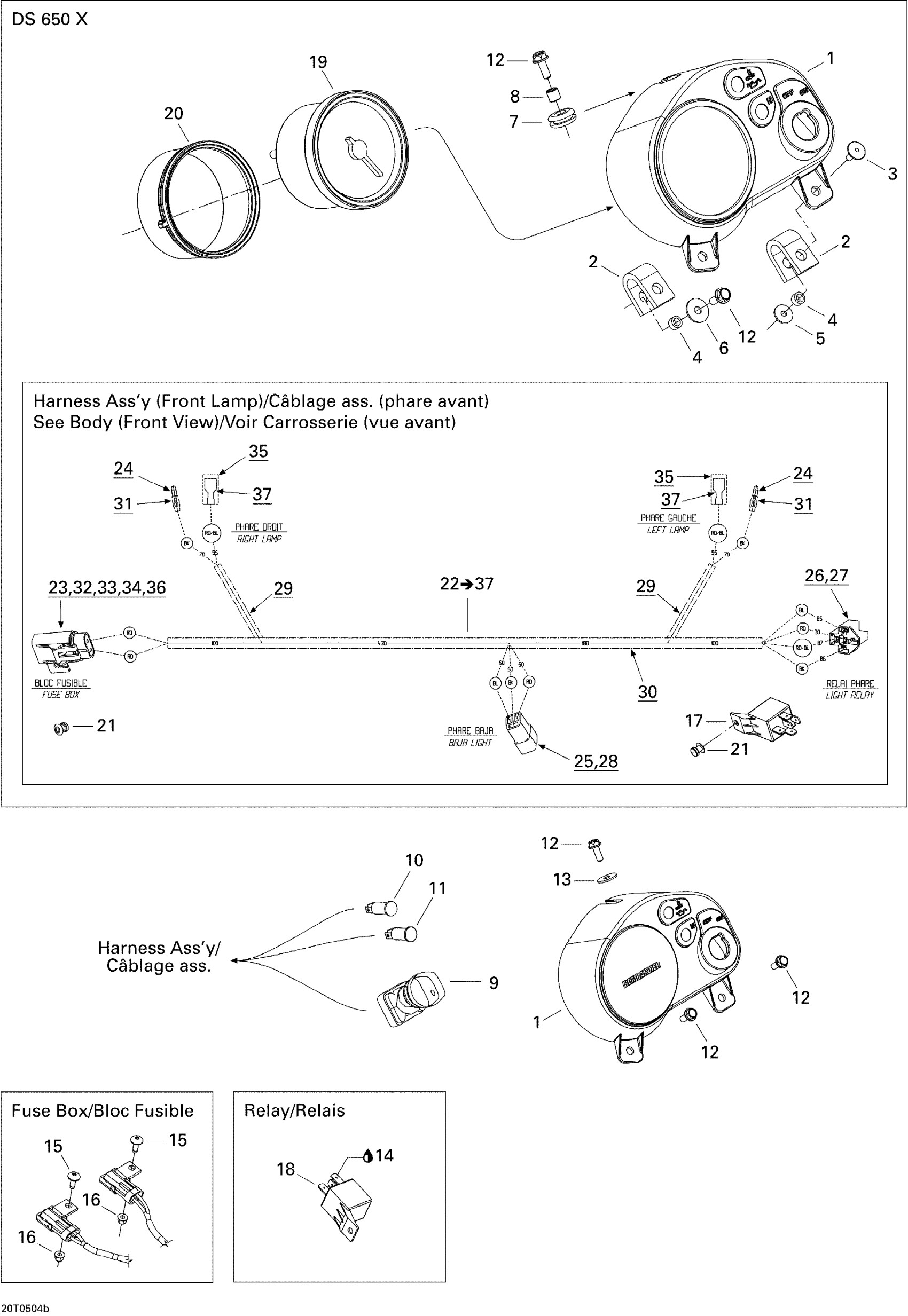

Can-Am DS 650/DS 650 X, 2005 10- Electrical System 2 Diagram

#

Description
Price

1

DASHBOARD - Call your local BRP dealership | DS 650

710000060

Unavailable

1

DASHBOARD - Call your local BRP dealership | DS 650 X

710000250

Unavailable

2

HOLDER - Call your local BRP dealership | DS 650 X

710000505

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4

Bushing | DS 650 X

293900104

$5.50

5

Washer

517124300

$0.19

6

Flat Washer

224061201

$1.37

7

Grommet

709000582

$4.69

8

Bushing

293900105

$7.65

9

IGNITION SWITCH - Call your local BRP dealership

710000075

Unavailable

9

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

9

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

10

Pilot Lamp, Red

710000062

Unavailable

11

Pilot Lamp

710000063

Unavailable

12

Hex. Flange Screw M6 X 16

210261650

$1.67

13

Flat Washer

224061201

$1.37

14

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

15

Forming Screw M5 x 16

250000676

$1.01

16

Hex. Flange Elastic Nut M5

233251414

$1.04

17

Relay | DS 650 X

710010053

$23.49

18

Relay | DS 650 X

710010053

$23.49

19

TACHOMETER - Call your local BRP dealership | DS 650 X

710000426

Unavailable

20

GAUGE SUPPORT - Call your local BRP dealership | DS 650 X

710000427

Unavailable

21

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

22

FRONT LAMP HARNESS ASS'Y - Call your local BRP dealership | DS 650 X / Includes 22 to 37

710000256

Unavailable

23

Cushion

278000805

$3.28

24

Male Terminal

278000230

$4.39

25

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

26

Female Housing, 5 Circuits

409209900

$9.59

27

Female Terminal

561503100

$2.41

28

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

29

Tubing 6 Mm 3000Mm Long

219704425

$13.75

30

Was 409901700 Tubing (9 mm)

219704399

$84.99

31

Insulated Sheath

278001008

$3.28

32

Fuse, 15 Amperes

278000343

$3.28

33

Fuse Holder Cap

278001326

$7.69

34

Fuse Holder

278001325

$8.79

35

Rubber Envelope Terminal

710000115

Unavailable

36

Female Terminal

710000113

$6.99

37

FEMALE TERMINAL - Call your local BRP dealership

710000114

Unavailable
