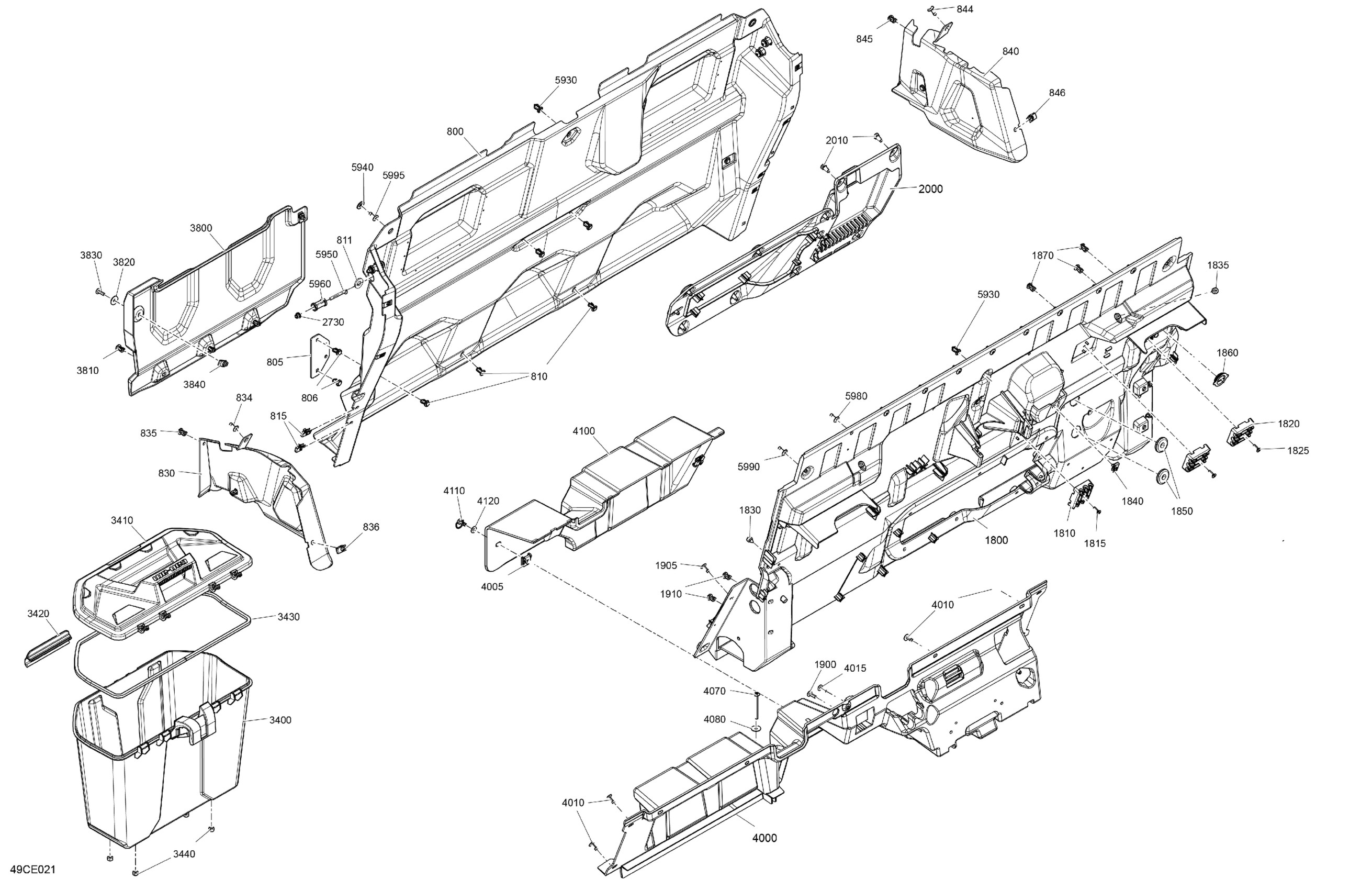

Can-Am North America - Defender Max - HD10 - XMR - 8PSB - Wildland Camo - 67" Width - 2025 07- Cab Interior - Back Wall Diagram

Description

Price

800

Middle Deflector

707900997

Unavailable

805

Plate

707900469

$30.99

806

Tuflok Plastic Rivet

293150230

$1.47

810

Tuflok Plastic Rivet

293150230

$1.47

811

Washer

503192494

$3.17

815

Panel Nut M6 X 1.0

250100198

$2.11

830

LH Lower Panel

707900994

$82.99

834

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

835

Tuflok Plastic Rivet

293150230

$1.47

836

Panel Nut M6 X 1.0

250100198

$2.11

840

RH Lower Panel

707900995

$82.99

844

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

845

Tuflok Plastic Rivet

293150230

$1.47

846

Panel Nut M6 X 1.0

250100198

$2.11

1800

Rear Upper Cab Panel

707901101

$419.99

1810

Hose Support

707900788

$0.92

1815

Torx Screw K50 X 16

250000720

$1.69

1820

Hose Support

707900788

$0.92

1825

Torx Screw K50 X 16

250000720

$1.69

1830

Rubber Bumper

293830005

$8.09

1835

Rubber Bumper

293830005

$8.09

1840

Panel Nut M6 X 1.0

250100198

$2.11

1850

Grommet

293720119

$4.19

1860

Plug

293000125

$1.15

1870

Tuflok Plastic Rivet

293150230

$1.47

1900

Torx Screw M6 X 20

250000722

$1.68

1905

Black, Ornit Rivet 3/16 X ,800

293150306

$1.15

1910

Tuflok Plastic Rivet

293150230

$1.47

2000

Rear Access Cover

707900742

$83.99

2010

Torx Screw M6 X 20

250000712

$2.11

2730

Insert Half Hex Body M6 x 1.0

250100199

$3.19

3400

Storage Box

715003314

$106.49

3410

Storage Box

715003314

$106.49

3420

Clip | Outlander Max

269501945

$15.89

3430

Neoprene Seal

293250453

$19.49

3440

Rubber Bumper

293830005

$8.09

3800

Rear Panel

707900996

$98.99

3810

Tuflok Plastic Rivet

293150230

$1.47

3820

Flat Washer M6.6 X 22

250200162

$2.32

3830

Torx Screw M6 X 20

250000722

$1.68

3840

Panel Nut M6 X 1.0

250100198

$2.11

4000

Lower Rear Cab Panel

707901242

$219.99

4005

Quarter Turn Nut

705002651

$4.76

4010

Black, Ornit Rivet 3/16 X ,800

293150306

$1.15

4015

Torx Screw M6 X 20

250000722

$1.68

4070

Torx Screw M6 X 70

250000954

$1.90

4080

Flat Washer M6.6 X 22

250200162

$2.32

4100

Battery Cover

707900743

$90.99

4110

Quarter Turn Screw

705002649

$15.87

4120

Washer

708400286

$3.99

5930

Tuflok Plastic Rivet

293150230

$1.47

5940

Flat Washer 8 mm, Nylon

292001663

$1.47

5950

Torx Truss M6 X 50

250000868

$2.11

5960

Spacer

707900470

$2.79

5980

Black, Ornit Rivet 3/16 X ,800

293150306

$1.15

5990

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

5995

Black, Pop Rivet 3/16 X ,550

293150292

$1.05
