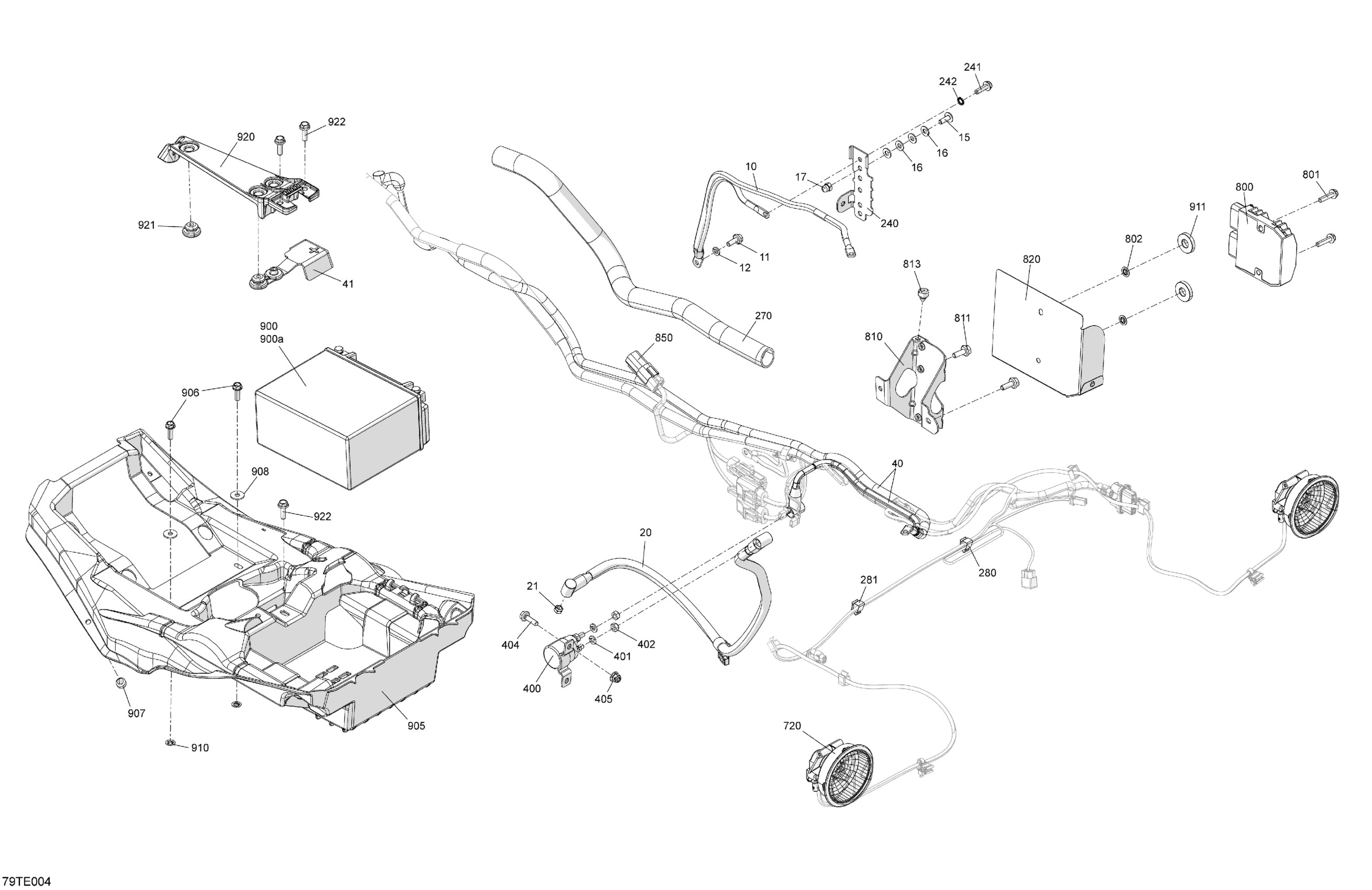

Can-Am North America - RENEGADE - 4X4 - XMR - 1000R EFI - 5USA - Scandi Blue - 2025 08- Electric - Rear Section Diagram

Description

Price

Ground Cable

710004382

$19.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Lock Washer Helical M6

234161601

$1.15

Torx Head Screw M6 X 16

250000717

$2.11

Flat Washer

224061121

$0.53

Domed Hexagonal Nut Din.1587

232361453

$1.68

Positive Cable

710004377

$27.99

Elastic Stop Nut M6

232561434

$1.99

Cable

710007437

$32.99

Battery Cable Cap

710006729

$7.20

240

Connector Bracket

710004118

$5.40

241

Hex. Flange Screw M6 X 20

210262040

$2.11

242

External Serrated Lock Washer 6 mm

234461608

$1.15

270

Protective Tubing

710003260

$33.99

280

Clip

710010204

$1.67

281

Clip

710010204

$1.67

400

Starter Relay

710007777

$48.49

401

Lock Washer Helical M6

234161601

$1.15

402

Elastic Stop Nut M6

232561434

$1.99

404

Hex. Flange Screw M6 X 20

207662054

$1.01

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

720

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

800

Voltage Regulator

710005842

$189.99

801

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

802

Push Nut

732610072

$2.19

810

Rectifier Support

710002587

$15.99

811

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

813

Rubber Bumper

293830005

$8.09

820

Deflector

710006746

$53.99

850

Housing

710003006

$8.79

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

905

Battery Support

710008370

$50.99

906

Hexagonal Head Screw

210262050

$2.11

907

Rubber Bumper

293830005

$8.09

908

Stainless Steel Flat Washer

234062670

$2.11

910

Push Nut

732610072

$2.19

911

Washer

503195752

$10.38

920

Retaining Plate

710009129

$8.69

921

Stopper Rubber

705014429

$5.95

922

Hex. Flange Screw M6 X 20

207662054

$1.01
