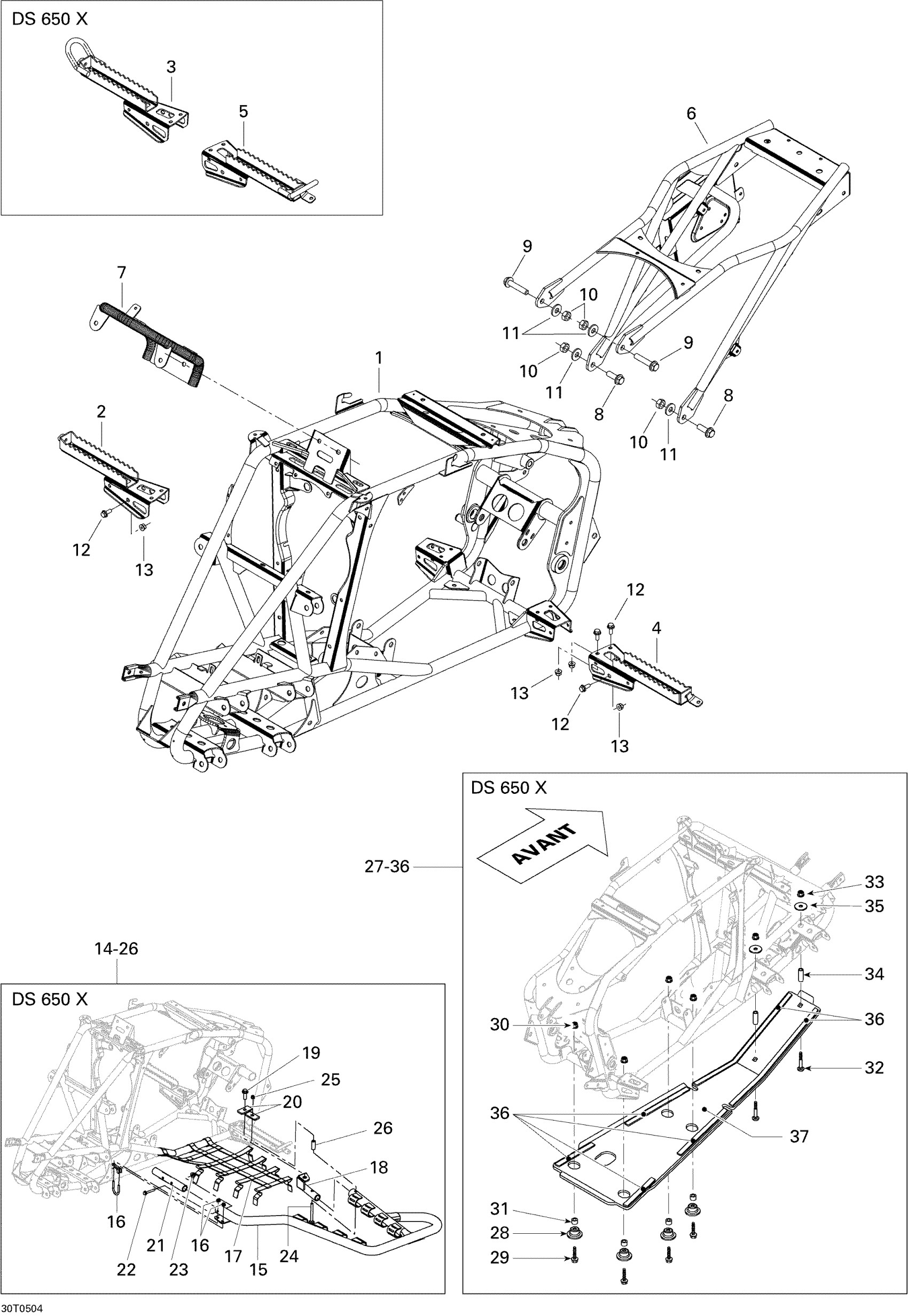

Can-Am DS 650/DS 650 X, 2005 09- Frame Diagram

#

Description
Price

1

FRAME - Call your local BRP dealership

705200922

Unavailable

2

RH Footrest, Black | DS650

705200684

Unavailable

3

RH FOOTREST, BLACK - Call your local BRP dealership | DS650 X

705200688

Unavailable

4

LH Footrest, Black | DS650

705200691

Unavailable

5

LH FOOTREST, BLACK - Call your local BRP dealership | DS650 X

705200695

Unavailable

6

Frame Extension

705200716

Unavailable

7

Box Support

705200717

Unavailable

8

HEX. FLANGED SCREW M10 X 25, SCOTCH GRIP - Call your local BRP dealership

207502587

Unavailable

9

HEX. FLANGED SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

207505087

Unavailable

10

Hex. Nut M10

232001487

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Hex. Flange Screw M6 X 16

207661644

$0.74

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Nerf Bar Kit | Includes 14 to 26

705001165

Unavailable

15

LH Nerf Bar

705001135

Unavailable

15

RH NERF BAR - Call your local BRP dealership

705001134

Unavailable

16

U-bolt Ass'y

705001136

Unavailable

17

RH NET - Call your local BRP dealership

705001137

Unavailable

17

LH NET - Call your local BRP dealership

705001138

Unavailable

18

RH Support

705001139

Unavailable

18

LH SUPPORT - Call your local BRP dealership

705001140

Unavailable

19

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

20

PLATE - Call your local BRP dealership

705001141

Unavailable

21

SUPPORT - Call your local BRP dealership

705001142

Unavailable

22

Hex. Flange Screw M6 X 45

207664544

$1.46

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

24

M8 X 80 CARRIAGE BOLT - Call your local BRP dealership

207788044

Unavailable

25

Hex. Flange Elastic Nut M8

233281414

$1.47

26

BUSHING - Call your local BRP dealership

503189064

Unavailable

27

Protector Kit | Includes 27 to 36

705001166

Unavailable

28

CUP - Call your local BRP dealership

705200533

Unavailable

29

Hex. Flange Screw M6 X 25

207662544

$0.64

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

Bushing

293900028

$12.71

32

Carriage Bolt M8 X 60

207786044

$14.21

33

Hex. Flange Elastic Nut M8

233281414

$1.47

34

Bushing

293900051

Unavailable

35

Flat Washer

224081301

$0.88

36

Neoprene Seal (1PAC=3M)

219704364

$27.49

37

Motor Skid

705001133

Unavailable
