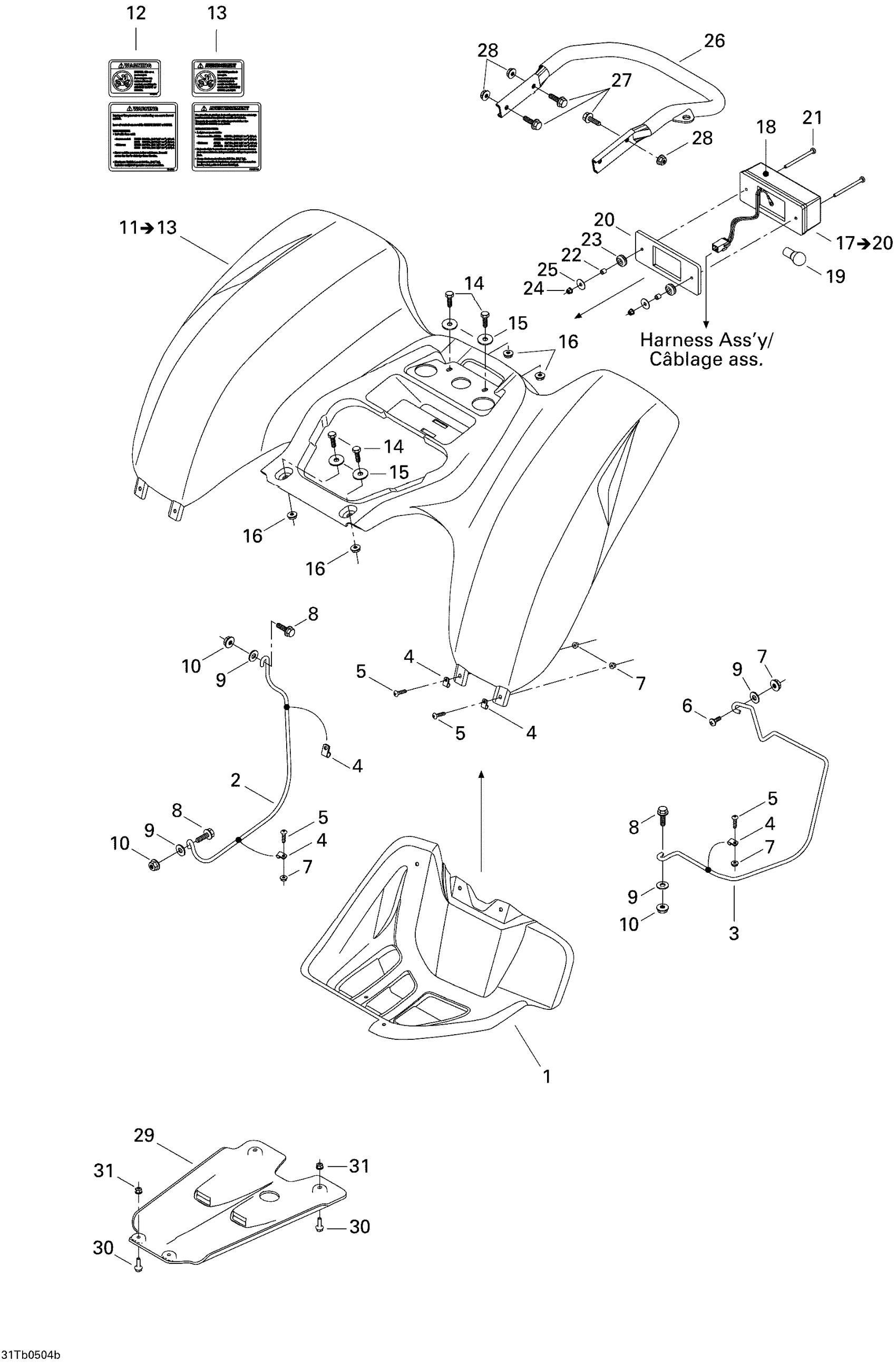

Can-Am DS 650/DS 650 X, 2005 09- Body And Accessories 2 Diagram

#

Description
Price

1

RH FOOT PROTECTOR - Call your local BRP dealership

705000301

Unavailable

1

LH FOOT PROTECTOR - Call your local BRP dealership

705000302

Unavailable

2

RH FOOT PROTECTOR SUPPORT, INTERIOR - Call your local BRP dealership

705000639

Unavailable

2

LH FOOT PROTECTOR SUPPORT, INTERIOR - Call your local BRP dealership

705000642

Unavailable

3

RH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000117

Unavailable

3

LH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000120

Unavailable

4

Gear Clamp

293650150

Unavailable

5

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

6

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

7

Elastic Stop Nut M6

232561414

$0.55

8

Hex. Flange Screw M6 X 25

207662544

$0.64

9

Flat Washer

224061201

$1.37

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Rear Fender Kit | DS 650 X / Includes 11 to 13

703500125

Unavailable

11

Rear Fender Kit, red | DS 650 / Includes 11 to 13

703500471

Unavailable

12

Warning Decal, Tire And Passenger

704900040

Unavailable

13

Warning Decal, Tire And Passenger

704900102

Unavailable

14

Hex. Screw M6 X 18

207161844

$0.76

15

Flat Washer

224061201

$1.37

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$95.99

18

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

19

Bulb

520000758

$9.10

20

GASKET - Call your local BRP dealership

710000129

Unavailable

21

PHILLIPS SCREW M5 X 70 - Call your local BRP dealership

208657041

Unavailable

22

Bushing

293900112

$10.06

23

Grommet

414036300

$2.79

24

Hex. Flange Elastic Nut M5

233251414

$1.04

25

Flat Washer

224060201

$1.26

26

Rear Bumper

705000143

Unavailable

27

Hex. Flange Screw M8 X 20

207682044

$1.15

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

Skid Plate | DS 650

705000304

Unavailable

30

Hex. Flange Screw M6 X 20

207662044

$2.00

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
