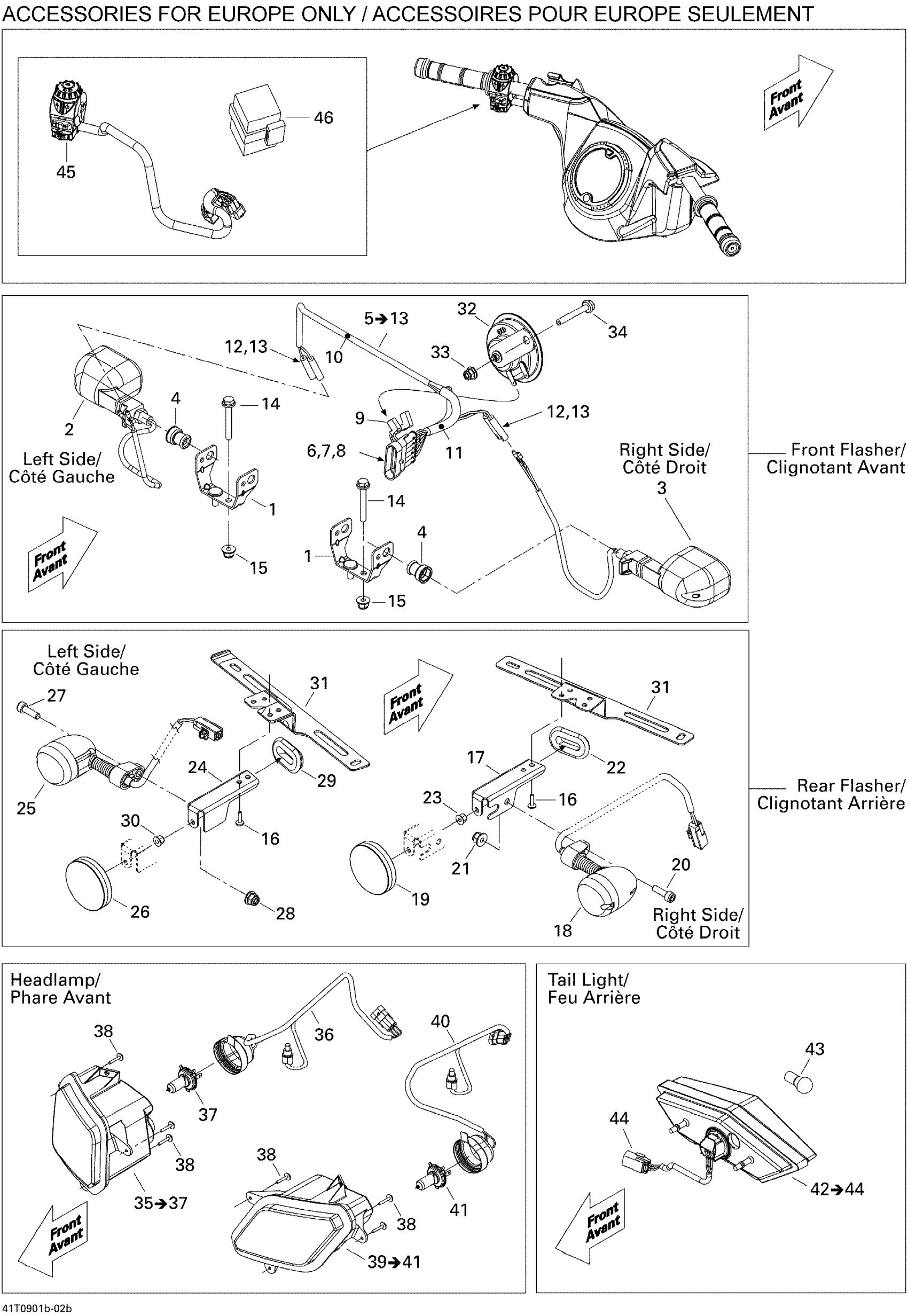

Can-Am Outlander Max 400 EFI, 2009 10- Electrical Accessories Europe Diagram

#

Description
Price

1

BRACKET - Call your local BRP dealership

710000978

Unavailable

2

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

3

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

4

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

5

Front Fender Harness | Includes 5 to 13

710001562

Unavailable

6

Male Terminal | Europe Models

409012900

$3.28

7

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

8

Wire Seal

278001013

$3.28

9

Female Terminal

409010300

$4.39

10

Tubing 6 Mm 3000Mm Long

219704425

$13.75

11

Was 409901700 Tubing (9 mm)

219704399

$84.99

12

Insulated Sheath

278001007

$3.58

13

Female Terminal

710000421

$6.11

14

Hex. Flange Screw M6 X 45

207664544

$1.46

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Pop Rivet 3/16"

390402400

$0.35

17

BRACKET - Call your local BRP dealership

710001329

Unavailable

18

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

19

Red Reflector

705011221

$14.49

20

Socket Head Screw M6 X 20

205062044

$1.26

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Oblong Grommet

705003668

$5.79

23

Hex. Flange Elastic Nut M5

233251414

$1.04

24

BRACKET - Call your local BRP dealership

710001330

Unavailable

25

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

26

Red Reflector

705011221

$14.49

27

Socket Head Screw M6 X 20

205062044

$1.26

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Oblong Grommet

705003668

$5.79

30

Hex. Flange Elastic Nut M5

233251414

$1.04

31

BRACKET - Call your local BRP dealership

710001241

Unavailable

32

Horn

710004791

$38.99

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Hex. Flange Screw M6 X 45

207664544

$1.46

35

RH Headlamp Ass'y | Includes 11 to 13

710000861

$134.99

36

Headlamp Harness

710000923

$48.99

37

Bulb, 12V 35/35W

710000871

$34.99

38

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

39

LH Headlamp Ass'y | Includes 14 to 16

710000862

$134.99

40

Headlamp Harness

710000923

$48.99

41

Bulb, 12V 35/35W

710000871

$34.99

42

Tail Light Housing Ass'y | Includes 17 to 19

710001204

$56.99

43

Bulb

520000758

$9.10

44

Male Housing, 3 Circuits

515175494

$16.18

45

Multi function Handle | Europe

710001428

Unavailable

46

FLASHER UNIT - Call your local BRP dealership

710001447

Unavailable
