Description

Price

1

Throttle Body Ass'y | Includes 8 to 16

420685326

$709.99

2

Position Sensor

420866120

$98.99

3

Flat Washer 4 mm, Stainless

234042600

$1.15

4

Phillips Screw M4 X 16

208641660

$0.90

5

Idle Air Control Valve

420665941

$179.99

6

O-Ring

420631780

$4.44

7

Snap Ring

420845710

$4.12

8

Binding Head Screw M5 X 16

420440911

$14.28

9

Cover Kit

420281540

$20.99

10

Clamp

420251480

$14.28

11

Intake Adaptor

420267480

$15.89

12

ELBOW INTAKE ADAPTOR - Call your local BRP dealership

420267525

Unavailable

13

Gasket

420630642

$5.39

14

ALLEN SCREW M8 X 40 - Call your local BRP dealership

420440482

Unavailable

15

Injection Valve

420874402

$185.49

16

O-Ring

420631220

$14.28

17

O-Ring

420631296

$0.76

18

Fuel Rail

420874901

$24.49

19

Torx Flange Screw M6 X 16

420641048

$2.96

20

Pressure And Temperature Sensor

707000995

$88.99

21

Torx Flange Screw M6 X 16

420641048

$2.96

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable

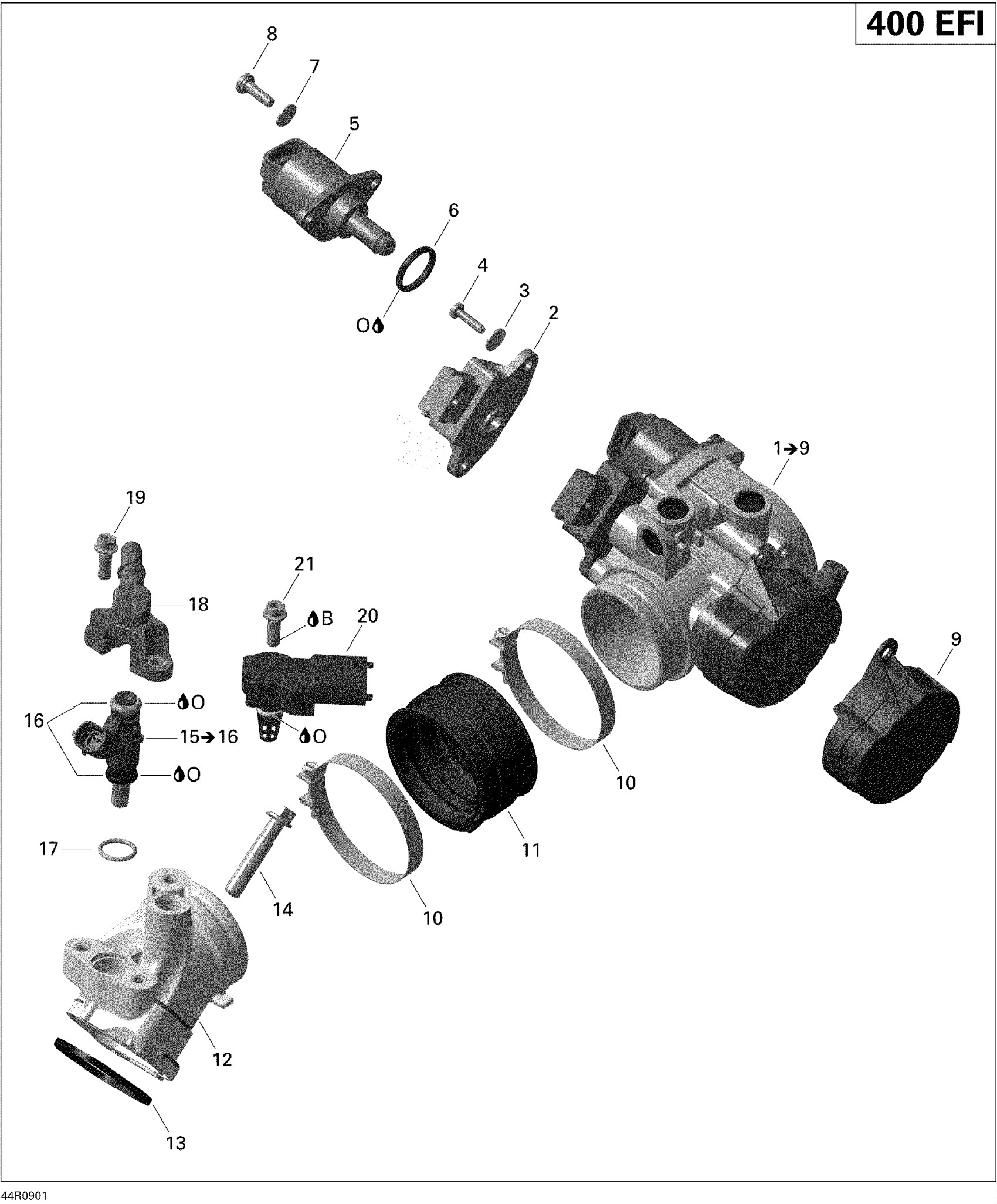

Can-Am Outlander Max 400 EFI, 2009 02- Intake Manifold And Throttle Body Diagram

Throttle Body Ass'y | Includes 8 to 16

Position Sensor

Flat Washer 4 mm, Stainless

Phillips Screw M4 X 16

Idle Air Control Valve

O-Ring

Snap Ring

Binding Head Screw M5 X 16

Cover Kit

Clamp

Intake Adaptor

ELBOW INTAKE ADAPTOR - Call your local BRP dealership

Gasket

ALLEN SCREW M8 X 40 - Call your local BRP dealership

Injection Valve

O-Ring

O-Ring

Fuel Rail

Torx Flange Screw M6 X 16

Pressure And Temperature Sensor

Torx Flange Screw M6 X 16

Loctite 243, 10 ml

Not Available As Spare Part - Friction Washer
