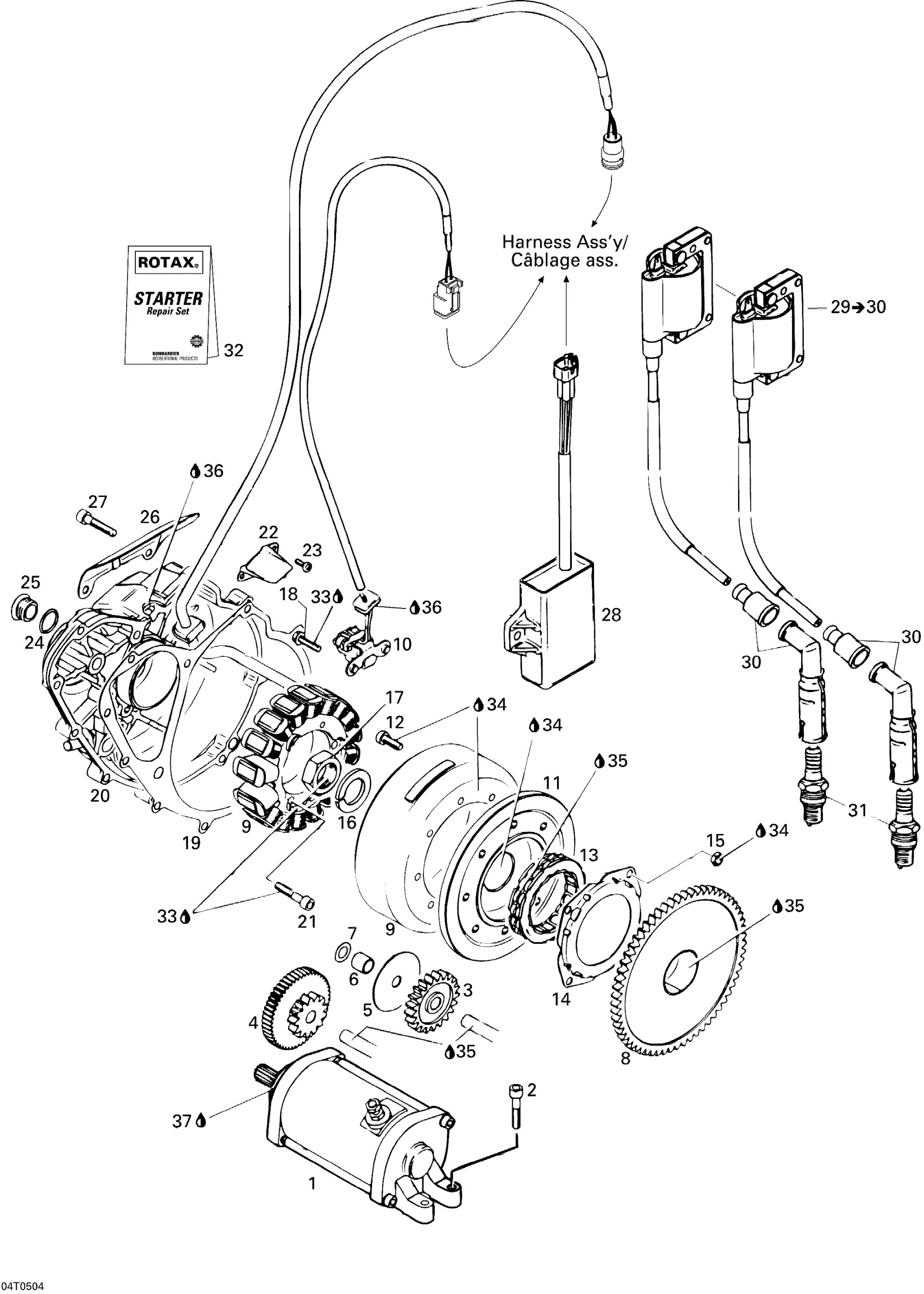

Can-Am DS 650/DS 650 X, 2005 03- Ignition And Magneto Diagram

#

Description
Price

1

ELECTRIC STARTER - Call your local BRP dealership

420294351

Unavailable

1

STARTER BRUSH KIT - Call your local BRP dealership

420294354

Unavailable

1

O-Ring For Starter (Not Illustrated)

293300103

Unavailable

2

Socket Head Screw M6 X 30

205063044

$1.69

3

INTERMEDIATE GEAR, 24 TEETH - Call your local BRP dealership

420234655

Unavailable

4

Intermediate Gear, 11/52 Teeth

420234756

$179.99

5

Thrust Washer

420627080

Unavailable

6

SPACER - Call your local BRP dealership

420247785

Unavailable

7

Thrust Washer

420827590

$4.01

8

STARTING GEAR, 61 TEETH - Call your local BRP dealership

420634319

Unavailable

9

Magneto Ass'y 12V/280W

420295172

Unavailable

10

Pickup Ass'y

420265153

Unavailable

11

FLYWHEEL ROTOR HUB - Call your local BRP dealership

420264577

Unavailable

12

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

420640980

$5.99

13

Sprag Clutch

420958857

$339.99

14

SPRAG CLUTCH HOUSING - Call your local BRP dealership

420259192

Unavailable

15

NUT BM6 - Call your local BRP dealership

420242031

Unavailable

16

Lock Washer, 22 mm

420945759

$1.90

17

Hex. Nut, M22 X 1.5

420842239

$17.53

18

Taptite Screw M5 X 16

420941928

Unavailable

19

GASKET - Call your local BRP dealership

420250920

Unavailable

20

IGNITION COVER - Call your local BRP dealership

420211291

Unavailable

21

Socket Head Screw M6 X 35

420241811

$1.79

22

Interior Cable Support Ass'y

420251889

$14.30

23

Phillips Screw M4 X 8

420240196

$2.32

24

O-Ring

420250890

$3.06

25

Drain Plug

420241801

$7.41

26

CABLE EXTERNAL COVER - Call your local BRP dealership

420251990

Unavailable

27

Socket Head Screw M6 X 30

205063044

$1.69

28

AMPLIFIER BOX - Call your local BRP dealership

420664170

Unavailable

29

Ignition Coil

420265357

Unavailable

30

SPARK PLUG CAP - Call your local BRP dealership

420665010

$24.99

31

Spark Plug, NGK/DR8EA

707000008

$4.23

32

STARTER BRUSH KIT - Call your local BRP dealership

420294354

Unavailable

33

Loctite 243, 10 ml

293800060

$21.49

34

Sealant Loctite 648

219703000

$45.99

35

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

36

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

37

Petamo Grease, GHY133N, 400 g

420899271

$67.99
