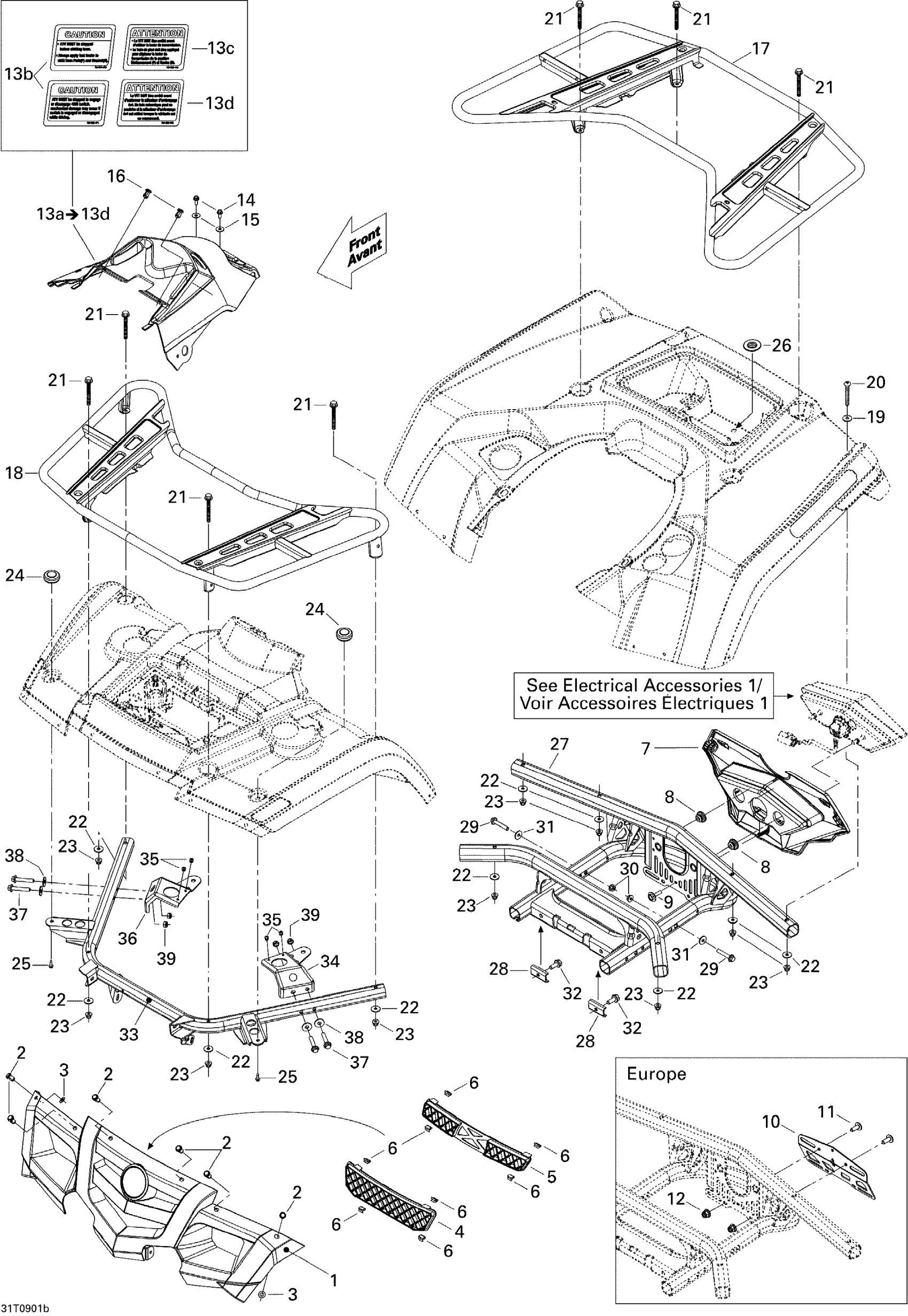

Can-Am Outlander 400 EFI, 2009 09- Body And Accessories 2 Diagram

#

Description
Price

1

FRONT FASCIA, RED - Call your local BRP dealership | Viper Red

705001313

Unavailable

1

FRONT FASCIA, YELLOW - Call your local BRP dealership | Yellow

705001991

Unavailable

1

FRONT FASCIA, BLACK - Call your local BRP dealership | Black

705003198

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.47

3

Washer

506151252

$3.17

4

LOWER GRILL - Call your local BRP dealership

705001679

Unavailable

5

UPPER GRILL - Call your local BRP dealership

705001901

Unavailable

6

Clip | Europe Models

517306751

$2.09

7

Rear Facia

705003840

$45.99

8

Stopper Rubber

705014429

$5.95

9

Screw M4 X 16

250000725

$3.49

10

SUPPORT - Call your local BRP dealership | Europe

705002499

Unavailable

11

Torx Screw M6 X 16

250000755

$0.87

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13a

BLACK DASH-BOARD KIT - Call your local BRP dealership | Includes 13a to 13d

715000789

Unavailable

13b

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

13c

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

13d

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

14

Hex. Flange Screw M6 X 16

210261650

$1.67

15

Flat Washer

250200082

$0.42

16

Tuflok Plastic Rivet

293150230

$1.47

17

Rear Luggage Rack

705002617

$275.49

18

Front Luggage Rack

705002616

$275.49

19

Flat Washer

250200040

$1.90

20

Torx Truss Screw M6 X 50

250000749

$3.17

21

Hex. Flange Screw M6 X 50

207665044

$4.12

22

Flat Washer

224061201

$1.37

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

24

RUBBER CAP - Call your local BRP dealership

705002042

Unavailable

25

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

26

CAP - Call your local BRP dealership

414859400

Unavailable

27

Rear Support

705003656

$275.49

28

U Reinforcement

705003647

$8.19

29

Hex. Flange Screw M8 X 50

207685044

$1.69

30

Hex. Flange Elastic Nut M8

233281414

$1.47

31

Flat Washer 8 mm

234082410

$1.47

32

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

33

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

34

LH ANCHOR PLATE - Call your local BRP dealership

705002995

Unavailable

35

Pop Rivet 3/16"

390402300

$0.75

36

RH Anchor Plate

705002997

$18.49

37

Hex. Flange Screw M8 X 45

207684544

$3.80

38

Flat Washer 8 mm

234082410

$1.47

39

Hex. Elastic Stop Nut M8

232581414

$0.56
