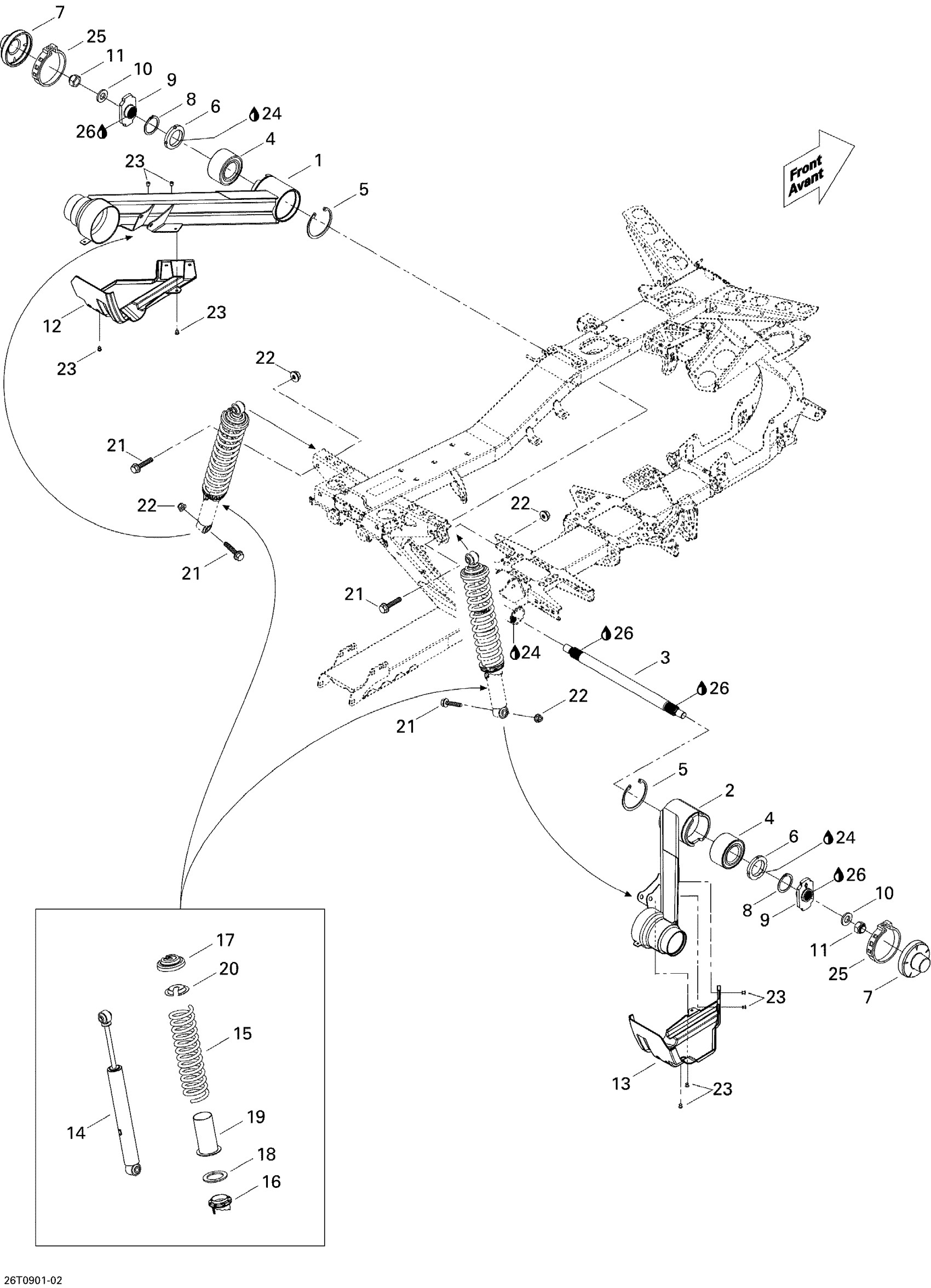

Can-Am Outlander 400 EFI, 2009 08- Rear Suspension Diagram

#

Description
Price

1

LH SWING ARM - Call your local BRP dealership

706001185

Unavailable

2

Rh Swing Arm

706003425

$296.99

3

Sway Bar

706001077

$116.49

4

Ball Bearing

293350037

$139.99

5

Circlip

293370041

$9.26

6

Nut

706000221

$20.99

7

Cover

706000749

$16.49

8

Circlip 45 mm

293370027

$4.14

9

Lever

706000548

$38.99

10

Washer

250200045

$7.73

11

Elastic Stop Nut M18

232591414

$4.39

12

LH PROTECTOR - Call your local BRP dealership

706000333

Unavailable

13

RH PROTECTOR - Call your local BRP dealership

706000334

Unavailable

14

Rear Shock

706000391

$179.99

15

REAR SPRING, BLACK - Call your local BRP dealership | Camo Color Models Only

706000289

Unavailable

15

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership

706000649

Unavailable

16

Adjuster Ring

706002356

$18.49

17

Spring Stopper

706200881

$12.99

18

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

19

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

20

Cap

706200785

$4.69

21

Hex. Flange Screw M10 X 55

207605544

$3.38

22

Hex. Flange Elastic Nut M10

233201414

$1.58

23

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

24

Loctite 243, 10 ml

293800060

$21.49

24

Loctite 271, 10 ml

293800005

$26.99

25

Oetiker Clamp

293650162

$9.79

26

Loctite 271, 10 ml

293800005

$26.99
