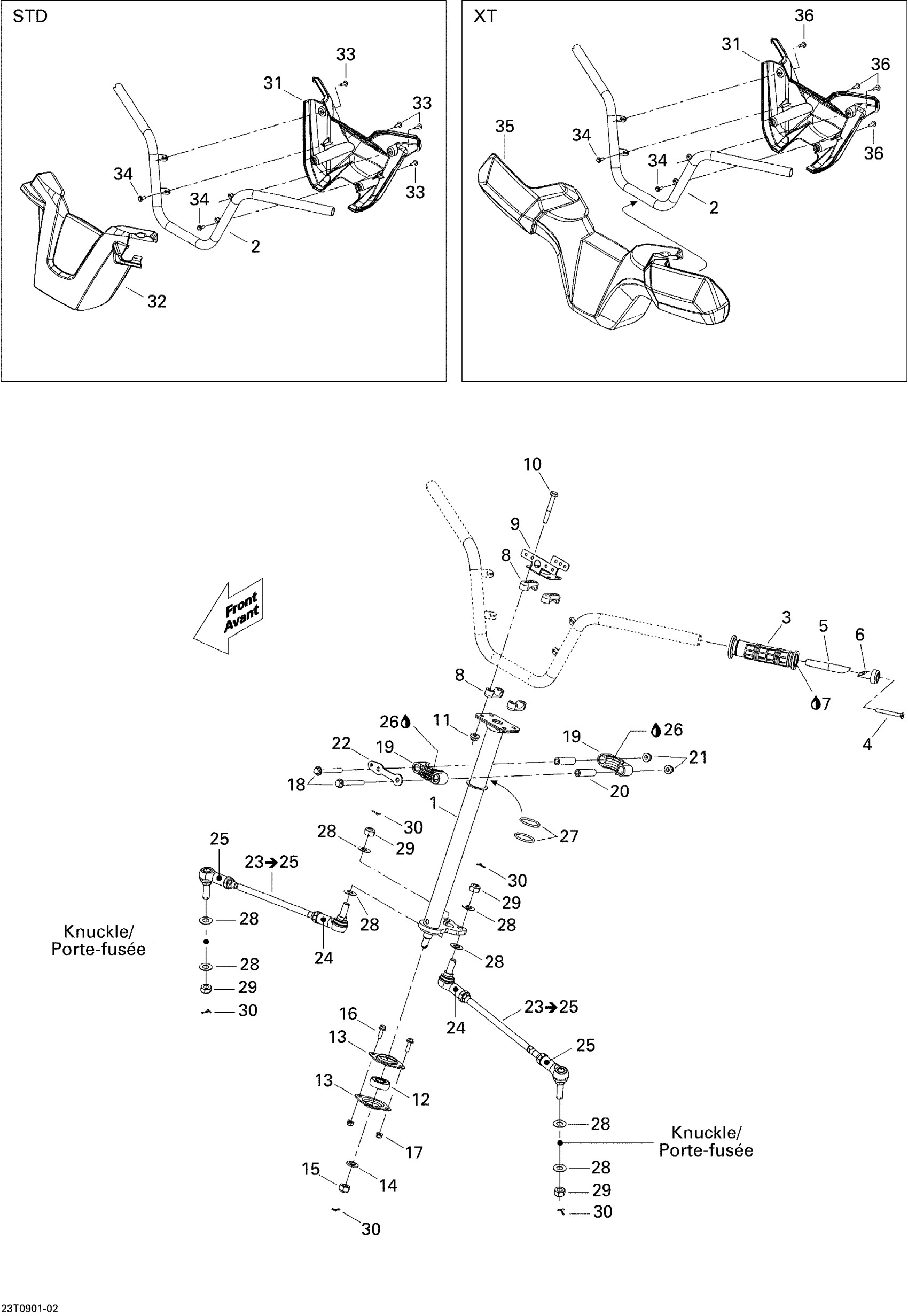

Can-Am Outlander 400 EFI, 2009 07- Steering Diagram

#

Description
Price

1

Main Tube

709401056

$129.99

2

Steering | STD

709401237

$63.49

3

Handle Grip

709400493

$14.83

4

SOCKET HEAD SCREW, M8 X 70 - Call your local BRP dealership

205387034

Unavailable

5

STEERING THREADED BRACKET - Call your local BRP dealership

709400609

Unavailable

6

END PIECE - Call your local BRP dealership

709400591

Unavailable

7

Loctite 406, 7 Oz

293800100

$36.99

8

Steering Support

709400919

$22.49

9

Connector Bracket

709400586

Unavailable

10

Hex. Screw M8 X 60

207086046

$2.85

11

Hex. Elastic Flange Nut M8

233281416

$1.48

12

Ball Bearing

709400439

$19.49

13

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

14

Flat Washer 12 mm

234021410

$0.72

15

Hex. Flange Elastic Nut M12

250000047

$1.90

16

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Hex. Flange Screw M8 X 70

207687044

$7.41

19

Half Bushing

709400471

$14.30

20

BUSHING - Call your local BRP dealership

709400072

Unavailable

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

23

Tie Rod Ass'y | Includes 21 to 23

709400485

Unavailable

24

LH Ball Joint

709402303

$36.99

25

Ball Joint, RH Threads

709400487

$52.99

26

Synthetic Grease, 400 G

293550010

Unavailable

27

O-Ring

293300068

$7.65

28

Hardened Washer

706200281

$2.85

29

Nut M12

250100099

$2.09

30

Cotter Pin

211400013

$0.37

31

BLACK REAR STEERING COVER - Call your local BRP dealership

709400313

$24.49

32

BLACK FRONT STEERING COVER - Call your local BRP dealership | STD

709400386

Unavailable

33

Torx Screw K50 X 16

250000720

$1.69

34

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

35

HANDLE GUARD, XT - Call your local BRP dealership | Includes 38 to 39 / XT

703100217

Unavailable

36

Torx Screw K50 X 16

250000720

$1.69
