Description

Price

1

Black Front Fender Ass'Y

V83005DGF000

$204.99

2

Rear Fender, Black

V83102DGF01H

Unavailable

3

Cargo Cover

V82103DGF00HLL

$56.99

4

RH Front Side Panel

V80104DGF010BK

Unavailable

5

LH Front Side Panel

V80105DGF010BK

Unavailable

6

RH Rear Side Panel

V80116DGF000BKLL

$17.49

7

LH Rear Side Panel

V80117DGF000BKLL

$19.99

8

Heat Insulation Sheet

V18450DGF000LL

$10.99

9

Round Head Screw

V930000601201LL

$2.19

10

Round Head Screw

V930000601501LL

$2.19

11

Spring Nut

V9034506000KLL

$8.32

12

Waterproof Strip

V81146DGF020

$4.14

13

SKID PLATE, YELLOW - Call your local BRP dealership

V82113DGF01H

Unavailable

14

Lock Nut

V9035006000

Unavailable

15

Cargo Cover Hinge

V50262DGF030LL

$18.49

16

Tapping Screw

V9309304012LL

$2.19

17

Hex. Flange Screw M6 X 12

207661244

$2.11

18

Round Haed Bolt M6 X 35

V9300006035

$3.29

19

Round Head Bolt M6 X 20

V9300006020

$2.19

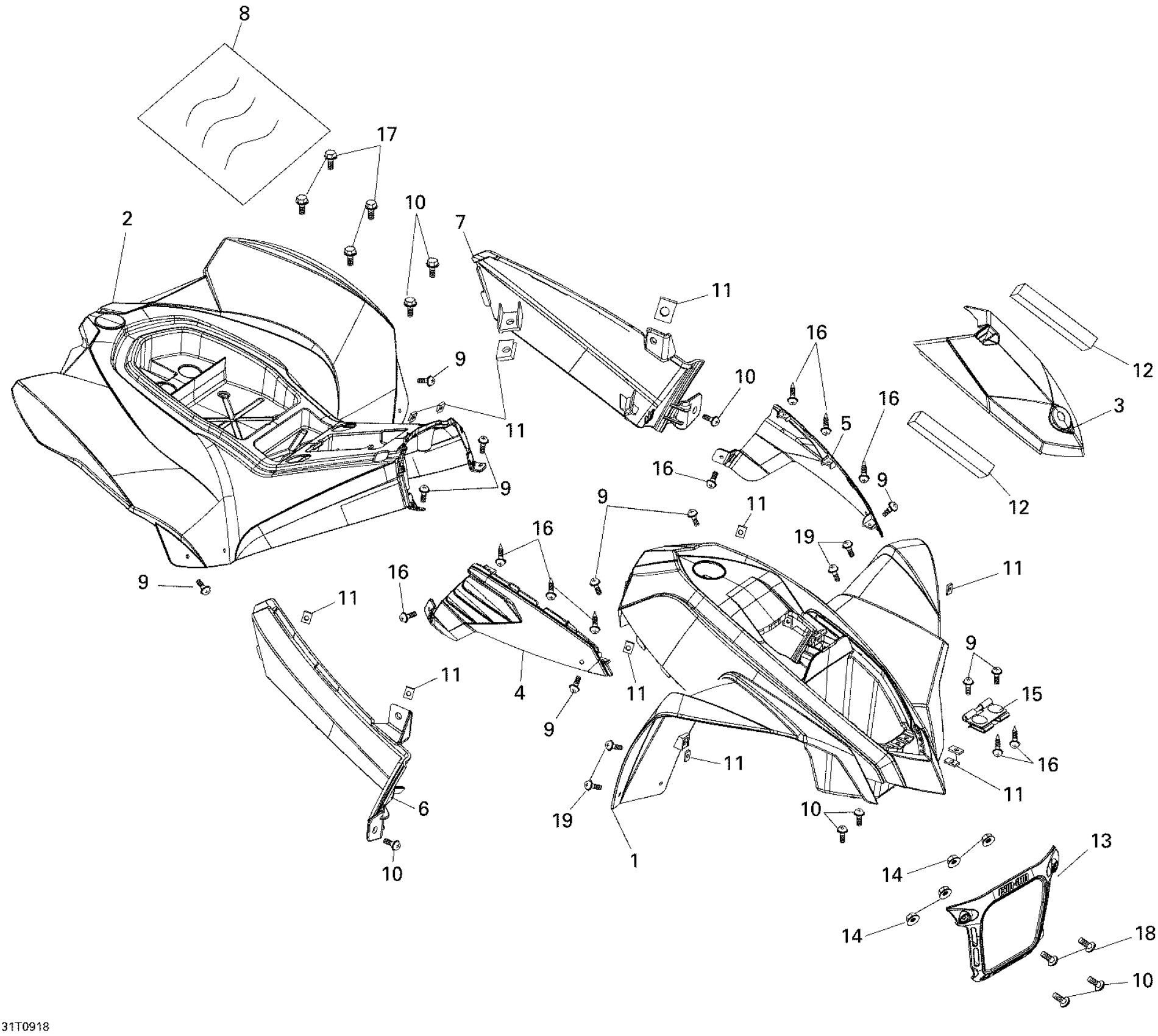

Can-Am DS 90 X, 2009 09- Body And Accessories INT Diagram

Black Front Fender Ass'Y

Rear Fender, Black

Cargo Cover

RH Front Side Panel

LH Front Side Panel

RH Rear Side Panel

LH Rear Side Panel

Heat Insulation Sheet

Round Head Screw

Round Head Screw

Spring Nut

Waterproof Strip

SKID PLATE, YELLOW - Call your local BRP dealership

Lock Nut

Cargo Cover Hinge

Tapping Screw

Hex. Flange Screw M6 X 12

Round Haed Bolt M6 X 35

Round Head Bolt M6 X 20
