Description

Price

1

Steering Column, Black

V53200DGF08H

$89.99

2

Sleeve

V53217MAA020

$12.12

3

Steering Shaft Holder

V53434MAA020BK

$16.27

4

Oil Seal

V92101MAA000

$13.49

5

C-Circlip

V9452032000

$2.61

6

Radial Ball Bearing, 6002ZZ

A961006002ZZ

$23.49

7

Collar

V22112MAA010

$9.69

8

Oil Seal

V92102MAA000

$13.49

9

Tie-Rod Ass'y

V53180DGF03H

$179.99

10

LH Knuckle

V51215DGF05HLL

$148.49

11

RH Knuckle

V51210DGF04HLL

$147.99

12

Hex. Elastic Stop Nut M8

232581414

$0.56

13

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

14

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232571414

Unavailable

15

Lock Nut

V9035210000LL

$11.58

16

Hex. Flange Screw M8 X 35

207683544

$1.69

17

Cotter Pin

V9420117020LL

$6.67

18

Cotter Pin

V9420130032LL

$6.67

19

LH Tie Rod Plate

V51211DGF06H

$14.49

20

RH TIE ROD PLATE - Call your local BRP dealership

V51212DGF01H

Unavailable

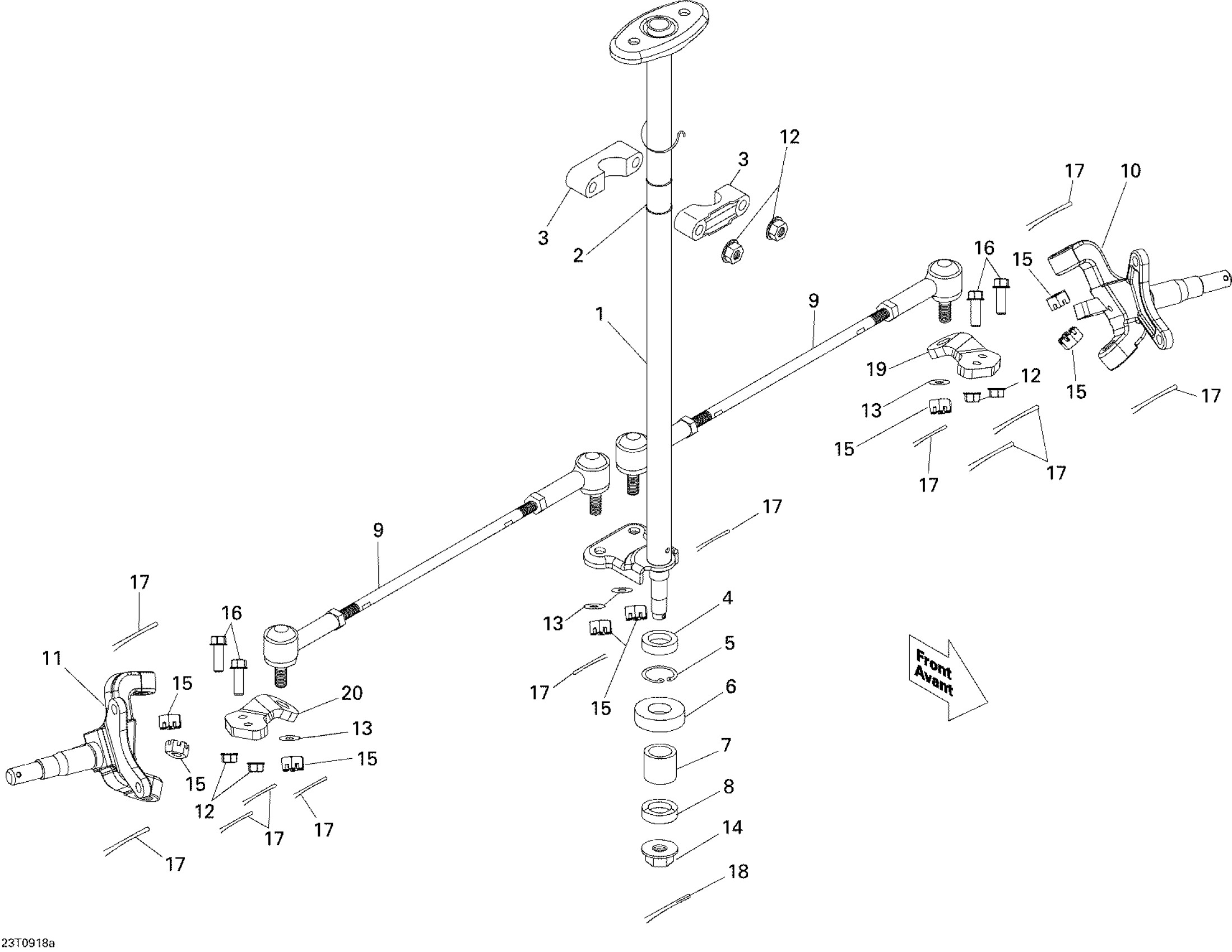

Can-Am DS 90 X, 2009 07- Steering Diagram

Steering Column, Black

Sleeve

Steering Shaft Holder

Oil Seal

C-Circlip

Radial Ball Bearing, 6002ZZ

Collar

Oil Seal

Tie-Rod Ass'y

LH Knuckle

RH Knuckle

Hex. Elastic Stop Nut M8

Helicoidal Lock Washer M10 | XT Models

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

Lock Nut

Hex. Flange Screw M8 X 35

Cotter Pin

Cotter Pin

LH Tie Rod Plate

RH TIE ROD PLATE - Call your local BRP dealership
