Description

Price

1

Front Brake Disk

V45111CEK000LL

$121.49

2

Front Brake Disc Bolt

V9010508024

$9.95

3

LH Front Caliper

V45222DGF01HLL

$195.99

4

RH Front Caliper

V45221DGF01HLL

$195.99

5

Hex. Flange Screw M8 X 20

207682044

$1.15

6

Washer

V46964MAC000

$7.73

7

Bolt

V46963MAC020LL

$9.10

8

3 Way Brake

V46966DGF11HLL

$174.49

9

Hex. Flange Screw M6 X 25

207662544

$0.64

10

Brake Pad Kit

V45151DGF00HBKLL

$37.99

11

Boyau*Brake Hose

V46964DGF04HLL

$110.99

12

Rear Caliper

V45200MAC000LL

$248.99

13

Rear Caliper Bracket

V50295MAC020

$31.99

14

Rear Brake Disc

V45121MAC000

$132.49

15

Rear Brake Disc Bracket

V45122MAC000

$35.99

16

Hexagonal Socket Bolt

A9100006012K

$0.72

17

Brake Pad Kit

V45151DGF00HBKLL

$37.99

18

Hex. Flange Screw M8 X 25

207682534

$2.11

19

Clip

V50126DGF00H

$12.18

20

Hex. Flange Screw M6 X 12

207661244

$2.11

21

Hex. Screw

V9200012050

$7.90

22

Spring Washer

V9411112000

$2.61

23

Washer

V941010816015LL

$4.14

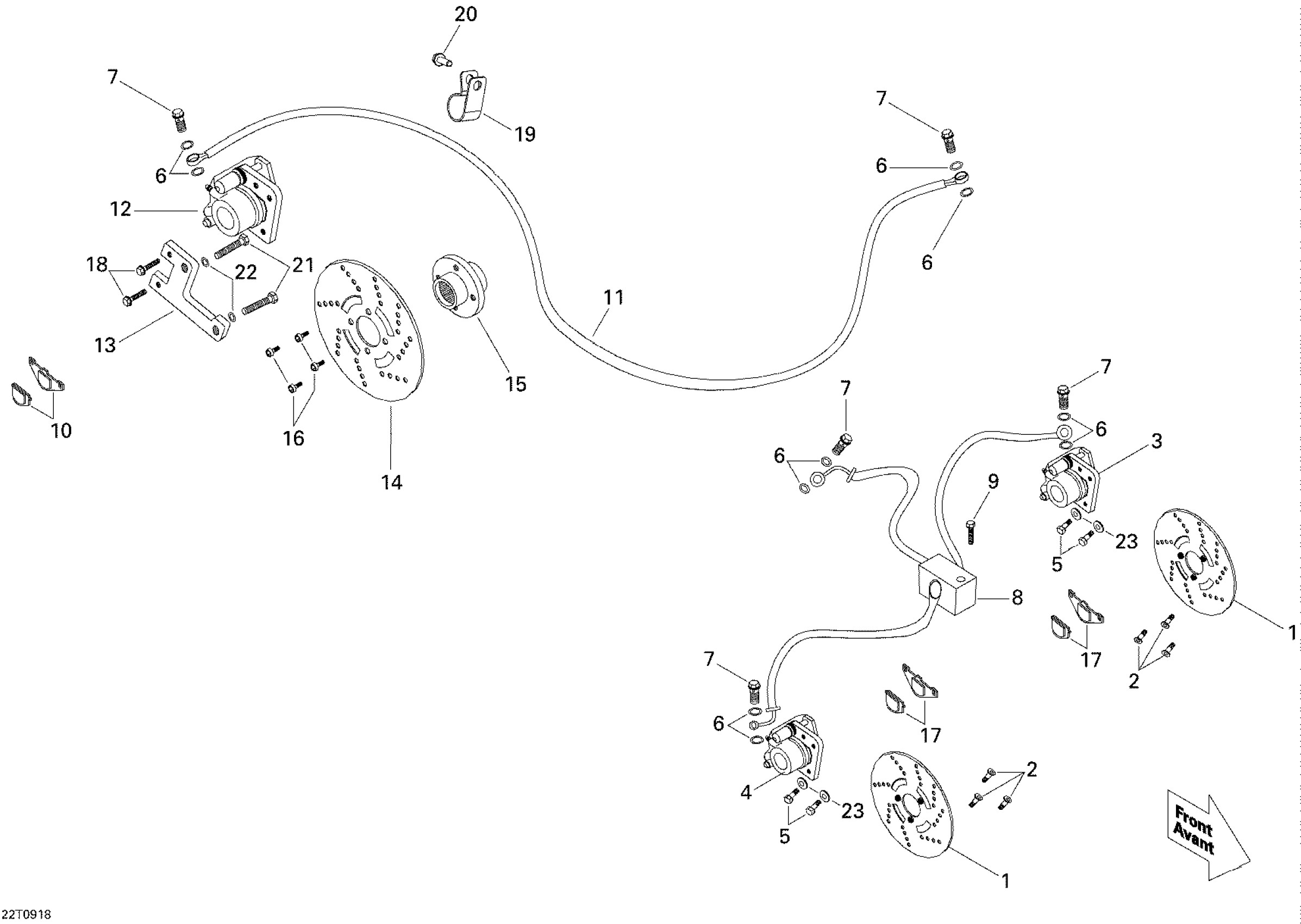

Can-Am DS 90 X, 2009 06- Brakes Diagram

Front Brake Disk

Front Brake Disc Bolt

LH Front Caliper

RH Front Caliper

Hex. Flange Screw M8 X 20

Washer

Bolt

3 Way Brake

Hex. Flange Screw M6 X 25

Brake Pad Kit

Boyau*Brake Hose

Rear Caliper

Rear Caliper Bracket

Rear Brake Disc

Rear Brake Disc Bracket

Hexagonal Socket Bolt

Brake Pad Kit

Hex. Flange Screw M8 X 25

Clip

Hex. Flange Screw M6 X 12

Hex. Screw

Spring Washer

Washer
