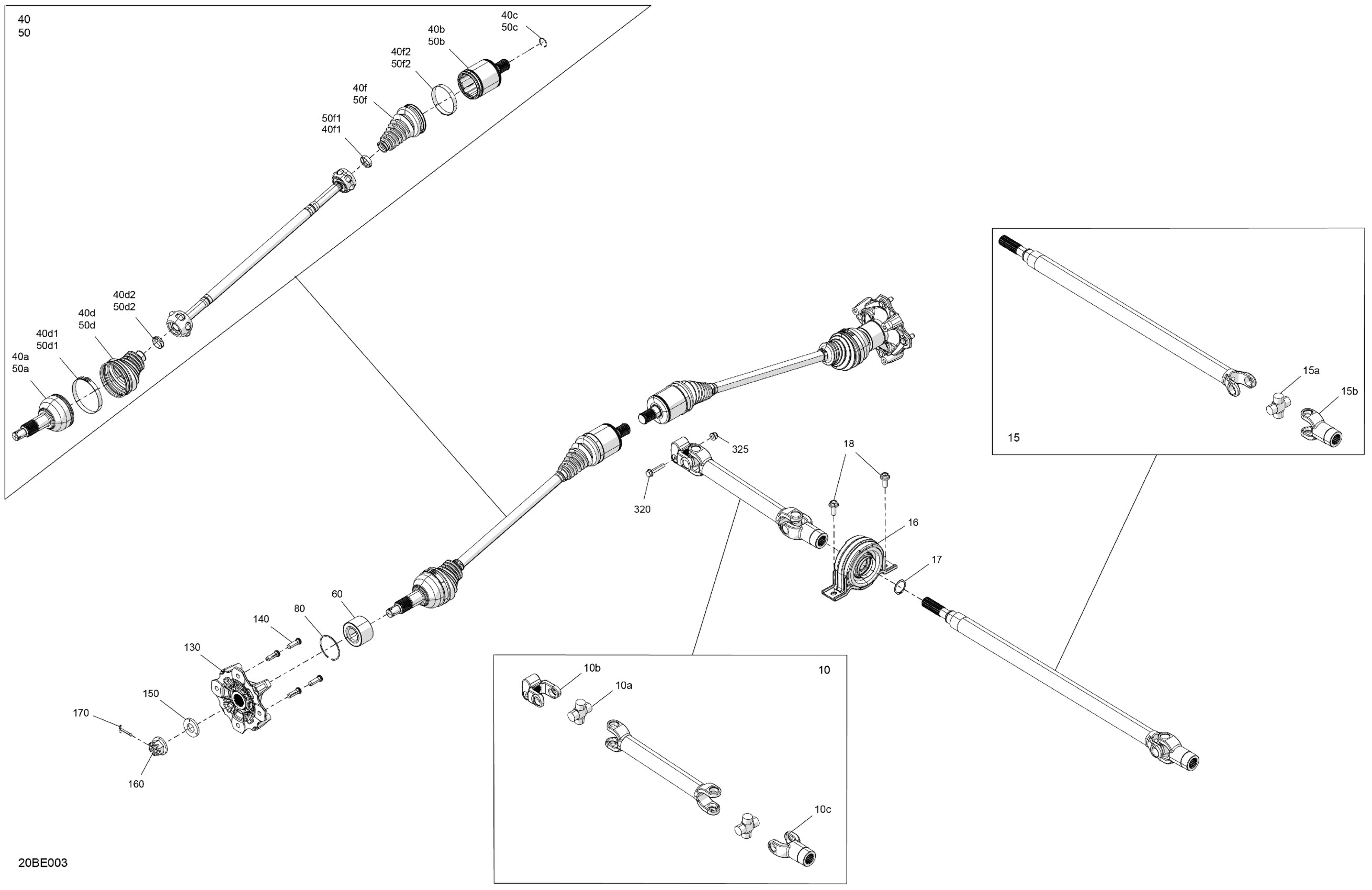

Can-Am North America - Commander - 1000R EFI - XT - 6GSC - Timeless Black Metallic - 64" Width CALI, 2025 04- Drive - Front - Common Parts Diagram

Drive Axle Ass'y | Includes 10 to 10c

705403289

$254.49

U-Joint Cross Kit

715900829

$78.49

Fixed Yoke

715900400

$59.49

Yoke

715900401

$35.99

Drive Axle Ass'y | Includes 15 to 15b

705403290

$254.49

U-Joint Cross Kit

715900829

$78.49

Yoke

715900401

$35.99

Ball Bearing Ass'y

705403522

$47.49

Snap Ring

293370098

$3.17

Hex. Flange Screw M10 X 20

207502046

$2.11

RH Front Half Shaft | Includes 40 to 40f2

705402717

$243.99

JOINT_CV EXT - Call your local BRP dealership

715900440

$244.99

RH Plunging Joint

715900441

$275.49

Circlip Joint | Not shown

705401349

$6.50

Boot Kit, Wheel Side

705401345

$42.49

Oetiker Clamp

715900282

$5.29

Oetiker Clamp, Small

715900283

$5.29

Boot Kit, Différential Side

705401355

$42.49

Oetiker Clamp, Small

715900261

$5.29

Oetiker Clamp, Large

715900262

$10.33

LH Front Half Shaft | Includes 50 to 50f2

705402718

$243.99

JOINT_CV EXT - Call your local BRP dealership

715900440

$244.99

LH Plunging Joint

715900442

$275.49

Circlip Joint | Not shown

705401349

$6.50

Boot Kit, Wheel Side

705401345

$42.49

Oetiker Clamp

715900282

$5.29

Oetiker Clamp, Small

715900283

$5.29

Boot Kit, Différential Side

705401355

$42.49

Oetiker Clamp, Small

715900261

$5.29

Oetiker Clamp, Large

715900262

$10.33

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

Wheel Hub

705502338

$116.49

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

Conical Spring Washer M20

250200170

$14.74

Castle Nut M20

250100193

$8.05

Cotter Pin

250400084

$2.29

Hex. Flange Screw M8 X 42

250001050

$1.16

Hex. Elastic Flange Nut M8

233281416

$1.48
