Description

Price

1

Not Available As Spare Parts

NASP/NDPR

Unavailable

1-1

Cylinder Head DS

V12201CJF020LL

$223.49

1-2

Cylinder Head Gasket

V12251CJF020

$25.99

1-3

Valve Stem Seal

V12209GYK000

$17.04

1-4

Valve Spring Seat

V14775GYK000

$10.49

1-5

Spring Valve Outer

V14751GYK000

$13.24

1-6

Spring Valve Inner

V14761GYK000

$13.22

1-7

Retainer Valve Spring

V14771GYK000

$18.49

1-8

Cotter

V14781GYK000

$10.49

1-9

Intake Valve

V14711CJF010

$46.49

1-10

Exaust Valve

V14721CJF000

$46.49

1-11

LH Cover Cylinder Head

V12341CJF030LL

$56.49

1-12

Cylinder Head Cover Gasket

V12395CJF010

$16.86

1-13

RH Cover Cylinder Head

V12331CJF010LL

$56.49

1-14

Cylinder Head Cover Gasket Rh.

V12394CJF010

$7.90

1-15

Hexagonal Flange Bolt

V9600006110

$6.95

1-16

Flat Washer

V941050614016

$2.68

1-17

Hex. Flange Screw M6 X 20

207662044

$2.00

1-18

Valve Cover

V12301CJF000

$69.99

1-19

Gasket

V12391CJF020

$18.54

1-20

Cap Nut

V9030406000010LL

$10.48

1-21

Flat Washer

V941010612016

$12.18

1-22

Adjusting Cap | Incl 1-23 O-Ring

V12361CJF030LL

$28.49

1-23

Adjusting Cap | Incl 1-23 O-Ring

V12361CJF030LL

$28.49

1-24

Flat Washer

V941050614016

$2.68

1-25

Breather

V11224DGF010

$19.99

2

Camshaft

V14400CJF010

$142.99

3

Rocker Arm

V14431CJF030

$55.99

4

Rocker Arm Shaft

V14452CJF010

$19.49

5

Valve Gap Adjusting Nut

V90206GYK000

$3.80

6

Rocker Arm

V14431CJF030

$55.99

7

Timer Sprocket

V14321CJF030

$36.99

8

Hex. Screw M5 X 12

207151244

$0.90

9

Stud Bolt

V9270006033LL

$2.19

10

Spark Plug

219703175

$4.23

11

Intake Manifold

V17111CJF07A

$62.49

12

Gasket

V16229GYK010

$4.55

13

Hex. Flange Screw M6 X 20

207662044

$2.00

14

Hex. Flange Screw M6 X 25

207662544

$0.64

15

DOWEL PIN - Call your local BRP dealership

A9430108120

Unavailable

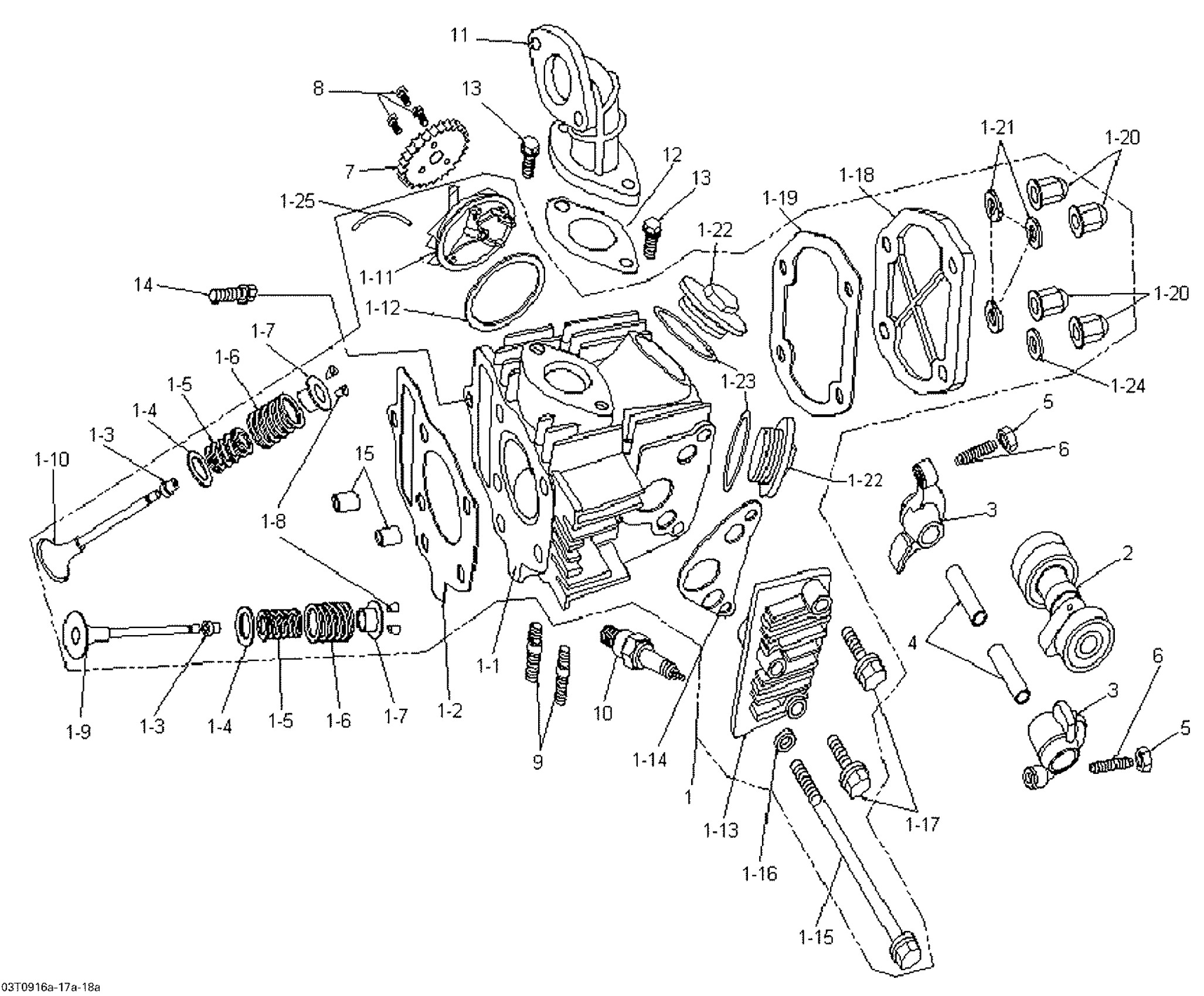

Can-Am DS 90, 2009 01- Cylinder Head And Intake Manifold Diagram

Not Available As Spare Parts

Cylinder Head DS

Cylinder Head Gasket

Valve Stem Seal

Valve Spring Seat

Spring Valve Outer

Spring Valve Inner

Retainer Valve Spring

Cotter

Intake Valve

Exaust Valve

LH Cover Cylinder Head

Cylinder Head Cover Gasket

RH Cover Cylinder Head

Cylinder Head Cover Gasket Rh.

Hexagonal Flange Bolt

Flat Washer

Hex. Flange Screw M6 X 20

Valve Cover

Gasket

Cap Nut

Flat Washer

Adjusting Cap | Incl 1-23 O-Ring

Adjusting Cap | Incl 1-23 O-Ring

Flat Washer

Breather

Camshaft

Rocker Arm

Rocker Arm Shaft

Valve Gap Adjusting Nut

Rocker Arm

Timer Sprocket

Hex. Screw M5 X 12

Stud Bolt

Spark Plug

Intake Manifold

Gasket

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 25

DOWEL PIN - Call your local BRP dealership
