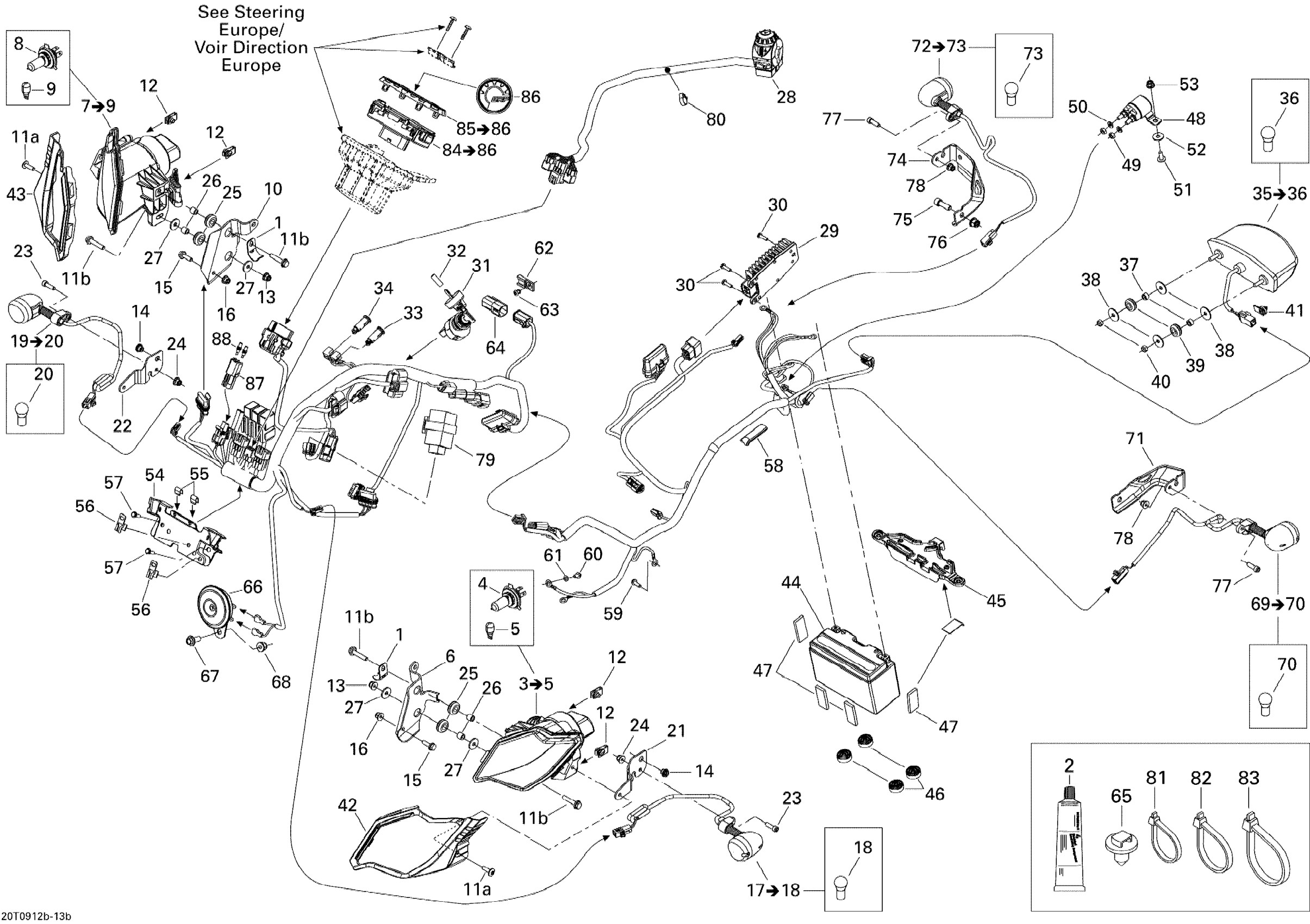

Can-Am DS 450 Xxc, Xmx EFI, 2009 10- Electrical System Europe Diagram

#

Description
Price

1

HARNESS SUPPORT - Call your local BRP dealership

710001499

Unavailable

2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

3

LH FRONT LIGHT - Call your local BRP dealership | STD, Includes 3 to 5

710001626

Unavailable

4

Bulb, 12V 35/35W

710000871

$34.99

5

BULB, 12V W5W - Call your local BRP dealership

715900060

Unavailable

6

LH FRONT SUPPORT - Call your local BRP dealership

710001763

Unavailable

7

RH FRONT LIGHT - Call your local BRP dealership | STD, Includes 7 to 9

710001627

Unavailable

8

Bulb, 12V 35/35W

710000871

$34.99

9

BULB, 12V W5W - Call your local BRP dealership

715900060

Unavailable

10

RH FRONT SUPPORT - Call your local BRP dealership

710001764

Unavailable

11a

Torx Screw M6 X 20

250000722

$1.68

11b

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

12

Panel Nut M6 X 1.0

250100198

$2.11

13

Flange Elastic Nut M6

233261434

$4.44

14

Threaded Insert M6 X 1.0

250100242

Unavailable

15

Hex. Flange Screw M6 X 20

207662034

$2.11

16

Flange Elastic Nut M6

233261434

$4.44

17

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

18

Bulb

415129258

$9.10

19

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

20

Bulb

415129258

$9.10

21

LH SUPPORT - Call your local BRP dealership

710001302

Unavailable

22

RH SUPPORT - Call your local BRP dealership

710001303

Unavailable

23

Socket Head Screw M6 X 20

205062034

Unavailable

24

Flange Elastic Nut M6

233261434

$4.44

25

Grommet

709000582

$4.69

26

Bushing

293900105

$7.65

27

Flat Washer

224061201

$1.37

28

MULTI FUNCTION SWITCH - Call your local BRP dealership

710001306

Unavailable

29

Rectifier

710000803

$82.49

30

Hex. Flange Screw, Scotch Grip

207551634

$2.00

31

Ignition Switch With Key

710002323

$86.99

32

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

33

PILOT LAMP - Call your local BRP dealership

710002526

Unavailable

34

PILOT LAMP, NEUTRAL - Call your local BRP dealership

710001012

Unavailable

35

Tail Light Ass'y | Europe Models, Includes 53 To 54

710000760

$56.99

36

Bulb

520000758

$9.10

37

SPACER - Call your local BRP dealership

293900089

Unavailable

38

FLAT WASHER - Call your local BRP dealership

250200099

Unavailable

39

Grommet

709000582

$4.69

40

Elastic Stop Nut M6

232561434

$1.99

41

HOUSING SUPPORT - Call your local BRP dealership

515175944

Unavailable

42

PROTECTOR - Call your local BRP dealership

710001310

Unavailable

43

PROTECTOR - Call your local BRP dealership

710001311

Unavailable

44

Battery 6,5A

715500305

$128.81

45

BATTERY SUPPORT - Call your local BRP dealership

710000963

Unavailable

46

Rubber Stopper

708000506

$7.55

47

RUBBER PAD - Call your local BRP dealership

293830129

Unavailable

48

Starter Relay

710007777

$48.49

49

Hex. Nut M6

232061600

$1.15

50

Lock Washer Helical M6

234161601

$1.15

51

Torx Screw M6 X 16

250000223

$2.11

52

Flat Washer

250200097

$2.11

53

Flange Elastic Nut M6

233261434

$4.44

54

Housing Support

710001074

Unavailable

55

Clip

414479100

$1.90

56

Housing Support

515175283

$9.19

57

Hex. Flange Screw, Scotch Grip

207551634

$2.00

58

Neoprene Seal (1PAC=3M)

219704364

$27.49

59

Hex. Flange Screw, Scotch Grip

207551634

$2.00

60

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

207551034

Unavailable

61

Flat Washer

234051430

$2.32

62

Clip

270000141

$11.49

63

Avex Rivet

390909200

$0.30

64

Diagnostic Connector

278002704

$19.49

65

Mount Dart

293730040

$1.04

66

Horn

710004791

$38.99

67

Hex. Flange Screw

207682034

$2.11

68

Hex. Flange Elastic Nut M8

233281434

$2.11

69

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

70

Bulb

415129258

$9.10

71

LH FLASHING LIGHT SUPPORT - Call your local BRP dealership

710001304

Unavailable

72

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

73

Bulb

415129258

$9.10

74

RH FLASHING LIGHT SUPPORT - Call your local BRP dealership

710001305

Unavailable

75

Not Available As Spare Parts

XXX

Unavailable

76

Not Available As Spare Parts

XXX

Unavailable

77

Socket Head Screw M6 X 20

205062034

Unavailable

78

Flange Elastic Nut M6

233261434

$4.44

79

FLASHER UNIT - Call your local BRP dealership

710001447

Unavailable

80

Clamp

293650082

$3.99

81

Tie Wrap 142 mm

293750002

$1.25

82

Tie-Rap 180 mm

414115200

$0.11

83

Tie Wrap 368 mm

293750008

$1.04

84

Calibrated Speedometer | Includes 16 to 17

710003288

$349.99

85

Trim Ring Ass'y

710001183

$19.99

86

BRP Logo13 mm

704904615

$13.49

87

Female Housing, 2 Circuits

278000217

$9.59

88

Wire Seal

278000216

$3.19
