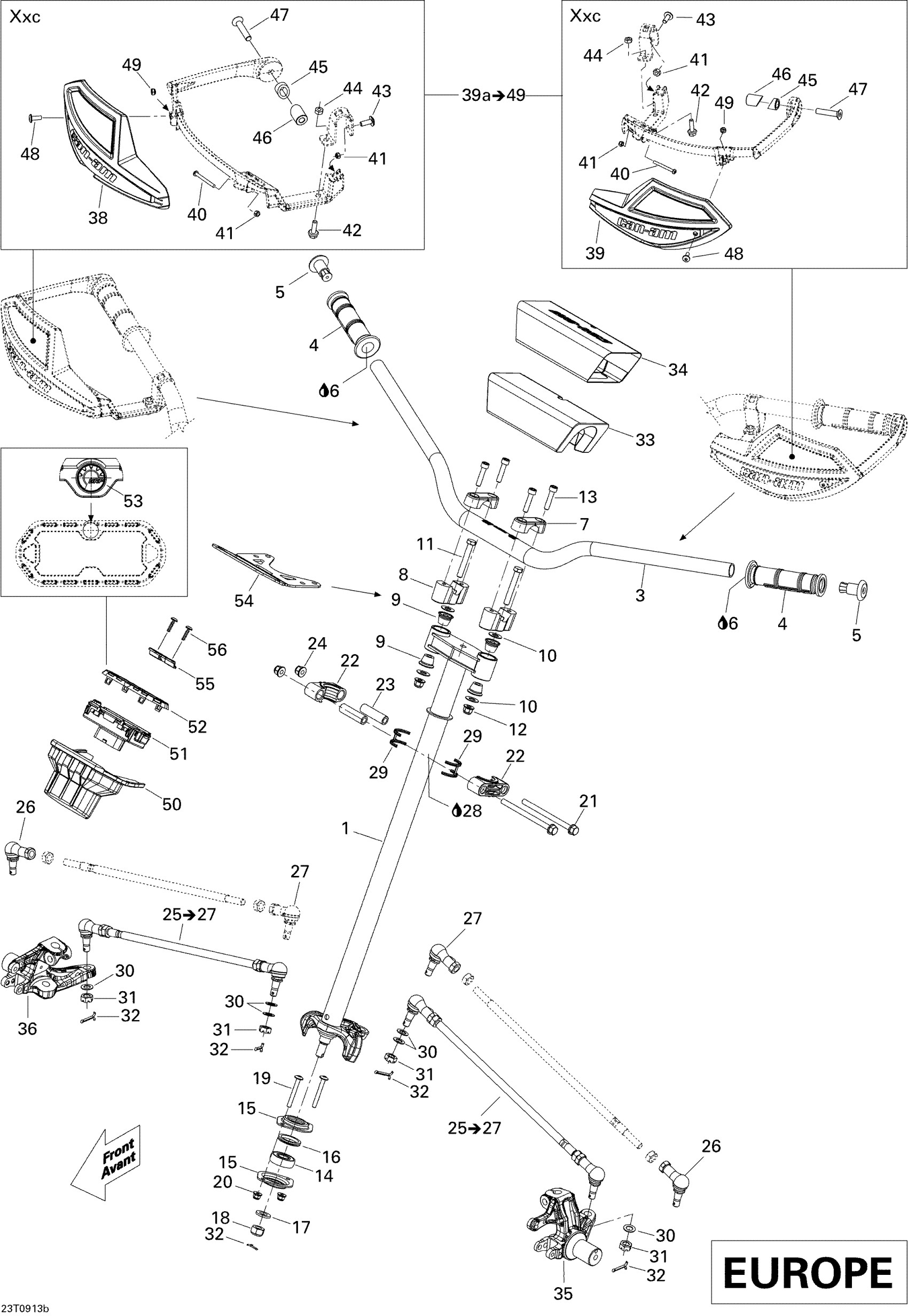

Can-Am DS 450 Xxc, Xmx EFI, 2009 07- Steering Europe Diagram

#

Description
Price

1

PAINT COLUMN - Call your local BRP dealership

709401645

Unavailable

1

STEERING COLUMN - Call your local BRP dealership | Xmx

709400805

Unavailable

3

HANDLE BAR ALUMINUM - Call your local BRP dealership

709400668

Unavailable

4

Handle Grip

709400493

$14.83

5

END PIECE - Call your local BRP dealership

709400627

Unavailable

6

Loctite 406, 7 Oz

293800100

$36.99

7

Support

709400496

$22.49

8

ALUMINUM SUPPORT - Call your local BRP dealership

709400592

Unavailable

9

DAMPER BUSHING - Call your local BRP dealership

293830131

Unavailable

10

Washer

506152194

$4.55

11

Screw Hex. M10 X 70

250001024

$2.11

12

Elastic Flange Nut M10

232501416

$1.48

13

Socket Head Screw

205083534

$2.11

14

Ball Bearing

709400439

$19.49

15

THRUST WASHER - Call your local BRP dealership

709400468

Unavailable

16

Seal

293250177

$7.29

17

Flat Washer

234021430

$2.11

18

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

250100090

Unavailable

19

Torx Screw M6 X 50

250000317

$2.11

20

Flange Elastic Nut M6

233261434

$4.44

21

Hex. Flange Screw M8 X 110

230681034

$4.44

22

Half Bushing

709400471

$14.30

23

BUSHING - Call your local BRP dealership

709400072

Unavailable

24

Hex. Flange Elastic Nut M8

233281434

$2.11

25

ROD_TIE ASSY - Call your local BRP dealership

709400352

Unavailable

25

TIE ROD ASS'Y - Call your local BRP dealership | Includes 25 to 27, Xmx

709400673

Unavailable

26

BALL JOINT - Call your local BRP dealership

715900053

Unavailable

27

BALL JOINT - Call your local BRP dealership

715900052

Unavailable

28

Synthetic Grease, 400 G

293550010

Unavailable

29

HALF-SEAL - Call your local BRP dealership

293300120

$6.69

30

Flat Washer

250200084

$3.38

31

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

32

Cotter Pin

250400034

$2.11

33

Foam

709400422

$17.49

34

Cover

709400423

$33.99

35

LH KNUCKLE - Call your local BRP dealership

709400346

Unavailable

36

RH KNUCKLE - Call your local BRP dealership

709400348

Unavailable

38

RH DEFLECTOR - Call your local BRP dealership | Xxc

709400616

Unavailable

39

LH DEFLECTOR - Call your local BRP dealership | Xxc

709400617

Unavailable

39a

Air Deflector Support Kit | X

715001378

$138.49

40

Socket Head Screw M4 X 40 | X

205444086

$1.69

41

Elastic Stop Nut M4

232541414

$0.58

42

Hex. Flange Screw M6 X 20

207662044

$2.00

43

Torx Screw M6 X 16

250000223

$2.11

44

Hex. Elastic Stop Nut M6

232561600

$1.15

45

Small Bracket | DS 650 X

709400161

$21.99

46

Large Bracket | DS 650 X

709400162

$20.99

47

Socket Head Screw | X

205384034

$6.49

48

Torx Screw M5 X 14

250000742

$1.47

49

Hex. Elastic Nut M5 | X

232551600

$1.15

50

Speedometer Cover

709400514

$16.99

51

Calibrated Speedometer | Includes 16 to 17

710003288

$349.99

52

Trim Ring Ass'y

710001183

$19.99

53

BRP Logo13 mm

704904615

$13.49

54

INDICATOR SUPPORT - Call your local BRP dealership

709400671

Unavailable

55

Latch Indicator Cover

709400573

$11.99

56

Truss Head Torx Screw K50 X 20

250000297

$2.11
