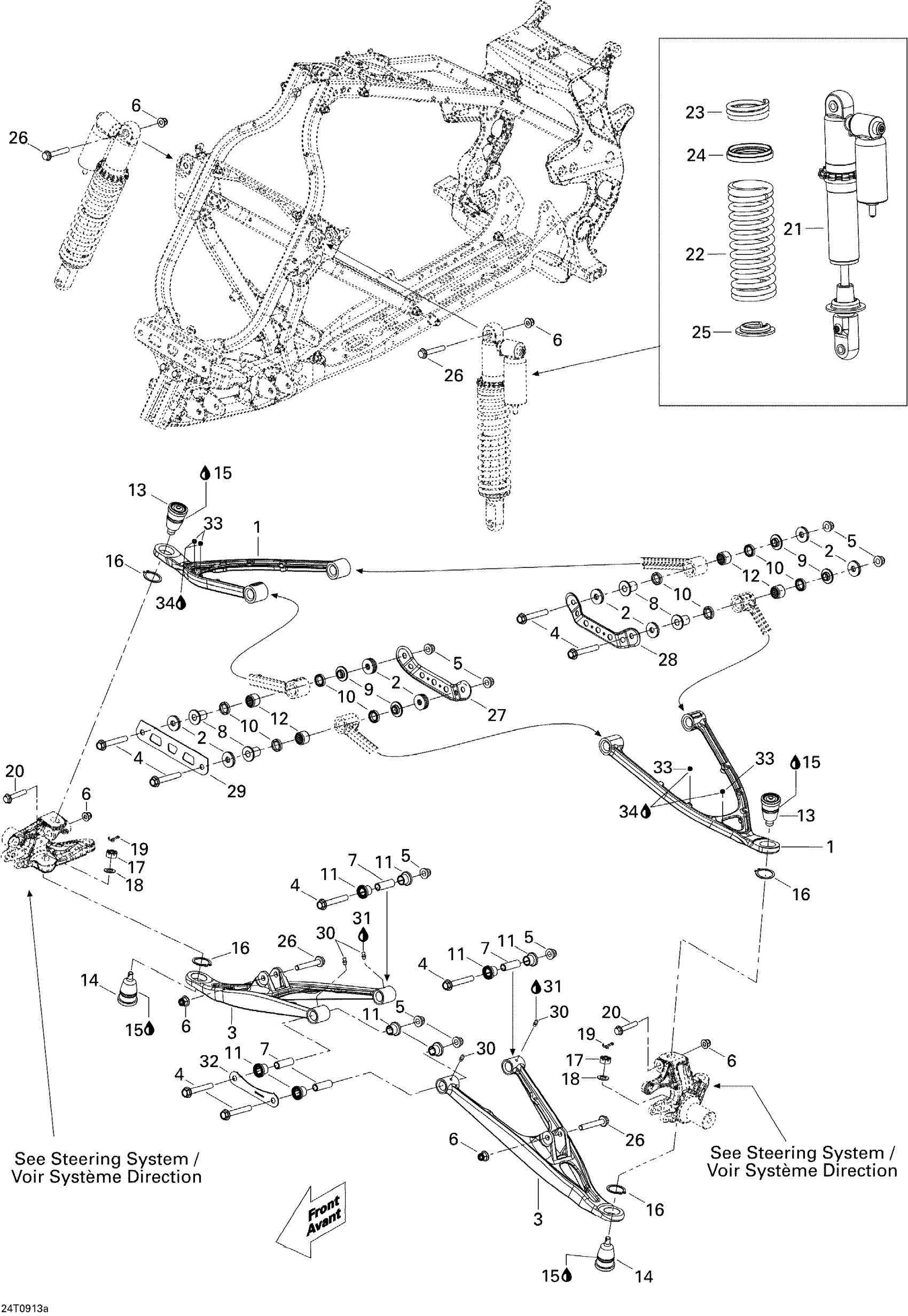

Can-Am DS 450 Xxc, Xmx EFI, 2009 07- Front Suspension Xxc Diagram

#

Description
Price

1

UPPER ARM - Call your local BRP dealership

706200864

Unavailable

2

Flat Washer M10 | 4X4

250200014

$1.49

3

LOWER ARM - Call your local BRP dealership

706200456

Unavailable

4

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207607036

Unavailable

5

Hex. Flange Elastic Nut M10

233201436

$2.11

6

Hex. Flange Elastic Nut M10

233201434

$2.09

7

Sleeve

706201587

$3.79

8

Inner Bushing

706200888

$17.08

9

INNER BUSHING - Call your local BRP dealership

706200889

Unavailable

10

SEAL - Call your local BRP dealership

293200120

Unavailable

11

Bushing

706200181

$3.14

12

Needle Bearing

293350064

$23.49

13

UPPER BALL JOINT - Call your local BRP dealership

706200462

Unavailable

14

LOWER BALL JOINT - Call your local BRP dealership

706200461

Unavailable

15

Loctite 609, 10 ml

413703100

$26.99

16

Circlip 32 mm

293370009

$1.39

17

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

18

Flat Washer

250200084

$3.38

19

Cotter Pin

250400035

$2.11

20

Hex. Flange Screw

207605534

$2.11

21

FRONT SHOCK - Call your local BRP dealership

706200836

Unavailable

22

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706200830

Unavailable

23

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706200873

Unavailable

24

Spring Spacer

503191281

$8.89

25

SPRING STOPPER - Call your local BRP dealership

706000528

Unavailable

26

HEX. FLANGED SCREW M10 X 65 - Call your local BRP dealership

207606534

Unavailable

27

FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership

706200532

Unavailable

28

FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership

706200532

Unavailable

29

Plate

706200759

Unavailable

30

Grease Fitting

250000315

$5.82

31

Synthetic Grease, 400 G

293550010

Unavailable

32

Front Suspension Lower Plate

706200722

Unavailable

33

Socket Set Screw M6 X 6

206260699

$3.70

34

Loctite 243, 10 ml

293800060

$21.49
