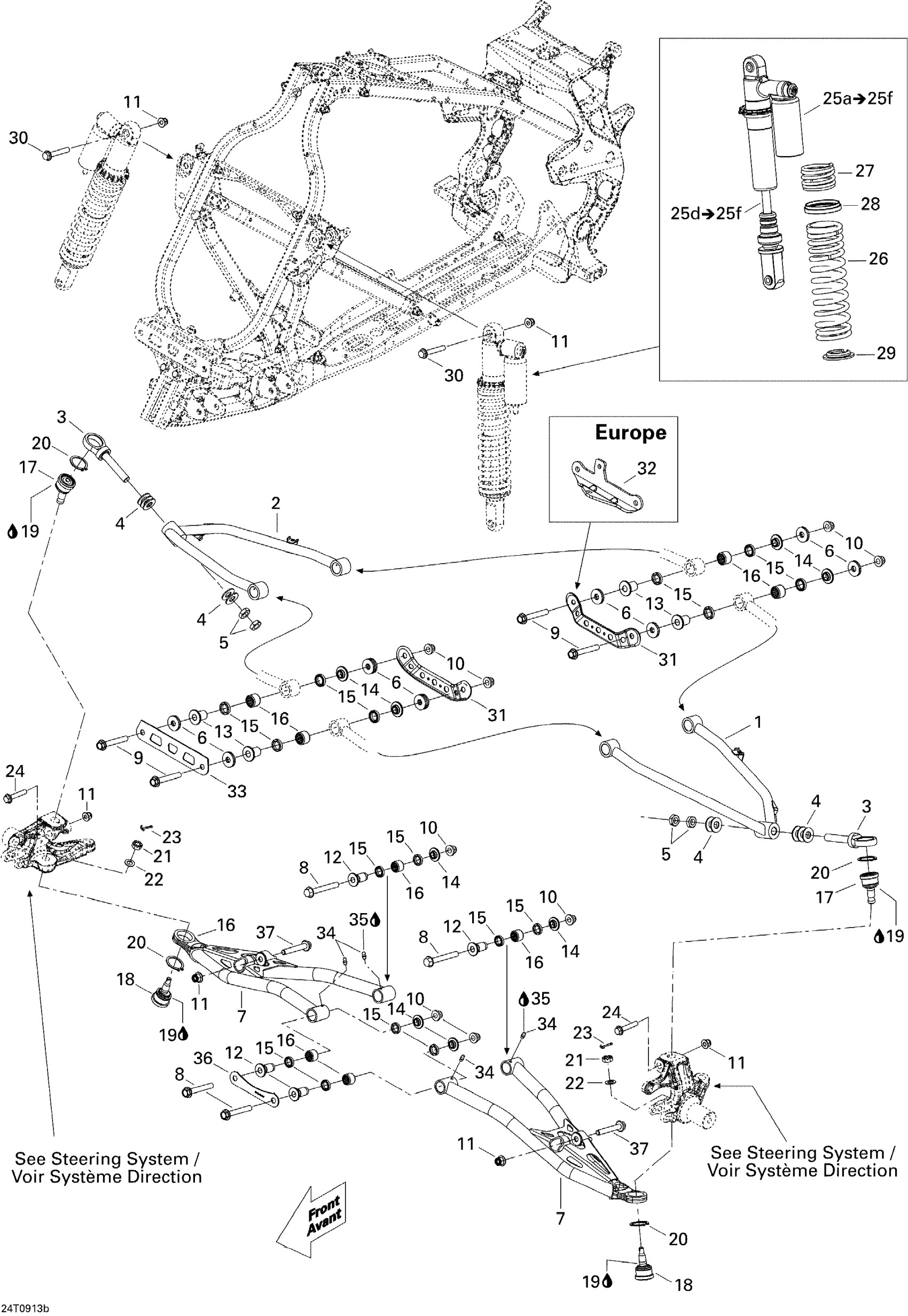

Can-Am DS 450 Xxc, Xmx EFI, 2009 07- Front Suspension Xmx Diagram

#

Description
Price

1

LH UPPER ARM - Call your local BRP dealership

706201128

Unavailable

2

RH UPPER ARM - Call your local BRP dealership

706201134

Unavailable

3

JOINT SUPPORT - Call your local BRP dealership

706201390

Unavailable

4

FLAT WASHER - Call your local BRP dealership

250200079

Unavailable

5

Hex. Jam Nut M14

232170411

$1.48

6

Flat Washer M10 | 4X4

250200014

$1.49

7

LOWER ARM - Call your local BRP dealership

706201398

Unavailable

8

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207607036

Unavailable

9

HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership

207608044

Unavailable

10

Hex. Flange Elastic Nut M10

233201436

$2.11

11

Hex. Flange Elastic Nut M10

233201434

$2.09

12

INNER BUSHING - Call your local BRP dealership

706200890

Unavailable

13

Inner Bushing

706200888

$17.08

14

INNER BUSHING - Call your local BRP dealership

706200889

Unavailable

15

SEAL - Call your local BRP dealership

293200120

Unavailable

16

Needle Bearing

293350064

$23.49

17

UPPER BALL JOINT - Call your local BRP dealership

706200462

Unavailable

18

LOWER BALL JOINT - Call your local BRP dealership

706200461

Unavailable

19

Loctite 609, 10 ml

413703100

$26.99

20

Circlip 32 mm

293370009

$1.39

21

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

22

Flat Washer

250200084

$3.38

23

Cotter Pin

250400035

$2.11

24

Hex. Flange Screw

207605534

$2.11

25a

FRONT SHOCK - Call your local BRP dealership | Includes 25a to 25f

706200765

Unavailable

25b

Spring Stopper

706000567

$15.99

25c

SHOCK OIL, 1 LITER - Call your local BRP dealership

293600136

Unavailable

25d

Front Piston And Rod Kit | Includes 25d to 25f

715500330

Unavailable

25e

Circlip

715900074

$4.97

25f

Circlip En C

715900075

$4.97

26

Black-Yellow Spring

706200833

Unavailable

27

Black-Yellow Spring

706200876

Unavailable

28

Spring Spacer

503191281

$8.89

29

SPRING STOPPER - Call your local BRP dealership

706000528

Unavailable

30

HEX. FLANGED SCREW M10 X 65 - Call your local BRP dealership

207606534

Unavailable

31

FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership

706200532

Unavailable

32

SUPPORT - Call your local BRP dealership | Europe

709400685

Unavailable

33

Plate

706200759

Unavailable

34

Grease Fitting

250000315

$5.82

35

Synthetic Grease, 400 G

293550010

Unavailable

36

Front Suspension Lower Plate

706200722

Unavailable

37

Hex. Flange Screw

207605534

$2.11
