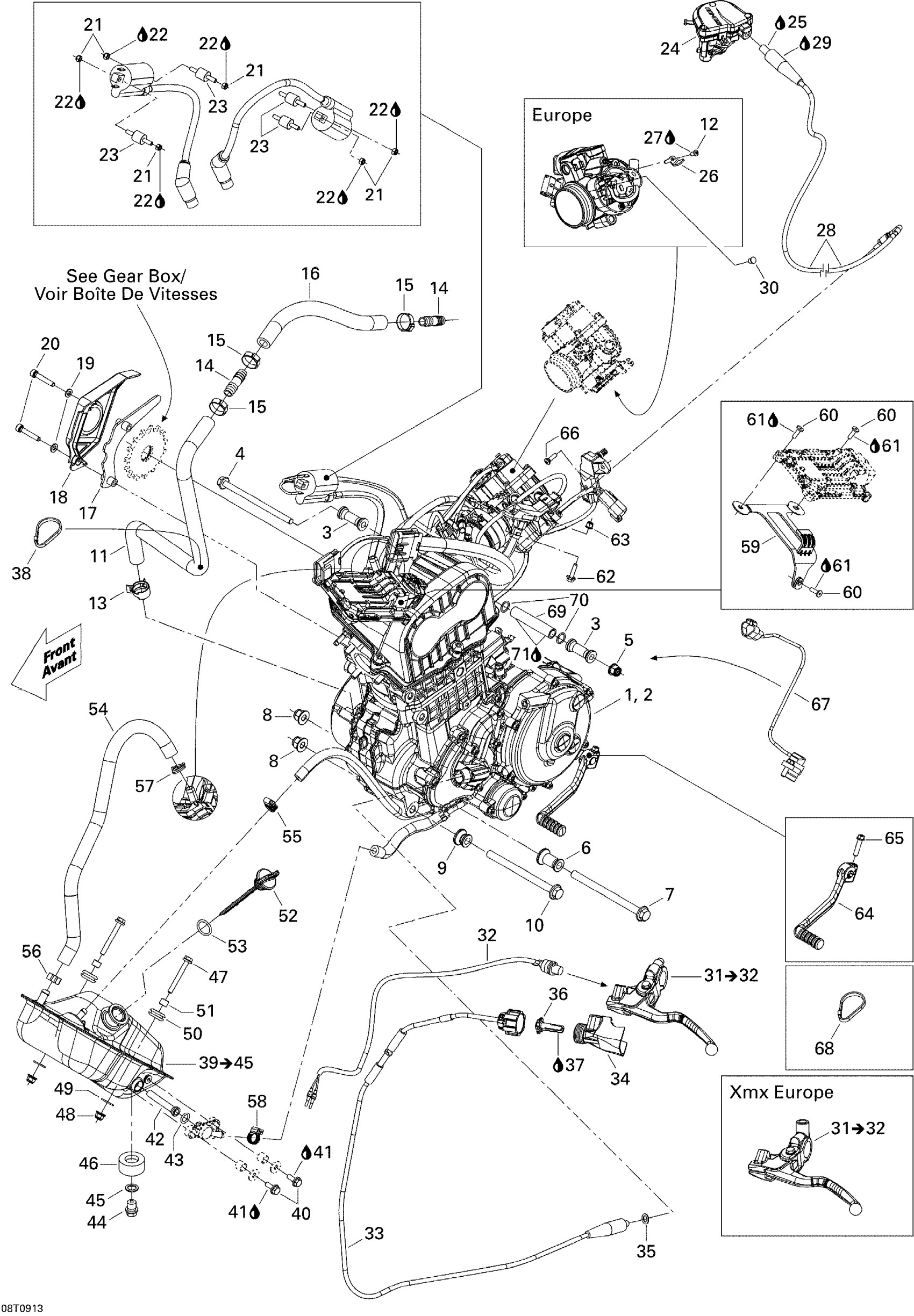

Can-Am DS 450 Xxc, Xmx EFI, 2009 01- Engine Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

LONG BLOCK, 449 EFI ENGINE - Call your local BRP dealership

420044902

Unavailable

3

SPACER - Call your local BRP dealership

293900071

Unavailable

4

Hex. Flange Screw M8 X 130

230683034

$7.51

5

Hex. Flange Elastic Nut M8

233281434

$2.11

6

SPACER - Call your local BRP dealership

293900072

Unavailable

7

HEX. FLANGED SCREW M10 X 135 - Call your local BRP dealership

230603536

Unavailable

8

Hex. Flange Elastic Nut M10

233201434

$2.09

9

SPACER - Call your local BRP dealership

293900074

Unavailable

10

HEX. FLANGED SCREW M10 X 130 - Call your local BRP dealership

230603036

Unavailable

11

Hose

707000502

$21.99

12

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

13

Norma Clamp

293650110

$4.54

14

CONNECTOR - Call your local BRP dealership

293710119

Unavailable

15

Oetiker Clamp

293650012

$7.49

16

HOSE 12 MM - Call your local BRP dealership

707000537

Unavailable

17

CHAIN GUARD - Call your local BRP dealership

707000464

Unavailable

17

CHAIN GUARD - Call your local BRP dealership

707000701

Unavailable

18

SPROCKET COVER - Call your local BRP dealership

707000425

Unavailable

19

Flat Washer M6

234061430

$2.11

20

SOCKET HEAD SCREW M6 X 35, SCOTCH GRIP - Call your local BRP dealership

205563536

Unavailable

21

Elastic Stop Nut M5

232551414

$0.87

22

Loctite 243, 10 ml

293800060

$21.49

23

Rubber Mount

707000746

$9.19

24

THROTTLE HANDLE - Call your local BRP dealership

707000440

Unavailable

25

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

26

Speed Limiter

707000624

Unavailable

27

Loctite 243, 10 ml

293800060

$21.49

28

THROTTLE CABLE - Call your local BRP dealership

707000439

Unavailable

29

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

30

Cable Guide

707000434

$11.60

31

HANDLE LEVER ASS'Y - Call your local BRP dealership | Includes 30 to 31

707000469

Unavailable

32

LEVER SHIFTER SWITCH - Call your local BRP dealership

707000183

Unavailable

33

Clutch Cable

707000422

$51.99

34

BOOT - Call your local BRP dealership

293830122

$14.99

35

Washer

504082900

$2.64

36

SCREW - Call your local BRP dealership

707000602

Unavailable

37

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

38

Tie-Rap 180 mm

414115200

$0.11

39

OIL TANK ASS'Y - Call your local BRP dealership | Includes 40 to 46

707000806

Unavailable

40

Hex. Flange Screw M6 X 20

207662034

$2.11

41

Loctite 243, 10 ml

293800060

$21.49

42

STRAINER - Call your local BRP dealership

519000144

Unavailable

43

O-Ring

293300128

$6.35

44

Plug

250500010

$61.49

45

Copper Washer

250200061

$2.61

46

RUBBER STOPPER - Call your local BRP dealership

705001678

Unavailable

47

HEX. FLANGED SCREW M6 X 50 - Call your local BRP dealership

207665034

Unavailable

48

Flange Elastic Nut M6

233261434

$4.44

49

Flat Washer

250200082

$0.42

50

Grommet

293720062

$5.39

51

SPACER - Call your local BRP dealership

293900089

Unavailable

52

Oil Cap

707000526

$13.75

53

O-Ring

709000089

$15.89

54

HOSE - Call your local BRP dealership

707000544

Unavailable

55

Tridon Gear Clamp

293650171

$3.09

56

Oetiker Clamp

293650011

$3.09

57

ROTOCLIP CLAMP - Call your local BRP dealership

293650180

Unavailable

58

Tridon Gear Clamp

293650171

$3.09

59

MODULE SUPPORT - Call your local BRP dealership

710000972

Unavailable

60

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

250000295

Unavailable

61

Loctite 243, 10 ml

293800060

$21.49

62

HEX. FLANGED SCREW M5 X 20 - Call your local BRP dealership

207652034

$1.99

63

Flange Elastic Nut M5

233251434

$2.00

64

Gearshift Pedal

420248540

$94.49

65

Torx Flange Screw M6 X 25

420440234

$3.06

66

Torx Screw K50 X 16

250000720

$1.69

67

Speed Sensor

420265723

$109.99

68

Tie Wrap 142 mm

293750002

$1.25

69

SPACER - Call your local BRP dealership

293900093

Unavailable

70

O-Ring

709000089

$15.89

71

Sealant Loctite 648

219703000

$45.99
