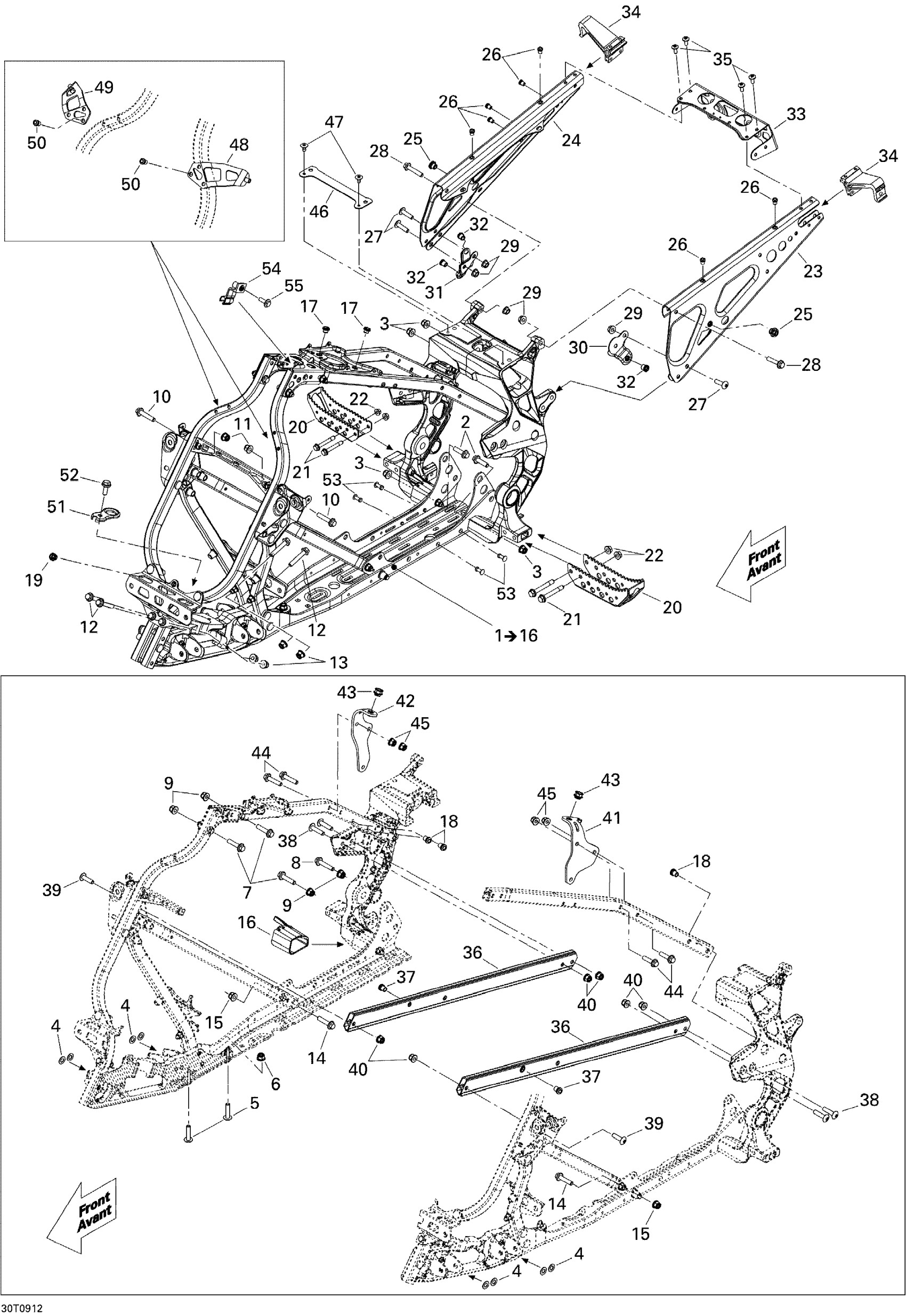

Can-Am DS 450 EFI, 2009 09- Frame Diagram

#

Description
Price

1

Frame Ass'y

705201043

Unavailable

2

Hex. Flange Screw M8 X 30

207683034

$4.44

3

Hex. Flange Elastic Nut M8

233281434

$2.11

4

Washer

506151252

$3.17

5

TORX TRUSS SCREW M8 X 35 - Call your local BRP dealership

250000316

Unavailable

6

Hex. Flange Elastic Nut M8

233281434

$2.11

7

Hex. Flange Screw M8 X 35

207683534

$2.11

8

Hex. Flange Screw M8 X 40

207684034

$2.11

9

Hex. Flange Elastic Nut M8

233281434

$2.11

10

Hex. Flange Screw M8 X 40

207684034

$2.11

11

Hex. Flange Elastic Nut M8

233281434

$2.11

12

HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership

207684534

Unavailable

13

Hex. Flange Elastic Nut M8

233281434

$2.11

14

Hex. Flange Screw M8 X 35

207683534

$2.11

15

Hex. Flange Elastic Nut M8

233281434

$2.11

16

GUARD - Call your local BRP dealership

705500931

Unavailable

17

Threaded Insert M6 X 1.0

250100242

Unavailable

18

Insert M5 X 0.8

293450268

$2.09

19

Insert

293450275

$12.99

20

FOOTREST - Call your local BRP dealership

705201044

Unavailable

21

HEX. FLANGED SCREW M8 X 60, SCOTCH GRIP - Call your local BRP dealership

207586034

Unavailable

22

Hex. Flange Nut M8

233181434

$2.11

23

EXTENTION - Call your local BRP dealership

705202547

Unavailable

24

EXTENTION - Call your local BRP dealership

705202548

Unavailable

25

Threaded Insert M6 X 1.0

250100242

Unavailable

26

Insert M5 X 0.8

293450268

$2.09

27

Hex Torx Truss M8 X30

250000745

$3.17

28

Hex. Flange Screw M8 X 40

207684034

$2.11

29

Hex. Flange Nut M8

233181434

$2.11

30

LH Bracket

707600399

Unavailable

31

RH Bracket

705201485

Unavailable

32

Insert

293450275

$12.99

33

PLATE SUPPORT - Call your local BRP dealership

705201898

Unavailable

34

REAR FENDER SUPPORT - Call your local BRP dealership

705002094

Unavailable

35

Torx Screw M6 X 16

250000223

$2.11

36

Side Member

705201950

$78.99

37

Insert

293450275

$12.99

38

Torx Truss Screw M8 X 35

250000256

$1.15

39

Hex Torx Truss M8 X30

250000745

$3.17

40

Hex. Flange Elastic Nut M8

233281434

$2.11

41

LH ENGINE SUPPORT - Call your local BRP dealership

705201380

Unavailable

42

RH ENGINE SUPPORT - Call your local BRP dealership

705201381

Unavailable

43

Insert

293450278

$4.49

44

Hex. Flange Screw M8 X 35

207683534

$2.11

45

Hex. Flange Elastic Nut M8

233281434

$2.11

46

REAR BRACE - Call your local BRP dealership

705201406

Unavailable

47

Pop Rivet 3/16"

293150008

$0.50

48

LH BODY ATTACHMENT PLATE - Call your local BRP dealership

705201461

Unavailable

49

RH BODY ATTACHMENT PLATE - Call your local BRP dealership

705201462

Unavailable

50

Insert M5 X 0.8

293450268

$2.09

51

RADIATOR GUIDE - Call your local BRP dealership

705201550

Unavailable

52

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

53

Pop Rivet 3/16”

390407200

$0.70

54

Cable Support

707000561

Unavailable

55

Hex. Plastic Screw M4.8 X 16

243141630

$2.11
