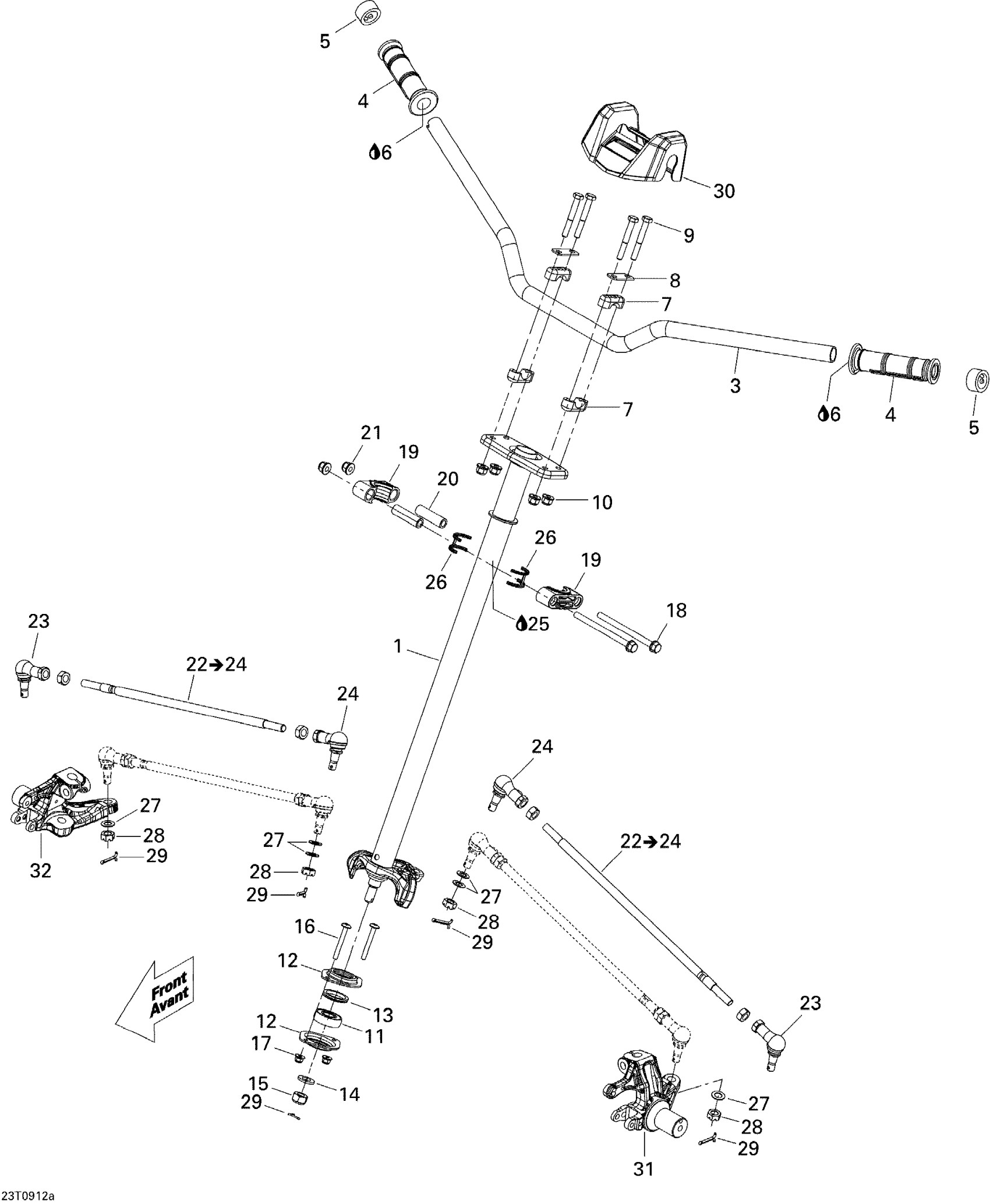

Can-Am DS 450 EFI, 2009 07- Steering Diagram

#

Description
Price

1

STEERING COLUMN - Call your local BRP dealership

709400802

Unavailable

3

HANDLE BAR - Call your local BRP dealership

709400369

Unavailable

4

Handle Grip

709400493

$14.83

5

END PIECE - Call your local BRP dealership

709400627

Unavailable

6

Loctite 406, 7 Oz

293800100

$36.99

7

Steering Support

709400919

$22.49

8

Stiffner

709400509

$4.69

9

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

207086034

Unavailable

10

Hex. Flange Elastic Nut M8

233281434

$2.11

11

Ball Bearing

709400439

$19.49

12

THRUST WASHER - Call your local BRP dealership

709400468

Unavailable

13

Seal

293250177

$7.29

14

Flat Washer

234021430

$2.11

15

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

250100090

Unavailable

16

Torx Screw M6 X 50

250000317

$2.11

17

Flange Elastic Nut M6

233261434

$4.44

18

Hex. Flange Screw M8 X 110

230681034

$4.44

19

Half Bushing

709400471

$14.30

20

BUSHING - Call your local BRP dealership

709400072

Unavailable

21

Hex. Flange Elastic Nut M8

233281434

$2.11

22

ROD_TIE ASSY - Call your local BRP dealership

709400352

Unavailable

23

BALL JOINT - Call your local BRP dealership

715900053

Unavailable

24

BALL JOINT - Call your local BRP dealership

715900052

Unavailable

25

Synthetic Grease, 400 G

293550010

Unavailable

26

HALF-SEAL - Call your local BRP dealership

293300120

$6.69

27

Flat Washer

250200084

$3.38

28

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

29

Cotter Pin

250400034

$2.11

30

STEERING COVER - Call your local BRP dealership

709400452

Unavailable

31

LH KNUCKLE - Call your local BRP dealership

709400346

Unavailable

32

RH KNUCKLE - Call your local BRP dealership

709400348

Unavailable
