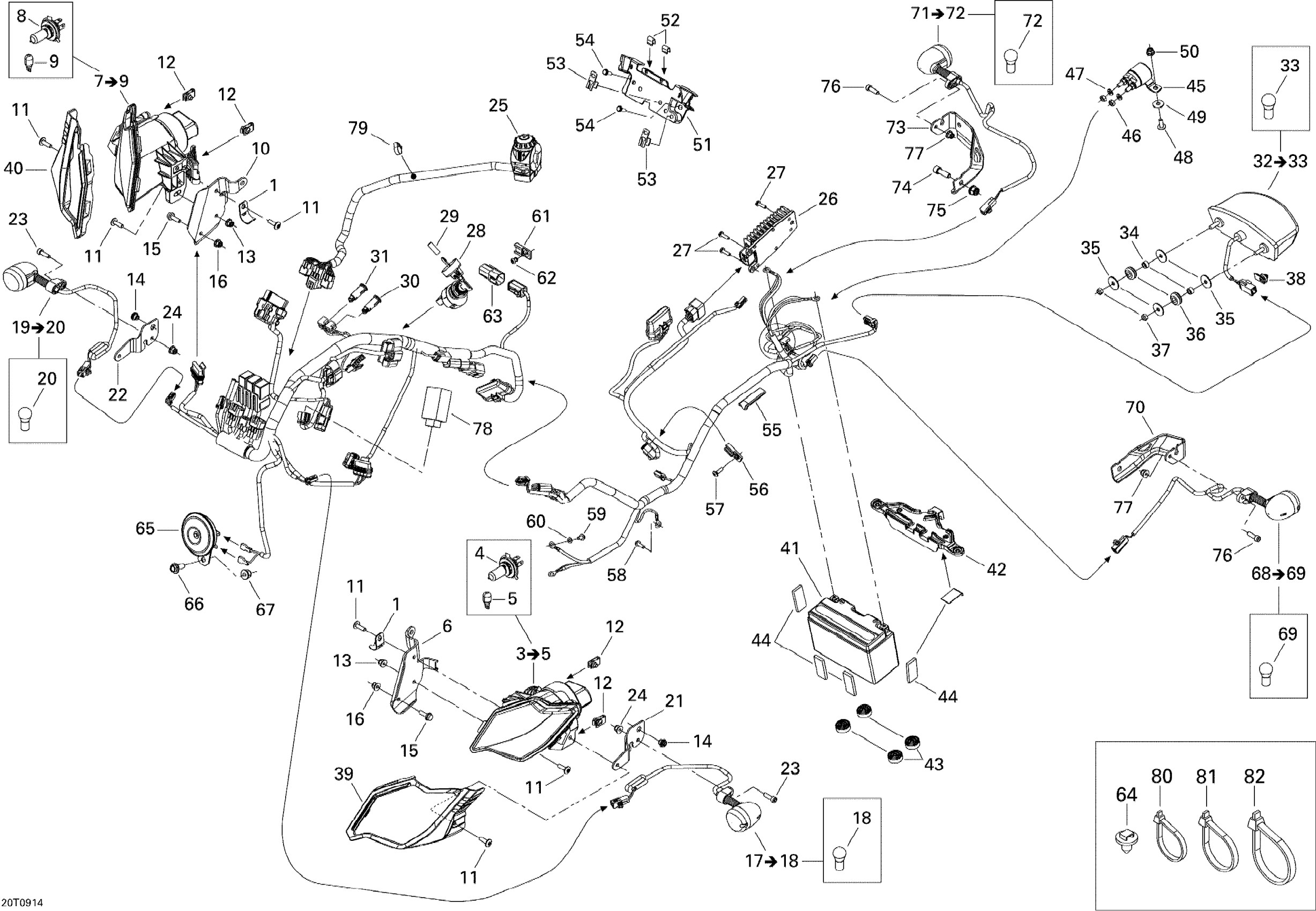

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 10- Electrical System Diagram

#

Description
Price

1

HARNESS SUPPORT - Call your local BRP dealership

710001499

Unavailable

2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

3

LH FRONT LIGHT - Call your local BRP dealership | STD, Includes 3 to 5

710001626

Unavailable

4

Bulb, 12V 35/35W

710000871

$34.99

5

BULB, 12V W5W - Call your local BRP dealership

715900060

Unavailable

6

LH Front Support

710001308

Unavailable

7

RH FRONT LIGHT - Call your local BRP dealership | STD, Includes 7 to 9

710001627

Unavailable

8

Bulb, 12V 35/35W

710000871

$34.99

9

BULB, 12V W5W - Call your local BRP dealership

715900060

Unavailable

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

11

Torx Screw M6 X 20

250000722

$1.68

12

Panel Nut M6 X 1.0

250100198

$2.11

13

Flange Elastic Nut M6

233261434

$4.44

14

Threaded Insert M6 X 1.0

250100242

Unavailable

15

Hex. Flange Screw M6 X 20

207662034

$2.11

16

Flange Elastic Nut M6

233261434

$4.44

17

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

18

Bulb

415129258

$9.10

19

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

20

Bulb

415129258

$9.10

21

LH SUPPORT - Call your local BRP dealership

710001302

Unavailable

22

RH SUPPORT - Call your local BRP dealership

710001303

Unavailable

23

Socket Head Screw M6 X 20

205062034

Unavailable

24

Flange Elastic Nut M6

233261434

$4.44

25

MULTI FUNCTION SWITCH - Call your local BRP dealership

710001306

Unavailable

26

Rectifier

710000803

$82.49

27

Hex. Flange Screw, Scotch Grip

207551634

$2.00

28

Ignition Switch With Key

710002323

$86.99

29

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

30

PILOT LAMP - Call your local BRP dealership

710002526

Unavailable

31

PILOT LAMP, NEUTRAL - Call your local BRP dealership

710001012

Unavailable

32

Tail Light Ass'y | Europe Models, Includes 53 To 54

710000760

$56.99

33

Bulb

520000758

$9.10

34

SPACER - Call your local BRP dealership

293900089

Unavailable

35

FLAT WASHER - Call your local BRP dealership

250200099

Unavailable

36

Grommet

709000582

$4.69

37

Elastic Stop Nut M6

232561434

$1.99

38

HOUSING SUPPORT - Call your local BRP dealership

515175944

Unavailable

39

PROTECTOR - Call your local BRP dealership

710001310

Unavailable

40

PROTECTOR - Call your local BRP dealership

710001311

Unavailable

41

Battery 6,5A

715500305

$128.81

42

BATTERY SUPPORT - Call your local BRP dealership

710000963

Unavailable

43

Rubber Stopper

708000506

$7.55

44

RUBBER PAD - Call your local BRP dealership

293830129

Unavailable

45

Starter Relay

710007777

$48.49

46

Hex. Nut M6

232061600

$1.15

47

Lock Washer Helical M6

234161601

$1.15

48

Torx Screw M6 X 16

250000223

$2.11

49

Flat Washer

250200097

$2.11

50

Flange Elastic Nut M6

233261434

$4.44

51

Housing Support

710001074

Unavailable

52

Clip

414479100

$1.90

53

Housing Support

515175283

$9.19

54

Hex. Flange Screw, Scotch Grip

207551634

$2.00

55

Neoprene Seal (1PAC=3M)

219704364

$27.49

56

Clip

515175821

$10.99

57

Torx Screw K50 X 16

250000720

$1.69

58

Hex. Flange Screw, Scotch Grip

207551634

$2.00

59

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

207551034

Unavailable

60

Flat Washer

234051430

$2.32

61

Clip

270000141

$11.49

62

Avex Rivet

390909200

$0.30

63

Diagnostic Connector

278002704

$19.49

64

Mount Dart

293730040

$1.04

65

Horn

710004791

$38.99

66

Hex. Flange Screw

207682034

$2.11

67

Hex. Flange Elastic Nut M8

233281434

$2.11

68

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

69

Bulb

415129258

$9.10

70

LH FLASHING LIGHT SUPPORT - Call your local BRP dealership

710001304

Unavailable

71

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

72

Bulb

415129258

$9.10

73

RH FLASHING LIGHT SUPPORT - Call your local BRP dealership

710001305

Unavailable

74

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205082534

Unavailable

75

Hex. Flange Elastic Nut M8

233281434

$2.11

76

Socket Head Screw M6 X 20

205062034

Unavailable

77

Flange Elastic Nut M6

233261434

$4.44

78

FLASHER UNIT - Call your local BRP dealership

710001447

Unavailable

79

Clamp

293650082

$3.99

80

Tie Wrap 142 mm

293750002

$1.25

81

Tie-Rap 180 mm

414115200

$0.11

82

Tie Wrap 368 mm

293750008

$1.04
